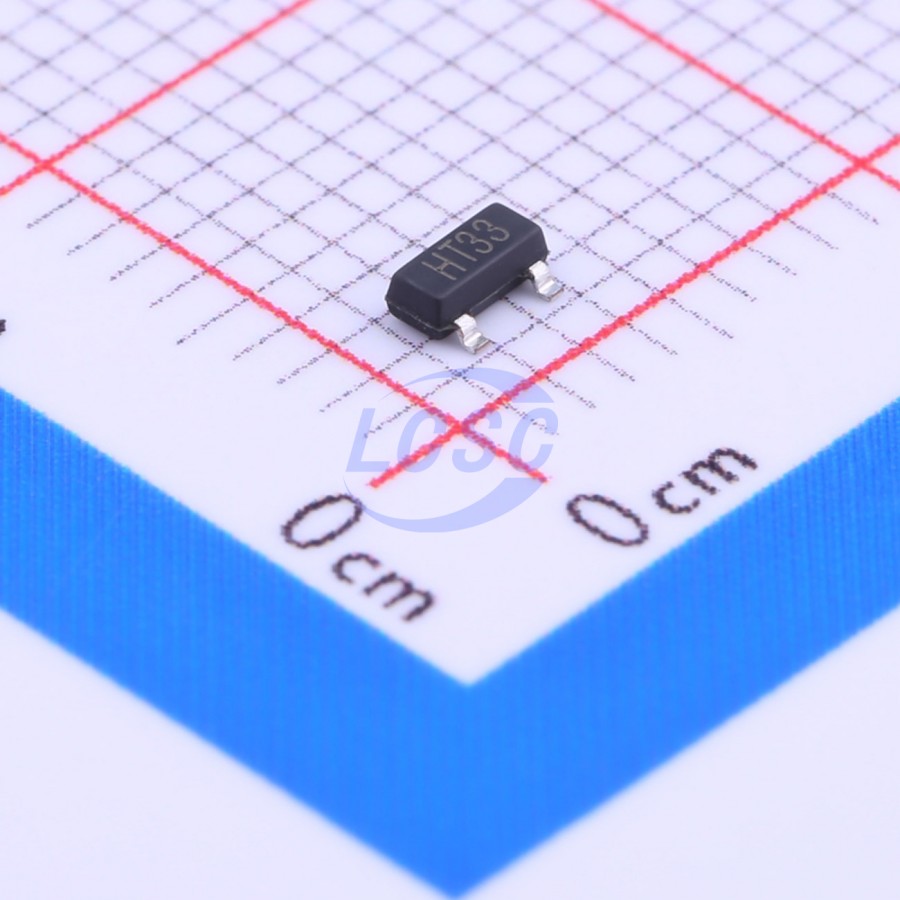

H7133-1
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
50mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7133-1
- Store part #
- C277537
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,390 in stock
#C277537
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.92 | ₹79.20 |
| 100+ | ₹6.24 | ₹624.00 |
| 300+ | ₹5.40 | ₹1,620.00 |
| 3,000+ | ₹4.71 | ₹14,130.00 |
| 6,000+ | ₹4.21 | ₹25,260.00 |
| 9,000+ | ₹3.96 | ₹35,640.00 |
10 × ₹7.92
₹79.20
excl. GST
₹93.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
H7133-1
₹79.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 50mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
A set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 18V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
Applications
- Battery-powered equipment
- Audio/Video equipment
- Communication equipment
Key features
- Low power consumption
- High input voltage (up to 15V)
- Low voltage drop
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
- TO92, SOT89 and SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP6202P332MR#C330935Siproin · SOT-23 | Siproin | SOT-23 | 530 | ₹17.00 · 530 in stock | View |
 | H7333-A#C277577Siproin · SOT-23 | Siproin | SOT-23 | 8,875 | ₹12.21 · 8,875 in stock | View |
 | H7533-1#C277556Siproin · SOT-23 | Siproin | SOT-23 | 1,510 | ₹8.86 · 1,510 in stock | View |
 | SSP7935P33MR#C2758013Siproin · SOT-23 | Siproin | SOT-23 | 3,215 | ₹13.89 · 3,215 in stock | View |
 | SSP7901P33MR#C7424770Siproin · SOT23-3 | Siproin | SOT23-3 | 2,780 | ₹15.96 · 2,780 in stock | View |
