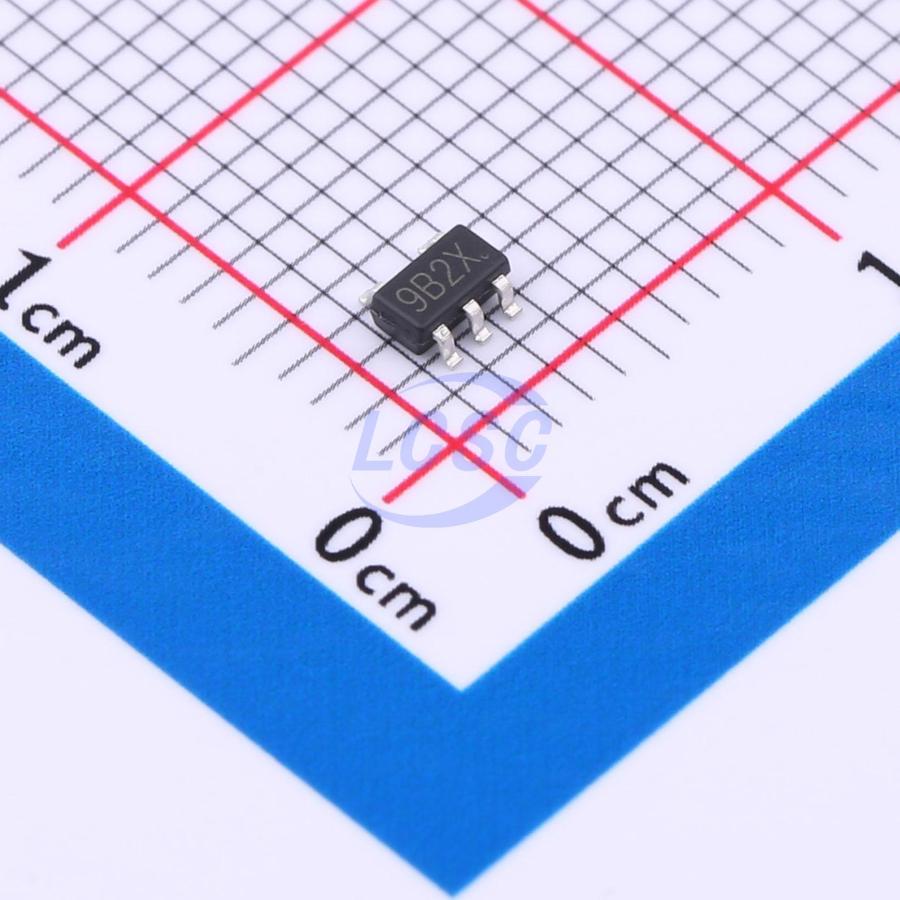

H7233-1M5R
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
400mA Current、15V Input Voltage LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7233-1M5R
- Store part #
- C2965594
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,635 in stock
#C2965594
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.50 | ₹62.50 |
| 50+ | ₹10.98 | ₹549.00 |
| 150+ | ₹10.23 | ₹1,534.50 |
| 500+ | ₹9.66 | ₹4,830.00 |
| 3,000+ | ₹8.81 | ₹26,430.00 |
| 6,000+ | ₹8.59 | ₹51,540.00 |
5 × ₹12.50
₹62.50
excl. GST
₹73.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
H7233-1M5R
₹62.50 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 400mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The H72XX-1 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The H72XX-1 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89-3, SOT23-3 and SOT23-5 packages are available.
Applications
- Battery-powered equipment
- Hand-Hold Equipment
- GRS Receivers
- Wireless LAN
Key features
- Low voltage drop: 0.17V@100mA
- Low Quiescent Current: 1.0uA
- High input voltage: 15V
- Low temperature coefficient
- Large Output Current: >0.40A
- Output voltage accuracy: tolerance ±2%
- Built-in current limiter
- SOT89, SOT23-3 and SOT23-5 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7603P33M5R#C411031Siproin · SOT-23-5 | Siproin | SOT-23-5 | 22,395 | ₹16.75 · 22,395 in stock | View |
