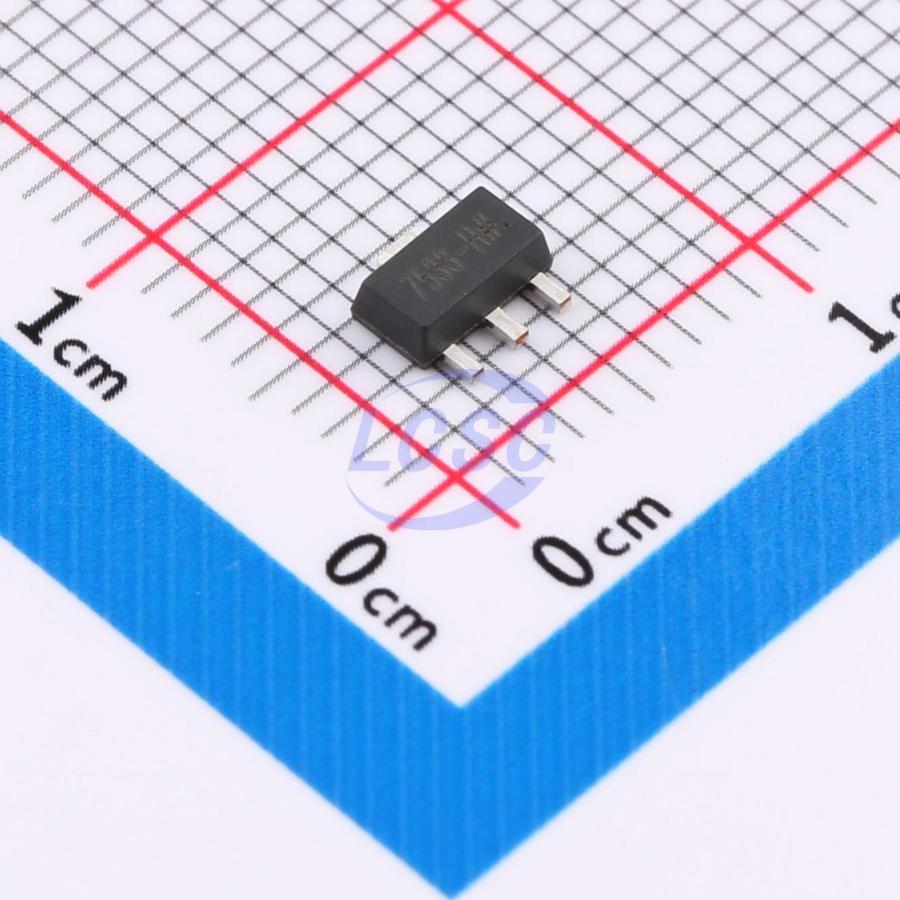

H7533-H#
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
100mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7533-H#
- Store part #
- C277865
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,735 in stock
#C277865
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.79 | ₹88.95 |
| 50+ | ₹14.04 | ₹702.00 |
| 150+ | ₹12.17 | ₹1,825.50 |
| 1,000+ | ₹10.61 | ₹10,610.00 |
| 2,000+ | ₹9.49 | ₹18,980.00 |
| 5,000+ | ₹8.93 | ₹44,650.00 |
5 × ₹17.79
₹88.95
excl. GST
₹104.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
H7533-H#
₹88.95 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 4.2uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 100mA
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
The H75XX-H# series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 40V. They are available with several fixed output voltages ranging from 1.8V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
Applications
- Battery-powered equipment
- Communication equipment
Key features
- Quiescent Current: 4.2uA@12V
- PSRR: 60dB@100Hz
- Voltage drop: 600mV@100mA
- ESD HBM: 8KV
- High input voltage (up to 40V)
- Output voltage accuracy: tolerance ±2%
- Output current: 100mA(Typ.)
- TO92, SOT89 and SOT23-3 package
