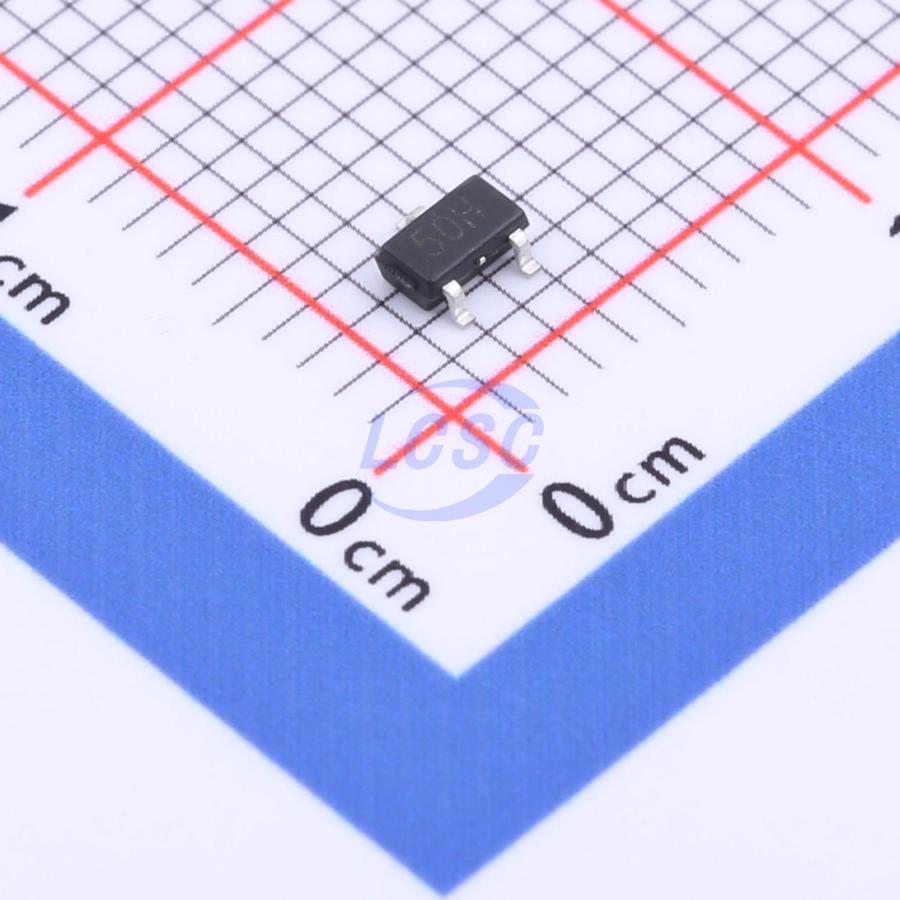

H7550-2MR
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
200mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7550-2MR
- Store part #
- C2845066
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,585 in stock
#C2845066
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.47 | ₹82.35 |
| 50+ | ₹13.04 | ₹652.00 |
| 150+ | ₹11.32 | ₹1,698.00 |
| 500+ | ₹10.04 | ₹5,020.00 |
| 3,000+ | ₹8.93 | ₹26,790.00 |
| 6,000+ | ₹8.41 | ₹50,460.00 |
5 × ₹16.47
₹82.35
excl. GST
₹97.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
H7550-2MR
₹82.35 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 35V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The H75XX-2 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 35V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
Applications
- Battery-powered equipment
- Communication equipment
- Audio/Video equipment
Key features
- Low power consumption
- High input voltage (up to 35V)
- Low voltage drop
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
- TO92, SOT89 and SOT23-3 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7901P50MR#C7424771Siproin · SOT23-3 | Siproin | SOT23-3 | 1,130 | ₹15.96 · 1,130 in stock | View |
