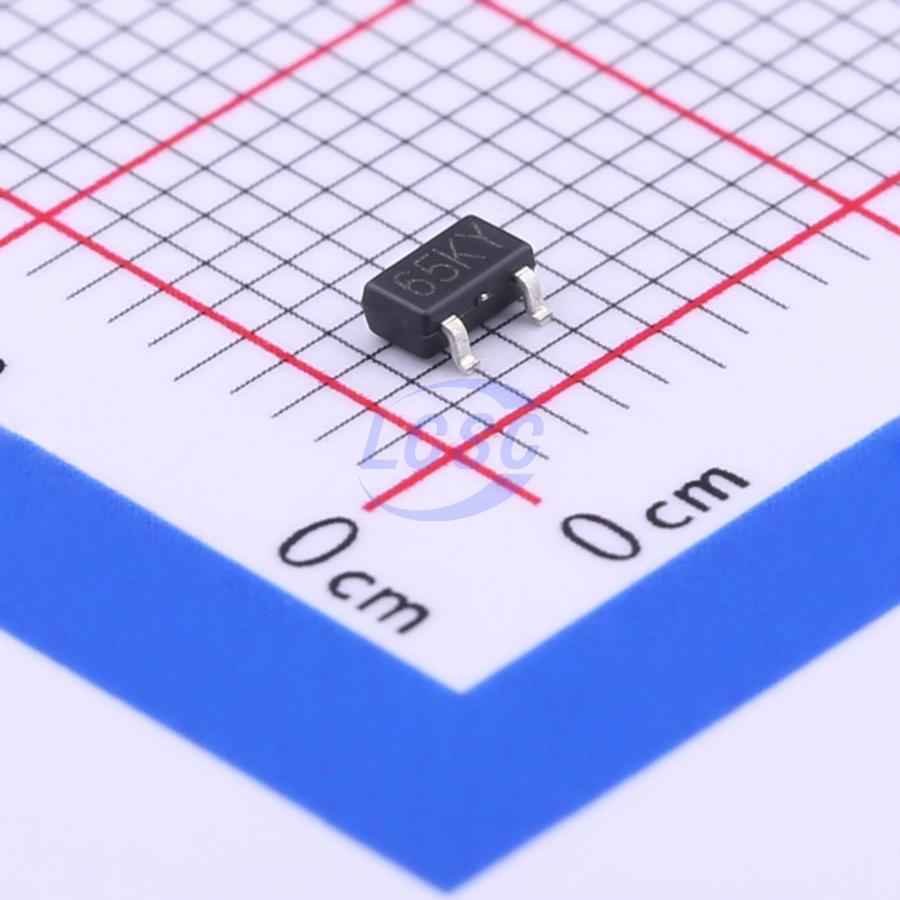

H7605-18MR
1.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
300mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7605-18MR
- Store part #
- C411034
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,645 in stock
#C411034
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.40 | ₹57.00 |
| 50+ | ₹9.08 | ₹454.00 |
| 150+ | ₹7.91 | ₹1,186.50 |
| 500+ | ₹7.04 | ₹3,520.00 |
| 3,000+ | ₹6.06 | ₹18,180.00 |
| 6,000+ | ₹5.72 | ₹34,320.00 |
5 × ₹11.40
₹57.00
excl. GST
₹67.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
H7605-18MR
₹57.00 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Low Quiescent Current: 1.5uA at 6V Output voltage accuracy: tolerance ±2% H7605 series are highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The H7605 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s fold back circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. H7605 series are available in SOT-23, SOT23-3 and SOT-89 packages.
Applications
- Battery-powered equipment
- Reference voltage sources
- Cameras, video cameras
- Portable AV systems
- Mobile phones
- Portable games
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP6206-18NR#C277878Siproin · SOT-23 | Siproin | SOT-23 | 14,240 | ₹5.58 · 14,240 in stock | View |
 | SSP6206-18MR#C2845044Siproin · SOT-23 | Siproin | SOT-23 | 3,070 | ₹9.06 · 3,070 in stock | View |
 | H7218-1#C277854Siproin · SOT-23-3 | Siproin | SOT-23-3 | 200 | ₹14.45 · 200 in stock | View |
 | SSP7615-18MR#C7545817Siproin · SOT-23-3 | Siproin | SOT-23-3 | 1,140 | ₹11.50 · 1,140 in stock | View |
