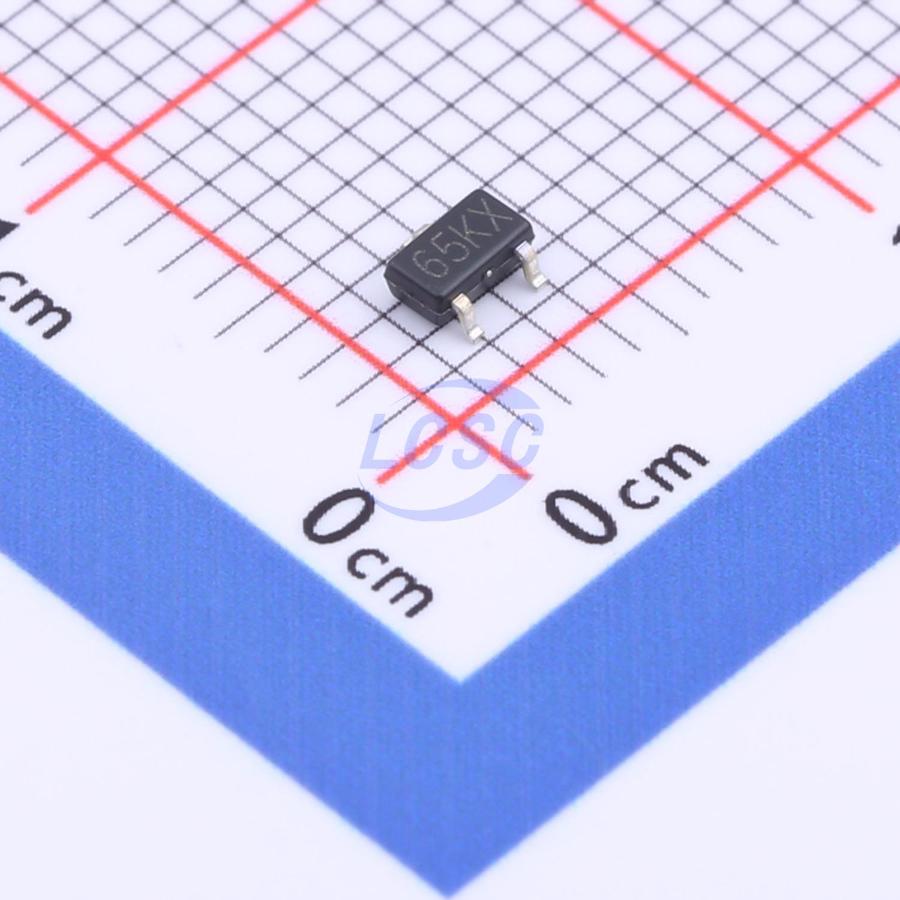

SSP6206-18MR
1.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
300mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP6206-18MR
- Store part #
- C2845044
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,070 in stock
#C2845044
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.06 | ₹90.60 |
| 100+ | ₹7.21 | ₹721.00 |
| 300+ | ₹6.28 | ₹1,884.00 |
| 3,000+ | ₹5.37 | ₹16,110.00 |
| 6,000+ | ₹4.82 | ₹28,920.00 |
| 9,000+ | ₹4.54 | ₹40,860.00 |
10 × ₹9.06
₹90.60
excl. GST
₹106.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SSP6206-18MR
₹90.60 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 3.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
SSP6206 series are a highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The SSP6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SSP6206 series are available in SOT-23, SOT23-3 and SOT89 packages.
Applications
- Battery-powered equipment
- Portable AV systems
- Reference voltage sources
- Mobile phones
- Cameras, video cameras
- Portable games
Key features
- Low power consumption
- Low Quiescent Current: 3.5uA at 6V
- Low voltage drop
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP6206-18NR#C277878Siproin · SOT-23 | Siproin | SOT-23 | 14,240 | ₹5.58 · 14,240 in stock | View |
 | H7605-18MR#C411034Siproin · SOT-23 | Siproin | SOT-23 | 1,645 | ₹11.40 · 1,645 in stock | View |
 | SSP7615-18MR#C7545817Siproin · SOT-23-3 | Siproin | SOT-23-3 | 1,140 | ₹11.50 · 1,140 in stock | View |
 | H7218-1#C277854Siproin · SOT-23-3 | Siproin | SOT-23-3 | 200 | ₹14.45 · 200 in stock | View |
