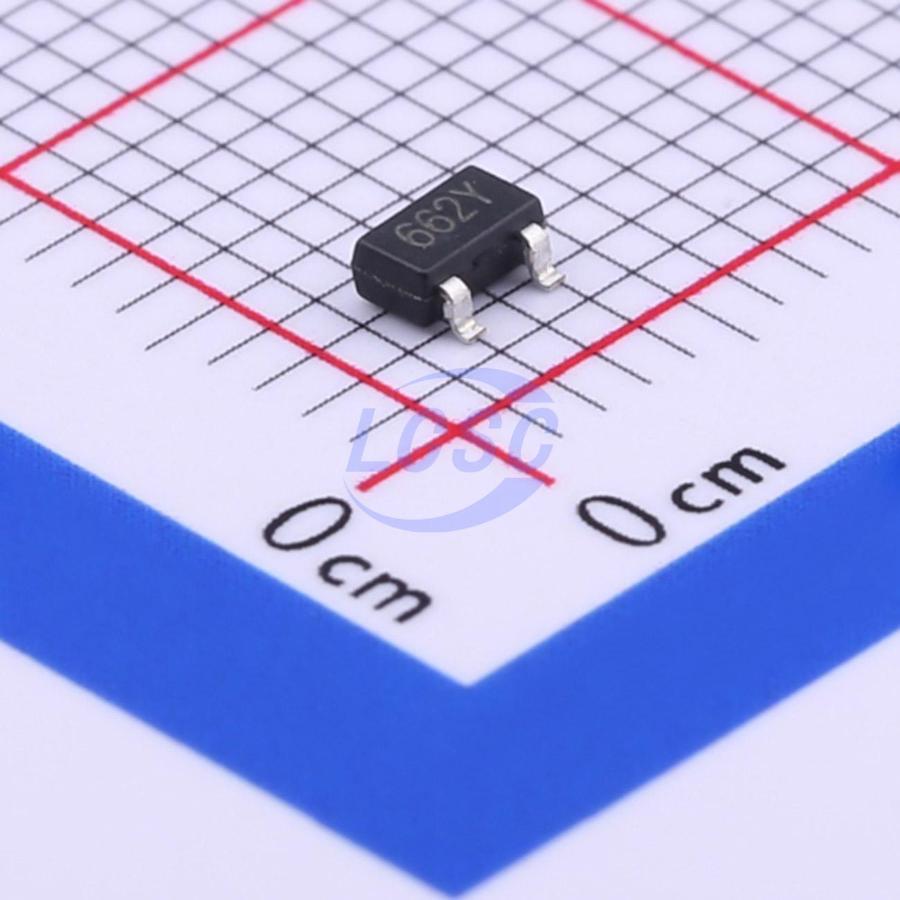

H7605-33MR
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
300mA Low Power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- H7605-33MR
- Store part #
- C411038
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,165 in stock
#C411038
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.58 | ₹57.90 |
| 50+ | ₹9.18 | ₹459.00 |
| 150+ | ₹7.99 | ₹1,198.50 |
| 500+ | ₹7.09 | ₹3,545.00 |
| 3,000+ | ₹6.23 | ₹18,690.00 |
| 6,000+ | ₹5.87 | ₹35,220.00 |
5 × ₹11.58
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
H7605-33MR
₹57.90 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Low Quiescent Current: 1.5uA at 6V Output voltage accuracy: tolerance ±2% H7605 series are highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The H7605 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s fold back circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. H7605 series are available in SOT-23, SOT23-3 and SOT-89 packages.
Applications
- Battery-powered equipment
- Reference voltage sources
- Cameras, video cameras
- Portable AV systems
- Mobile phones
- Portable games
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | H7605-33NR#C411039Siproin · SOT-23 | Siproin | SOT-23 | 415 | ₹10.84 · 415 in stock | View |
 | SSP6206-33NR#C277882Siproin · SOT-23 | Siproin | SOT-23 | 50,080 | ₹5.09 · 50,080 in stock | View |
 | H7233-1#C277859Siproin · SOT-23-3 | Siproin | SOT-23-3 | 9,690 | ₹14.70 · 9,690 in stock | View |
 | SSP7603P33MR#C411028Siproin · SOT-23 | Siproin | SOT-23 | 5,095 | ₹17.24 · 5,095 in stock | View |
 | SSP7901P33MR#C7424770Siproin · SOT23-3 | Siproin | SOT23-3 | 2,780 | ₹15.96 · 2,780 in stock | View |
