R+O

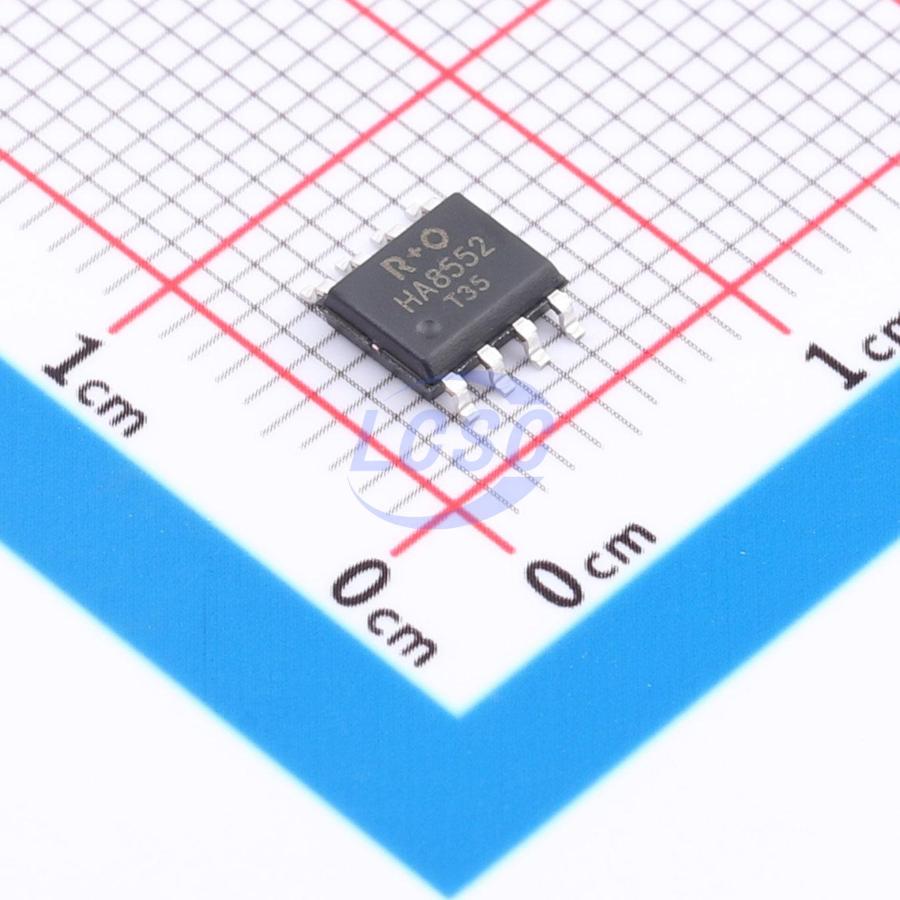

HA8552P8

50pA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Audio Amplifiers

SOP-8RoHSActive

Manufacturer: R+O
Manufacturer part #: HA8552P8
Store part #: C55586829
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,958 in stock

#C55586829

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹75.24	₹75.24
10+	₹59.36	₹593.60
30+	₹52.63	₹1,578.90
100+	₹44.36	₹4,436.00
500+	₹40.46	₹20,230.00
1,000+	₹38.27	₹38,270.00

Quantity (min 1)

1 × ₹75.24

₹75.24

excl. GST

₹88.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

HA8552P8

₹75.24 for 1 + GST

Specifications

number of channels: 2
Ib - Input Bias Current: 50pA
Operating Temperature: -40℃~+125℃
Input Offset Current(Ios): 10pA
Quiescent Current (Iq): 700uA
Vos - Input Offset Voltage: 1uV
Output Current: 50mA
Common Mode Rejection Ratio (CMRR): 130dB
Gain Bandwidth Product: 10MHz
Input Offset Voltage Drift(Vos TC): 5nV/℃
Single Supply: 2.7V~5.5V
Dual Supply: 1.35V~2.75V;-2.75V~-1.35V
Slew Rate: 5V/us
Noise density(eN): 35nV/√Hz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.276 g
