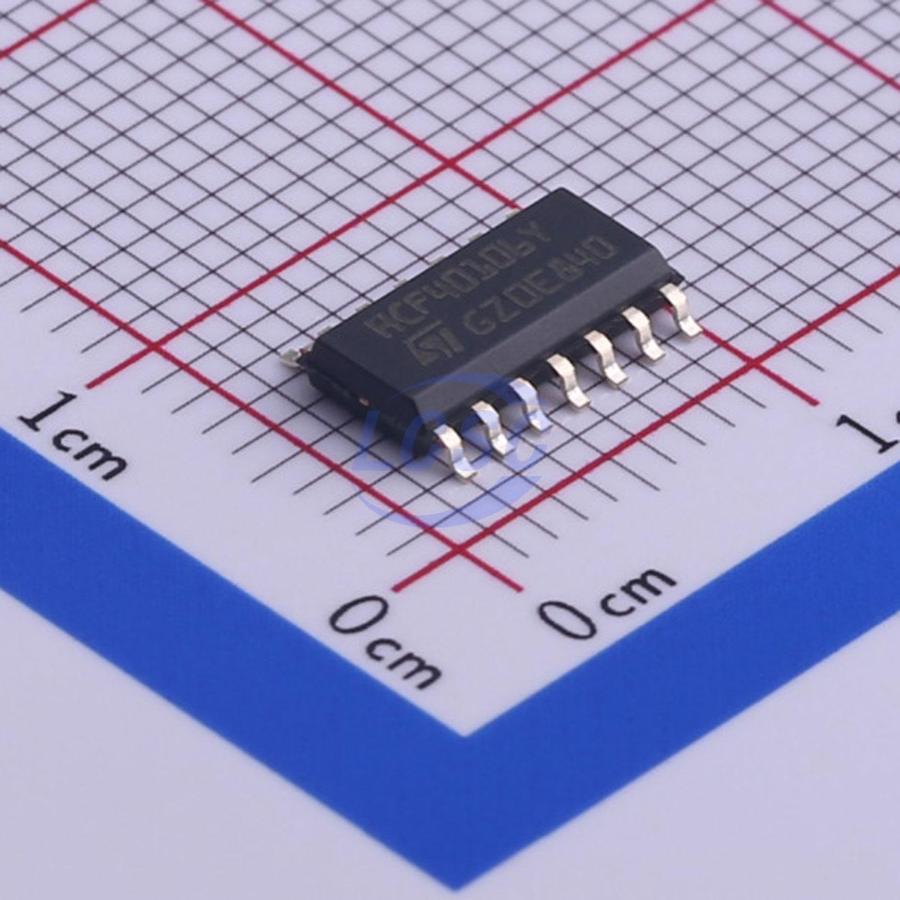

HCF40106YM013TR

Schmitt trigger 3V~20V 120ns@15V,50pF 20uA 6 SOP-14 Gates and Inverters RoHS

SOP-14ROHS3 CompliantActive

Hex Schmitt trigger

Manufacturer: ST
Manufacturer part #: HCF40106YM013TR
Store part #: C443841
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,910 in stock

#C443841

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹66.79	₹66.79
10+	₹49.88	₹498.80
30+	₹42.51	₹1,275.30
100+	₹33.62	₹3,362.00
500+	₹29.49	₹14,745.00
1,000+	₹27.11	₹27,110.00

Quantity (min 1)

1 × ₹66.79

₹66.79

excl. GST

₹78.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HCF40106YM013TR

₹66.79 for 1 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 4000
Voltage - Supply: 3V~20V
Output Logic Level - Low: 50mV
Propagation Delay: 120ns@15V,50pF
Features: Noise suppression function
Operating Temperature: -55℃~+125℃
Input Logic Level - High: 3.6V~10.8V
Input Logic Level - Low: 900mV~4V
Output Logic Level - High: 4.95V
Quiescent Current(Iq): 20uA
Current - Output High(IOH): 6.8mA
Number of Channels: 6
Current - Output Low(IOL): 6.8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.179 g

Overview

The HCF40106 is a monolithic integrated circuit fabricated in metal oxide semiconductor technology available in an SO-14 package. The HCF40106 consists of six Schmitt trigger circuits. Each circuit functions as an inverter with Schmitt trigger action on the input. The trigger switches at different points for positive and negative-going signals. The difference between the positive voltage (Vₚ) and the negative voltage (Vₙ) is defined as hysteresis voltage (Vₕ)

Applications

Automotive
Industrial
Computer
Consumer

Key features

Schmitt trigger action with no external components
Hysteresis voltage typically: 0.9 V at Vₛₛ = 5 V; 2.3 V at Vₛₛ = 10 V; 3.5 V at Vₛₛ = 15 V
Noise immunity greater than 50%
No limit on input rise and fall times
Low Vₛₛ to Vₛₛ current during slow input ramp
Standardized symmetrical output characteristics
Quiescent current specified up to 20 V, 5 V, 10 V, and 15 V parametric ratings
Input leakage current Iₗ = 100 nA (max.) at Vₛₛ = 18 V and Tₐ = 25 °C
100% tested for quiescent current
ESD performance: HBM: 2 kV MM: 200 V CDM: 1 kV
