Broadic

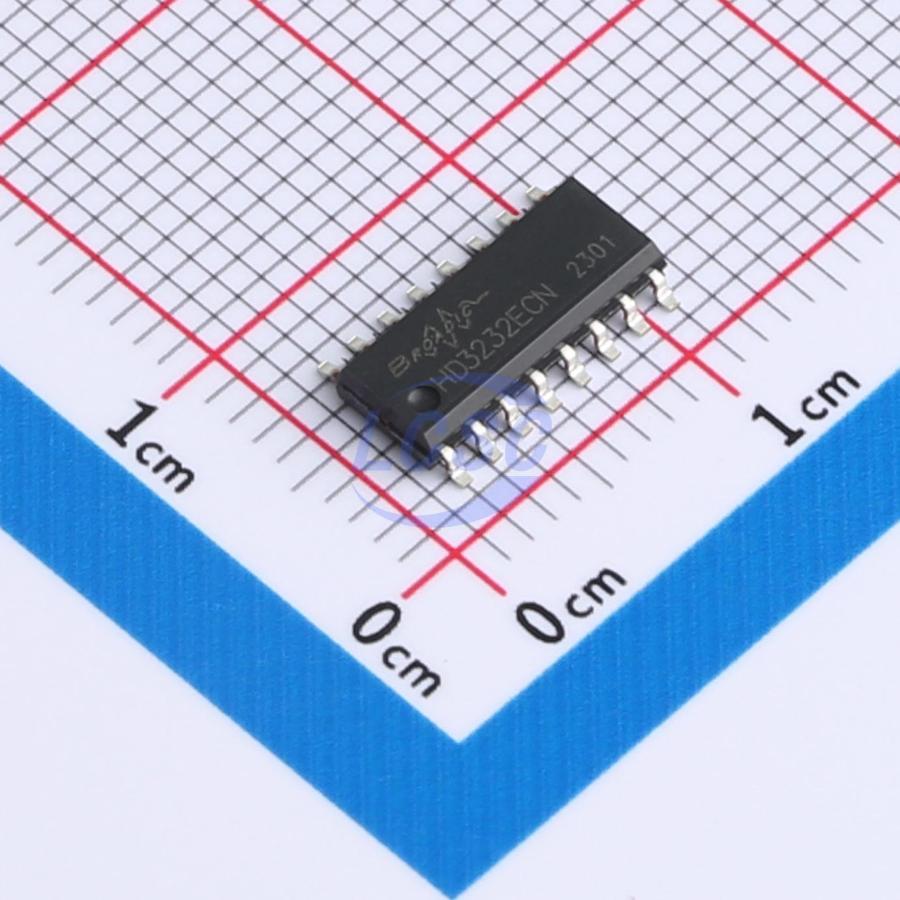

HD3232ECN

Transceiver 250Kbps SOP-16 Drivers, Receivers, Transceivers RoHS

SOP-16ROHS CompliantActive

HD32xxE RS232 Transceivers

Manufacturer: Broadic
Manufacturer part #: HD3232ECN
Store part #: C18208852
Package / case: SOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,992 in stock

#C18208852

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹65.17	₹65.17
10+	₹51.11	₹511.10
30+	₹45.15	₹1,354.50
100+	₹37.69	₹3,769.00
500+	₹34.29	₹17,145.00
1,000+	₹32.37	₹32,370.00

Quantity (min 1)

1 × ₹65.17

₹65.17

excl. GST

₹76.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

HD3232ECN

₹65.17 for 1 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3.3V;5V
Data Rate: 250Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 0.5mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.298 g

Overview

The HD32xxE series are interface ICs powered by 3V supply, compliant with EIA/TIA-232 and CCITT V.28/V.24 communication requirements and meeting low-power specifications. They integrate two drivers, two receivers, and a dedicated switched-capacitor voltage converter. The HD3220 features one driver and one receiver. These devices operate from a 3V to 5.5V supply with a guaranteed data rate of 250kbit/s. ESD protection on all RS-232 I/O pins exceeds ±15kV air discharge and ±8kV contact discharge per EN61000-4-2. The HD3221E and HD3223E feature the proprietary XPWRSAVE (patented) function, which automatically shuts down the internal voltage converter and driver circuitry when the RS-232 cable is disconnected from the host interface or the connected peripheral device is powered off.

Applications

Battery-powered and handheld devices
Laptops and PDAs
Cellular phone data cables
Terminal adapters and POS terminals
Modems

Key features

HD32xxE meets EIA/TIA-232F and CCITT V.28/V.24 communication requirements at 3.3V or 5V supply
Low quiescent current: 0.5mA typical, 1mA maximum
Low shutdown current: 1uA typical, 10uA maximum
Guaranteed 250kbps data rate
Dedicated switched-capacitor voltage converter
Dedicated XPWRSAVE auto-standby power saving
ESD protection on RS-232 I/O: ±15kV Human Body Model (HBM)
±15kV EN61000-4-2 Air Gap Discharge
±8kV EN61000-4-2 Contact Discharge
