BroadicDatasheet (PDF)

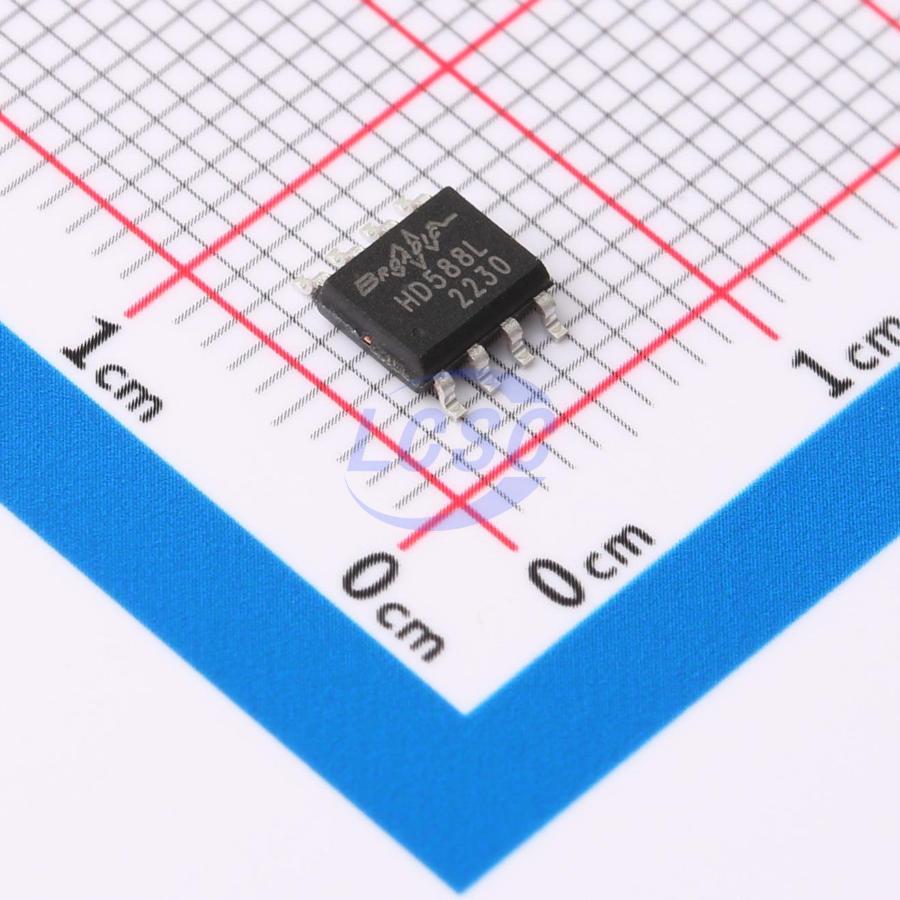

HD588L
1/1 Transceiver Half RS422, RS485 SO-8
SO-8ROHS CompliantActive
High Speed, Fail-Safe RS-485 Transceiver with ESD Protection
- Manufacturer
- Broadic
- Manufacturer part #
- HD588L
- Store part #
- C5124130
- Package / case
- SO-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,459 in stock
#C5124130
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹37.76 | ₹37.76 |
| 10+ | ₹29.26 | ₹292.60 |
| 30+ | ₹25.63 | ₹768.90 |
| 100+ | ₹21.09 | ₹2,109.00 |
| 500+ | ₹19.06 | ₹9,530.00 |
| 1,000+ | ₹17.86 | ₹17,860.00 |
1 × ₹37.76
₹37.76
excl. GST
₹44.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HD588L
₹37.76 for 1 + GST
Specifications
- Voltage - Supply
- 3.3V;5V
- Type
- Transceiver
- Data Rate
- 20Mbps
- Number of Nodes
- 256
- Operating Temperature
- -40℃~+125℃
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 150uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.257 g
Overview
HD588L is a 3.3V/5V, half-duplex, ±15kV ESD-protected RS-485/RS-422 transceiver IC, incorporating one driver and one receiver. The HD588L features enhanced slew-rate limiting to reduce output EMI and reflections caused by mismatched terminations, enabling error-free data transmission at 20Mbps. The receiver input impedance is 1/8 unit load with operating current below 150μA, allowing up to 256 transceivers on the bus for half-duplex communication. All driver outputs provide ±15kV HBM ESD protection. Available in an 8-pin SO package, operating over a temperature range of -40°C to +125°C.
Applications
- Isolated RS-485 interface
- Energy meters
- Industrial control
- Industrial motor drives
- Automatic HVAC systems
Key features
- 3.3V/5V supply voltage for error-free 20Mbps high-speed data transmission
- Communication port with ±15kV HBM ESD protection
- 150uA operating current with fail-safe function
- 1/8 unit load, supporting up to 256 transceivers on the same bus
- 8-pin SO package
