BroadicDatasheet (PDF)

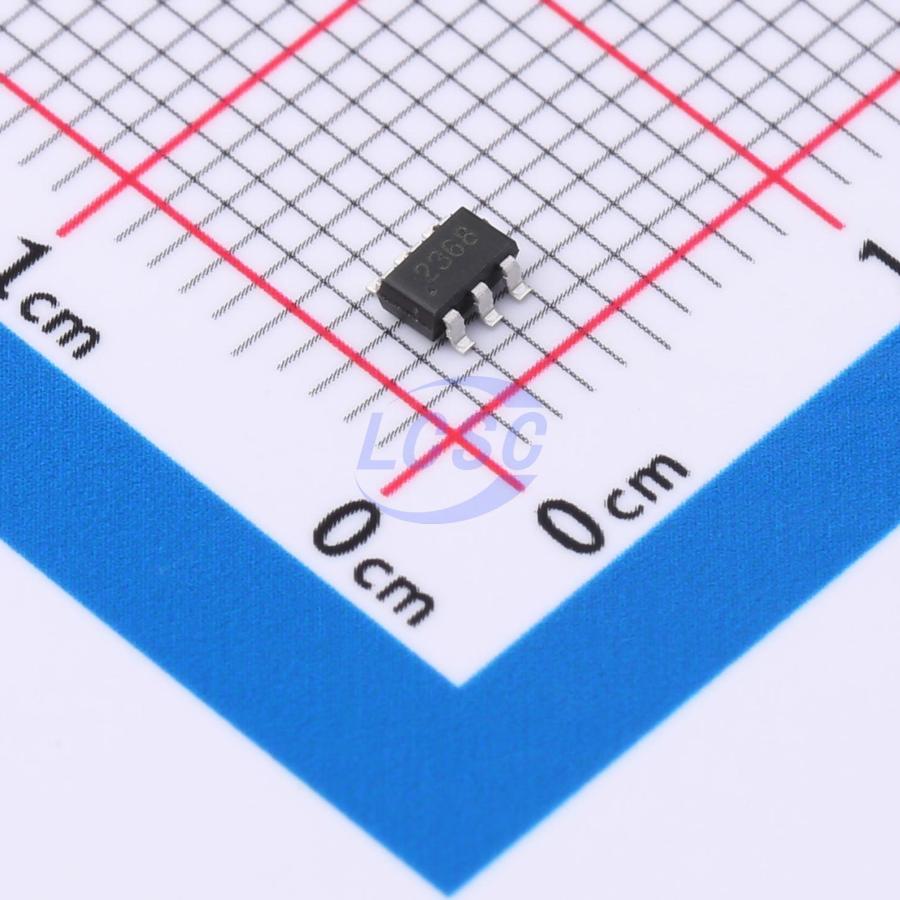

HD8023
5V~36V SOT-23-6 Motor Drivers, Controllers RoHS
SOT-23-6ROHS CompliantActive
Relay (Motor) Driver IC
- Manufacturer
- Broadic
- Manufacturer part #
- HD8023
- Store part #
- C5156943
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,047 in stock
#C5156943
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹16.33 | ₹16.33 |
| 10+ | ₹12.89 | ₹128.90 |
| 30+ | ₹11.17 | ₹335.10 |
| 100+ | ₹9.87 | ₹987.00 |
| 500+ | ₹8.84 | ₹4,420.00 |
| 1,000+ | ₹8.32 | ₹8,320.00 |
1 × ₹16.33
₹16.33
excl. GST
₹19.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HD8023
₹16.33 for 1 + GST
Specifications
- Number of Channels
- 2
- Voltage - Supply
- 5V~36V
- Input Logic Level - High
- 1.9V~5.5V
- RDS(on)
- 8Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
HD8023 is a power driver IC featuring two independent power driver circuits. Its outputs connect directly to relay coils, enabling magnetic latching relay contact closure and release under the control of input logic signal levels. The application circuit requires no external discrete components, offering the advantages of compact size, low power consumption, and high reliability. HD8023 is available in SOP-8 and SOT23-6 packages.
Applications
- Smart meter
Key features
- 5 – 36V operating voltage
- 450mA operating current, 650mA maximum
- Compatible with various MCU logic level signals
- Input signal noise immunity
- Inductive load flyback current protection
