Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,070 in stock
#C691578
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.06 | ₹105.30 |
| 50+ | ₹16.84 | ₹842.00 |
| 200+ | ₹15.03 | ₹3,006.00 |
| 500+ | ₹12.77 | ₹6,385.00 |
| 2,500+ | ₹11.76 | ₹29,400.00 |
| 5,000+ | ₹11.17 | ₹55,850.00 |
| 10,000+ | ₹11.03 | ₹1,10,300.00 |
| 20,000+ | ₹10.95 | ₹2,19,000.00 |
5 × ₹21.06
₹105.30
excl. GST
₹124.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube

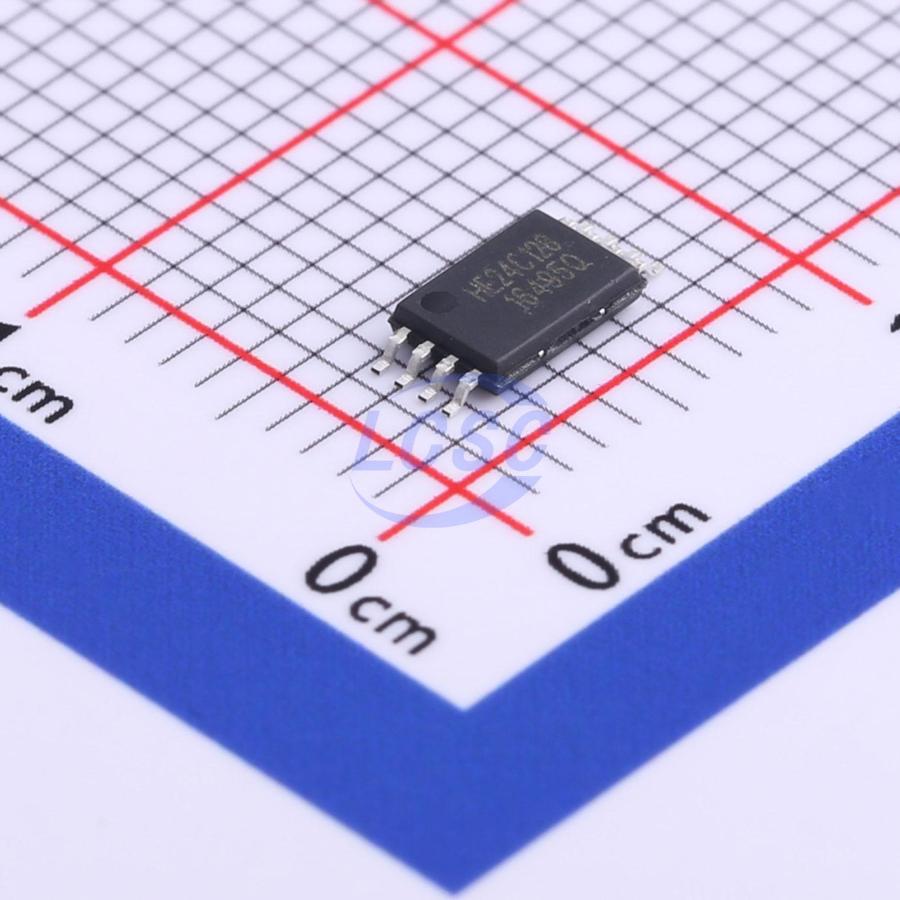

HE24C128TSH
₹105.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The HE24C128 provides 131,072 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 16,384 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all data transfer protocol 1 MHz 400 kHz 100 kHz
- Memory array: 128 Kbit (16 Kbytes) of EEPROM Page size: 64 bytes Additional Write lockable page
- Single supply voltage and high speed: 1 MHz
- Write: Byte Write within 3 ms Page Write within 3 ms
- Operating Ambient Temperature: From -40 ℃ up to +85 ℃
- High-reliability Endurance: 1 Million Write Cycles Data Retention: 100 Years
- Internally Organized: HE24C128, 16,384 X 8 (128K bits)
- Two-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write Protect Pin for Hardware Data Protection
- Partial Page Writes Allowed
- Self-timed Write Cycle (5 ms max)
- 8-lead PDIP /SOP /TSSOP /UDFN /WLCSP4 packages
