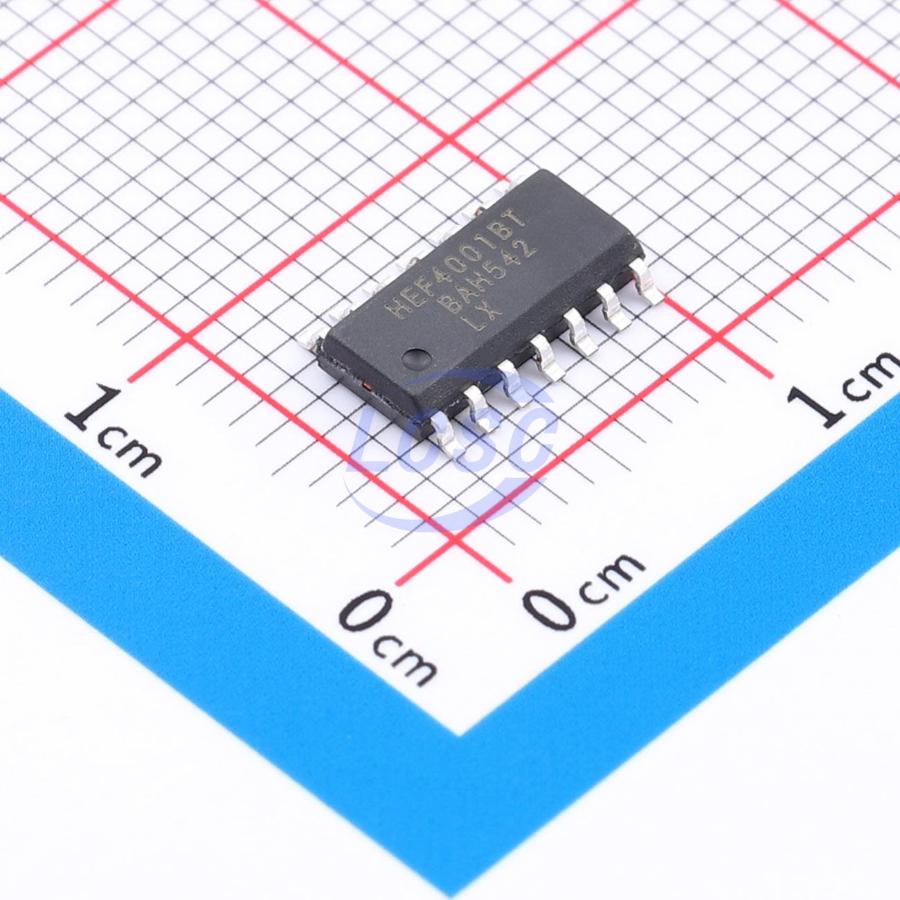

HEF4001BT(LX)
3V~15V 90ns@15V,50pF 1uA SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- HEF4001BT(LX)
- Store part #
- C52711165
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C52711165
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.28 | ₹76.40 |
| 50+ | ₹12.16 | ₹608.00 |
| 150+ | ₹10.60 | ₹1,590.00 |
| 500+ | ₹9.42 | ₹4,710.00 |
| 2,500+ | ₹8.49 | ₹21,225.00 |
| 4,000+ | ₹8.02 | ₹32,080.00 |
5 × ₹15.28
₹76.40
excl. GST
₹90.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HEF4001BT(LX)
₹76.40 for 5 + GST
Specifications
- Logic Family
- 4000 Series
- Voltage - Supply
- 3V~15V
- Propagation Delay
- 90ns@15V,50pF
- Output Logic Level - Low
- 50mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 1.5V~4V
- Input Logic Level - High
- 3.5V~11V
- Output Logic Level - High
- 4.95V~14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.248 g
Overview
The HEF4001 is a quad 2-input NOR gate. The outputs are fully buffered for the highest noise immunity and are insensitive to output impedance modes. The device operates over the recommended VDD supply voltage range of 3V to 15V (with respect to VSS, typically ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range: 3V ~ 15V
- Fully static operation
- Parametric ratings at 5V, 10V, and 15V
- Standardized symmetrical output characteristics
- ESD protection on inputs and outputs
- Operating temperature range: -40℃ ~ +125℃
- Package: SOP14
