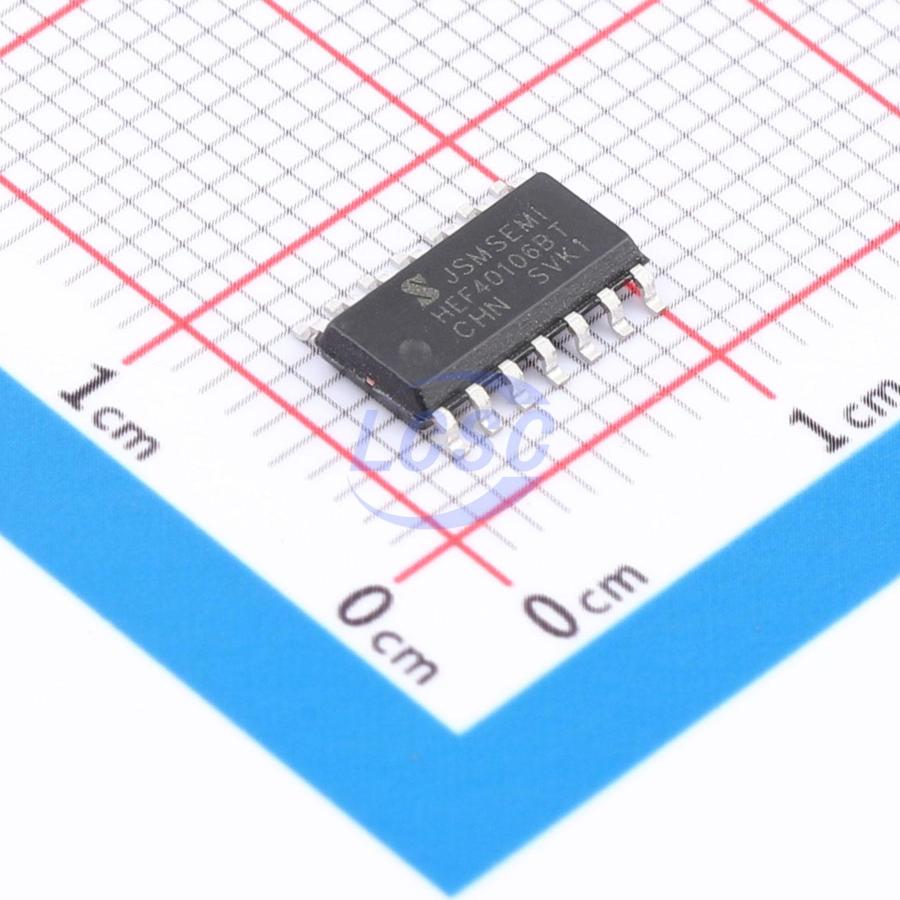

HEF40106BT-JSM
Schmitt trigger 3V~15V 60ns@15V,50pF 6 SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- HEF40106BT-JSM
- Store part #
- C53114190
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,945 in stock
#C53114190
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.82 | ₹74.10 |
| 50+ | ₹11.70 | ₹585.00 |
| 150+ | ₹10.13 | ₹1,519.50 |
| 500+ | ₹8.96 | ₹4,480.00 |
| 2,500+ | ₹8.02 | ₹20,050.00 |
| 5,000+ | ₹7.55 | ₹37,750.00 |
5 × ₹14.82
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF40106BT-JSM
₹74.10 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 60ns@15V,50pF
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 5V;10V;15V
- Number of Channels
- 6
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.187 g
Overview
The HEF40106BT-JSM provides six inverting buffers. Each input incorporates a Schmitt trigger circuit. The inverting buffers switch at different points for positive-going and negative-going signals. The difference between the positive voltage (VT⁺) and negative voltage (VT) is defined as the hysteresis voltage (VH). The HEF40106BT-JSM can be used to enhance noise immunity or to "square up" slowly changing waveforms. It operates over a recommended ΔVDD supply voltage range of 3V to 15V (with respect to Vss, typically ground). Unused inputs must be connected to ΔVDD, ΔVSS, or another input.
Key features
- Wide supply voltage range: 3V to 15V
- Schmitt trigger input discrimination
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Operating temperature range: -40℃ to +125℃
- Package: SOP-14
