lingxingic

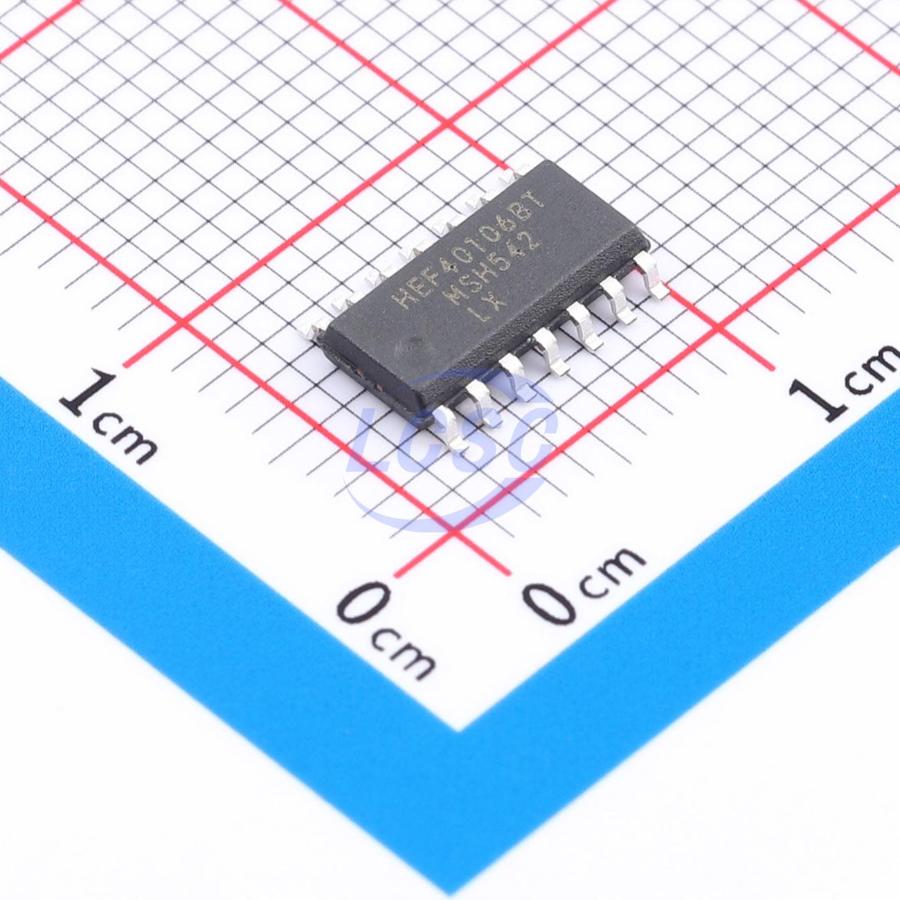

HEF40106BT(LX)

Schmitt trigger 1uA 3V~15V 6 140ns@5V,50pF SOP-14 Gates and Inverters

SOP-14RoHSActive

Manufacturer: lingxingic
Manufacturer part #: HEF40106BT(LX)
Store part #: C52711166
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,390 in stock

#C52711166

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹20.31	₹101.55
50+	₹16.15	₹807.50
150+	₹14.08	₹2,112.00
500+	₹12.52	₹6,260.00
2,500+	₹11.27	₹28,175.00
4,000+	₹10.65	₹42,600.00

Quantity (min 5, multiples of 5)

5 × ₹20.31

₹101.55

excl. GST

₹119.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

HEF40106BT(LX)

₹101.55 for 5 + GST

Specifications

Input Type: Schmitt trigger
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 4.95V~5V
Quiescent Current(Iq): 1uA
Voltage - Supply: 3V~15V
Number of Channels: 6
Current - Output High(IOH): 1mA
Propagation Delay: 140ns@5V,50pF
Output Logic Level - Low: 50mV
Current - Output Low(IOL): 1mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.164 g

Overview

The HEF40106 provides six inverting buffers. Each input has a Schmitt trigger circuit. The inverting buffers switch at different points for positive-going and negative-going signals. The difference between the positive voltage (V_T⁺) and the negative voltage (V_T⁻) is defined as the hysteresis voltage (V_H). The HEF40106 can be used to enhance noise immunity or to "square up" slowly changing waveforms. It operates over a recommended V_DD supply voltage range of 3V to 20V (with respect to V_SS, typically ground). Unused inputs must be connected to V_DD, V_SS, or another input.
