Nexperia

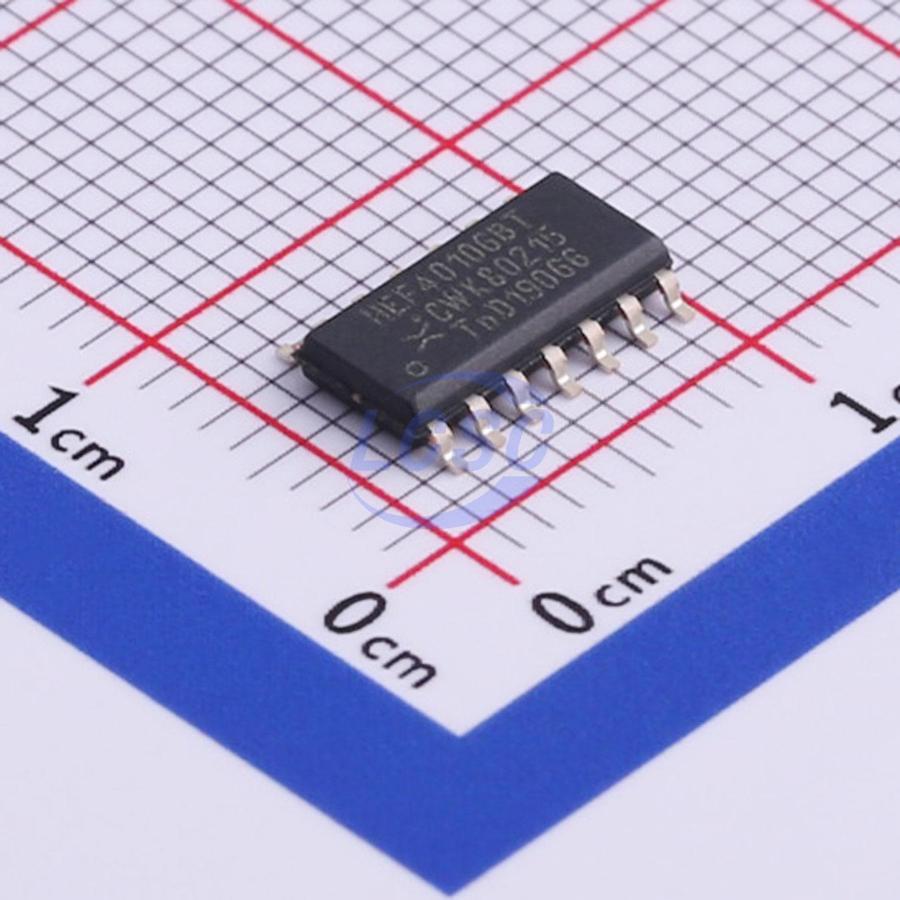

HEF40106BT-Q100J

Schmitt trigger 3V~15V 60ns@15V,50pF 4uA 6 SOIC-14 Gates and Inverters RoHS

SOIC-14ROHS3 CompliantActive

Hex inverting Schmitt trigger

Manufacturer: Nexperia
Manufacturer part #: HEF40106BT-Q100J
Store part #: C503402
Package / case: SOIC-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,455 in stock

#C503402

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹53.46	₹267.30
50+	₹42.38	₹2,119.00
150+	₹37.81	₹5,671.50
500+	₹31.95	₹15,975.00
2,500+	₹29.34	₹73,350.00
5,000+	₹27.82	₹1,39,100.00

Quantity (min 5, multiples of 5)

5 × ₹53.46

₹267.30

excl. GST

₹315.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HEF40106BT-Q100J

₹267.30 for 5 + GST

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 4000B
Voltage - Supply: 3V~15V
Output Logic Level - Low: 50mV
Propagation Delay: 60ns@15V,50pF
Features: Noise suppression function
Input Logic Level - Low: 1.5V~4V
Input Logic Level - High: 3.5V~11V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 4.95V;9.95V;14.95V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 3.4mA
Number of Channels: 6
Current - Output Low(IOL): 3.4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.168 g

Overview

The HEF40106B is a hex inverter with Schmitt-trigger inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Applications

Wave and pulse shapers
Astable multivibrators
Monostable multivibrators

Key features

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Wide supply voltage range from 3.0 V to 15.0 V
CMOS low power dissipation
High noise immunity
Schmitt trigger input discrimination
Fully static operation
5 V, 10 V, and 15 V parametric ratings
Standardized symmetrical output characteristics
ESD protection: MIL-STD-833, method 3015 exceeds 2 kV
HBM JESD22-A114F exceeds 2 kV
MM JESD22-A115-A exceeds 200 V, C = 200 pF, R = 0 Ω
Complies with JEDEC standard JESD 13-B

Alternatives

Similar parts — check the datasheet before substituting.
