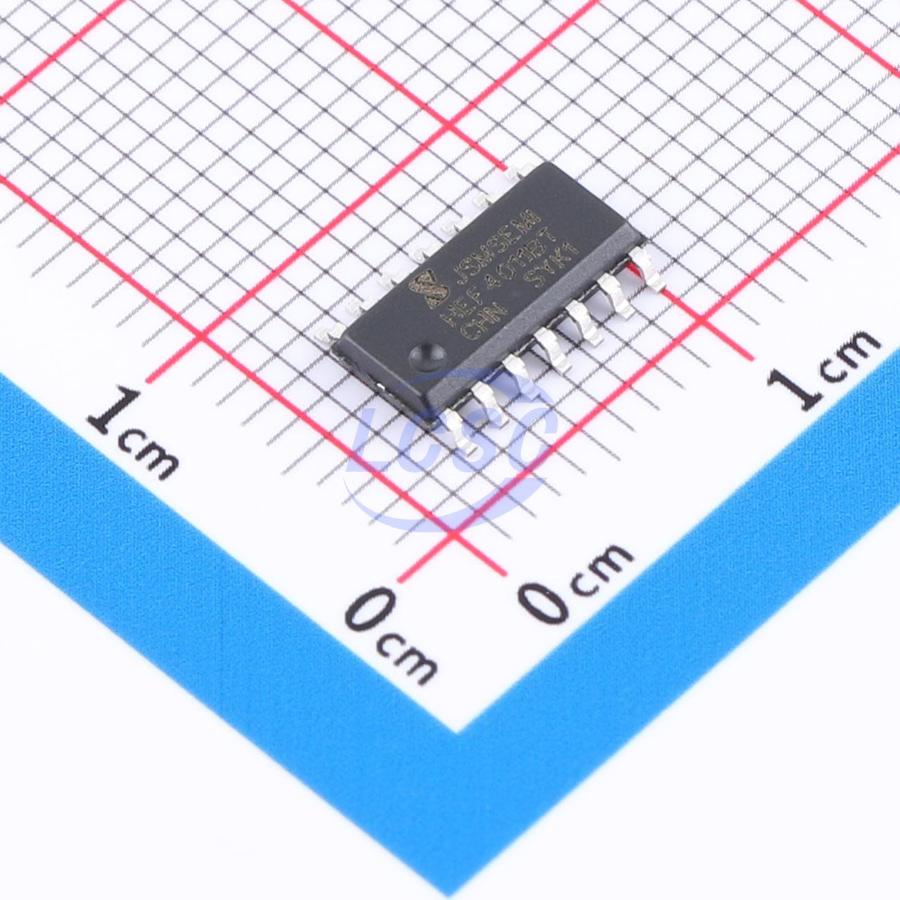

HEF4011BT,653-JSM
3V~15V 90ns@15V,50pF 1uA SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- HEF4011BT,653-JSM
- Store part #
- C53114084
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,045 in stock
#C53114084
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.57 | ₹87.85 |
| 50+ | ₹13.98 | ₹699.00 |
| 150+ | ₹12.18 | ₹1,827.00 |
| 500+ | ₹10.84 | ₹5,420.00 |
| 2,500+ | ₹9.76 | ₹24,400.00 |
| 5,000+ | ₹9.22 | ₹46,100.00 |
5 × ₹17.57
₹87.85
excl. GST
₹103.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4011BT,653-JSM
₹87.85 for 5 + GST
Specifications
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 90ns@15V,50pF
- Input Logic Level - High
- 3.5V;7V;11V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HEF4093BT-JSM#C22470415JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 1,520 | ₹14.25 · 1,520 in stock | View |
 | CD4093BM#C5456626JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 20,280 | ₹15.76 · 20,280 in stock | View |
