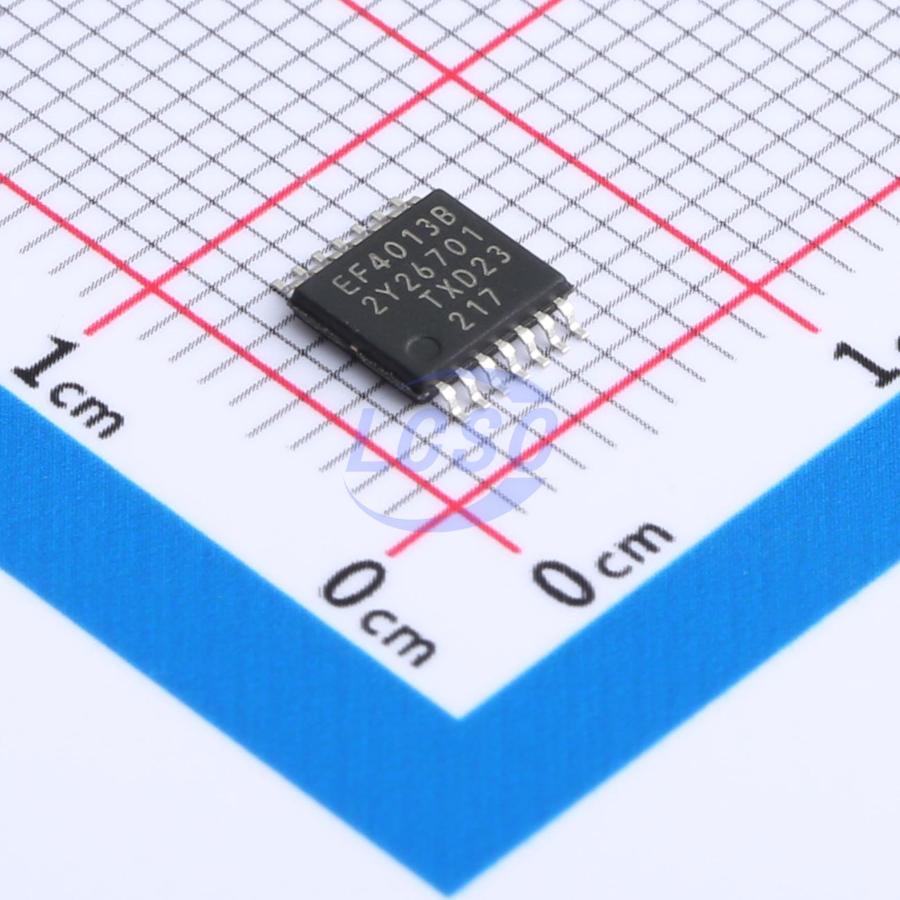

HEF4013BTT,118
3V~15V 1 2 60ns@15V,50pF TSSOP-14 Flip Flops RoHS
Dual D-type flip-flop
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4013BTT,118
- Store part #
- C2911690
- Package / case
- TSSOP-14
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,865 in stock
#C2911690
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.28 | ₹56.28 |
| 10+ | ₹44.77 | ₹447.70 |
| 30+ | ₹39.99 | ₹1,199.70 |
| 100+ | ₹33.68 | ₹3,368.00 |
| 500+ | ₹31.08 | ₹15,540.00 |
| 1,000+ | ₹29.34 | ₹29,340.00 |
1 × ₹56.28
₹56.28
excl. GST
₹66.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4013BTT,118
₹56.28 for 1 + GST
Specifications
- Voltage - Supply
- 3V~15V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+125℃
- Series
- 4000B Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Current - Output High(IOH)
- 3.4mA
- Current - Output Low(IOL)
- 3.4mA
- Setup Time
- 5ns
- Quiescent Current
- 4uA
- Hold Time
- 0ns
- Propagation Delay
- 60ns@15V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.172 g
Overview
The HEF4013B is a dual D-type flip-flop with set and reset; positive-edge trigger. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD. Schmitt-trigger action on the clock input makes the circuit highly tolerant of slower clock rise and fall times.
Applications
- Counters and dividers
- Registers
- Toggle flip-flops
Key features
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Tolerant of slow clock rise and fall times
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Specified from -40 °C to +125 °C
- Complies with JEDEC standard JESD 13-B
- ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-B exceeds 200 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC14013BDTR2G#C233444onsemi · TSSOP-14 | onsemi | TSSOP-14 | 5,605 | ₹32.03 · 5,605 in stock | View |
 | SN74HCT74PWR#C141335TI · TSSOP-14 | TI | TSSOP-14 | 810 | ₹37.73 · 810 in stock | View |
 | CD4013APWRG#C49318175HANSCHIP semiconductor · TSSOP-14 | HANSCHIP semiconductor | TSSOP-14 | 1,700 | ₹13.16 · 1,700 in stock | View |
 | CD4013BPWR#C406860TI · TSSOP-14 | TI | TSSOP-14 | 2,085 | ₹49.76 · 2,085 in stock | View |
| NLV14013BDTR2G#C904761onsemi · TSSOP-14 | onsemi | TSSOP-14 | 207 | ₹52.70 · 207 in stock | View | |
