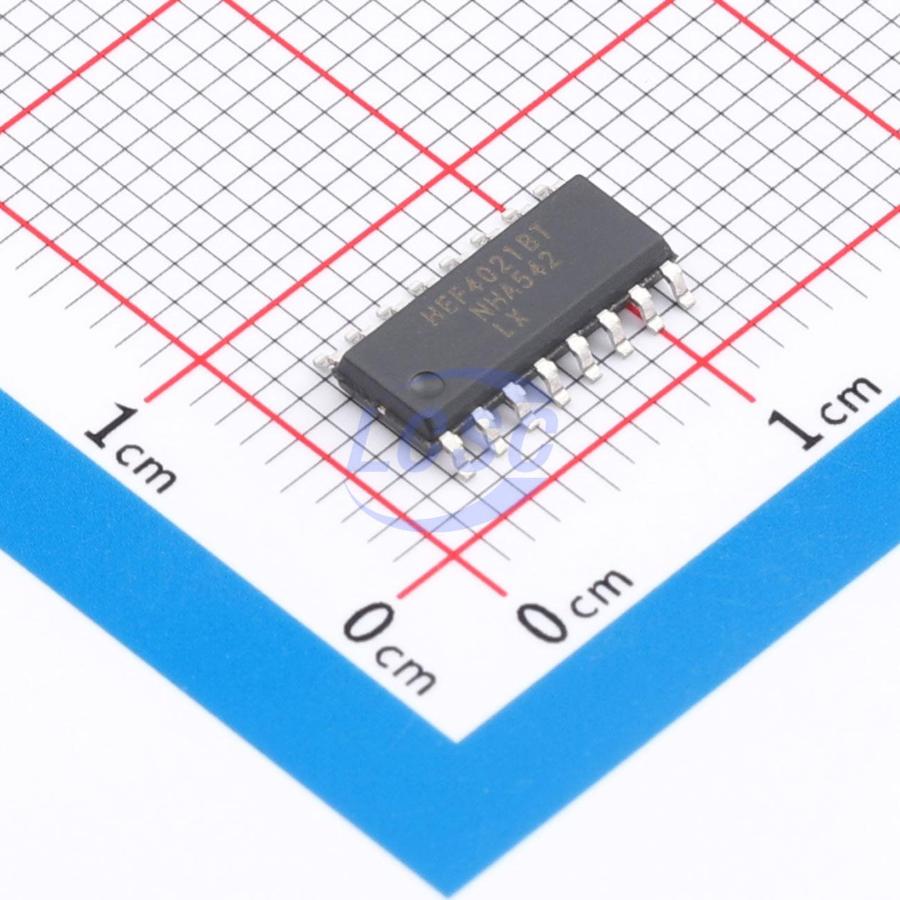

HEF4021BT(LX)
3V~15V 1 10mA 40ns@15V,50pF Parallel or Serial to Serial SOP-16 Shift Registers
SOP-16RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- HEF4021BT(LX)
- Store part #
- C52261133
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,955 in stock
#C52261133
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.83 | ₹144.15 |
| 50+ | ₹22.81 | ₹1,140.50 |
| 150+ | ₹20.23 | ₹3,034.50 |
| 500+ | ₹17.01 | ₹8,505.00 |
| 2,500+ | ₹15.57 | ₹38,925.00 |
| 4,000+ | ₹14.71 | ₹58,840.00 |
5 × ₹28.83
₹144.15
excl. GST
₹170.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HEF4021BT(LX)
₹144.15 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 3V~15V
- Output Type
- Push-Pull
- Current - Output High(IOH)
- 3.4mA
- Series
- 4000 Series
- Current - Output Low(IOL)
- 3.4mA
- Number of Elements
- 1
- Output Current
- 10mA
- Features
- Asynchronous parallel load function
- Propagation Delay
- 40ns@15V,50pF
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
This device is an 8-bit static shift register, referenced to VSS (typically ground), operating within a recommended supply voltage range of 3V to 15V. Unused inputs must be connected to VDD, VSS, or other inputs.
Key features
- High tolerance for slow rise and fall times
- Fully static operation
- Standardized symmetrical output characteristics
- Operating temperature range: -40℃~+125℃
- Package: SOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4021BM(LX)#C22390238lingxingic · SOP-16 | lingxingic | SOP-16 | On request | ₹31.17 · 0 in stock | View |
