NexperiaDatasheet (PDF)

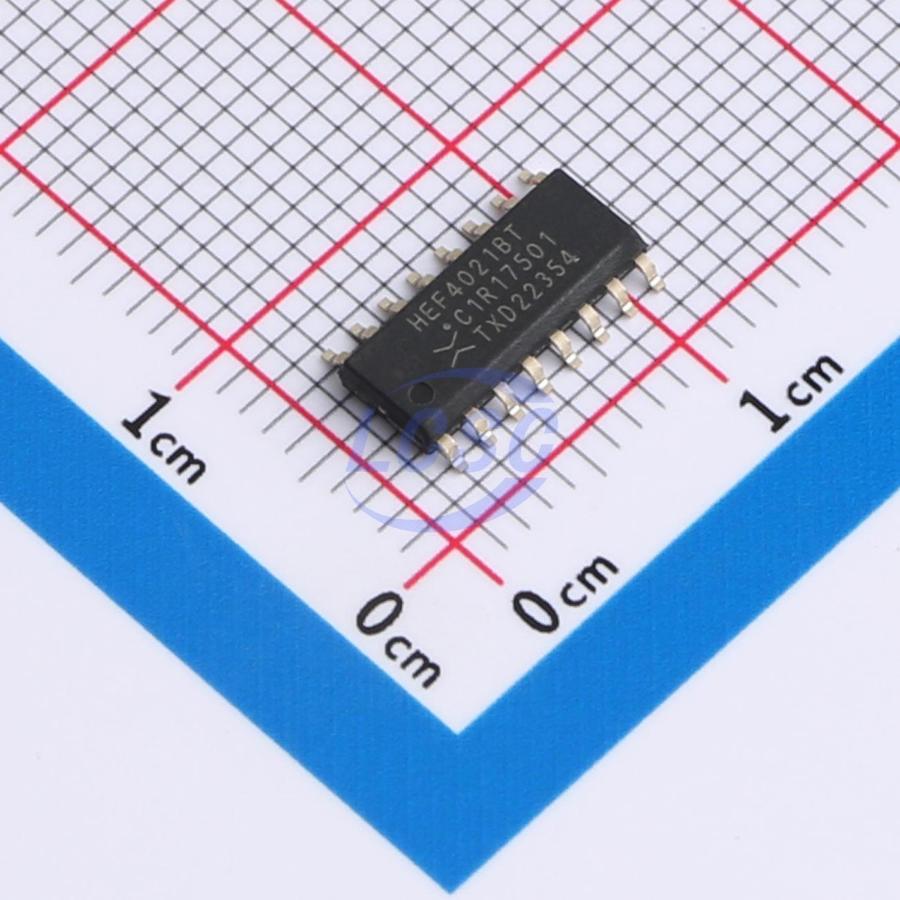

HEF4021BT-Q100J
3V~15V 1 2.4mA 40ns@15V,50pF Parallel or Serial to Serial SO-16 Shift Registers RoHS
SO-16ROHS3 CompliantActive
8-bit static shift register
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4021BT-Q100J
- Store part #
- C545777
- Package / case
- SO-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C545777
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.09 | ₹63.09 |
| 10+ | ₹49.44 | ₹494.40 |
| 30+ | ₹43.80 | ₹1,314.00 |
| 100+ | ₹36.44 | ₹3,644.00 |
| 500+ | ₹33.18 | ₹16,590.00 |
| 1,000+ | ₹31.22 | ₹31,220.00 |
1 × ₹63.09
₹63.09
excl. GST
₹74.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4021BT-Q100J
₹63.09 for 1 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 1.4mA
- Series
- 4000B
- Current - Output Low(IOL)
- 0.5mA
- Number of Elements
- 1
- Output Current
- 2.4mA
- Features
- Asynchronous parallel load function
- Propagation Delay
- 40ns@15V,50pF
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.271 g
Overview
Key features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Tolerant of slower rise and fall times
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection: MIL-STD-883, method 3015 exceeds 2000 V HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
- Complies with JEDEC standard JESD 13-B
