NexperiaDatasheet (PDF)

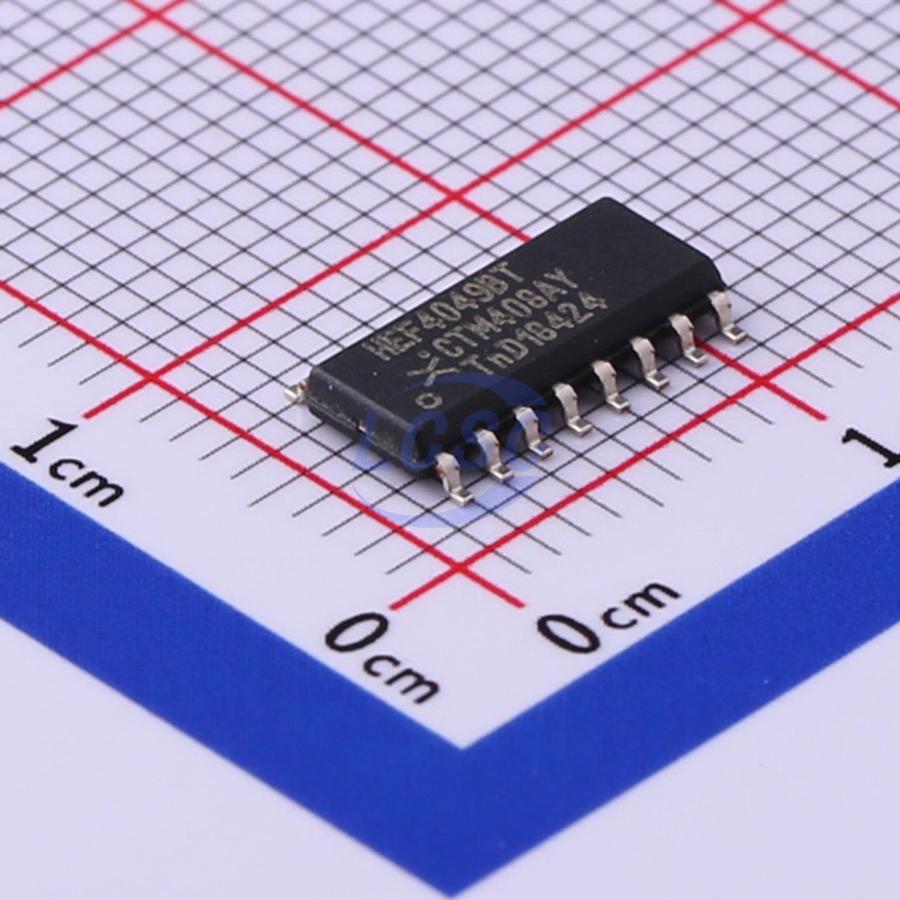

HEF4049BT,653
16uA 3V~15V 6 40ns@15V,50pF SO-16 Gates and Inverters RoHS
SO-16ROHS3 CompliantActive
Hex inverting buffers
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4049BT,653
- Store part #
- C513218
- Package / case
- SO-16
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,435 in stock
#C513218
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.73 | ₹213.65 |
| 50+ | ₹33.38 | ₹1,669.00 |
| 150+ | ₹29.37 | ₹4,405.50 |
| 500+ | ₹24.37 | ₹12,185.00 |
| 2,500+ | ₹22.13 | ₹55,325.00 |
| 5,000+ | ₹20.80 | ₹1,04,000.00 |
5 × ₹42.73
₹213.65
excl. GST
₹252.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4049BT,653
₹213.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 1.5V~4V
- Input Logic Level - High
- 3.5V~11V
- Logic Family
- 4000B
- Quiescent Current(Iq)
- 16uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 3mA
- Number of Channels
- 6
- Propagation Delay
- 40ns@15V,50pF
- Current - Output Low(IOL)
- 20mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
The HEF4049B provides six inverting buffers with high current output capability suitable for driving TTL or high capacitive loads. Since input voltages in excess of the buffers' supply voltage are permitted, the buffers may also be used to convert logic levels of up to 15V to standard TTL levels. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Applications
- LOCMOS(Local Oxidation CMOS) to DTL/TTL converter
- HIGH sink current for driving two TTL loads
- HIGH-to-LOW level logic conversion
Key features
- Accepts input voltages in excess of the supply voltage
- Fully static operation
- 5 V, 10 V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Specified from -40°C to +85°C
- Complies with JEDEC standard JESD 13-B
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4049SA16.TR#C51940044Wuxi I-core Elec · SOP-16 | Wuxi I-core Elec | SOP-16 | 330 | ₹33.10 · 330 in stock | View |
