Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C54140472
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.77 | ₹103.85 |
| 50+ | ₹16.39 | ₹819.50 |
| 150+ | ₹14.53 | ₹2,179.50 |
| 500+ | ₹12.18 | ₹6,090.00 |
| 2,500+ | ₹11.14 | ₹27,850.00 |
| 5,000+ | ₹10.52 | ₹52,600.00 |
5 × ₹20.77
₹103.85
excl. GST
₹122.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel

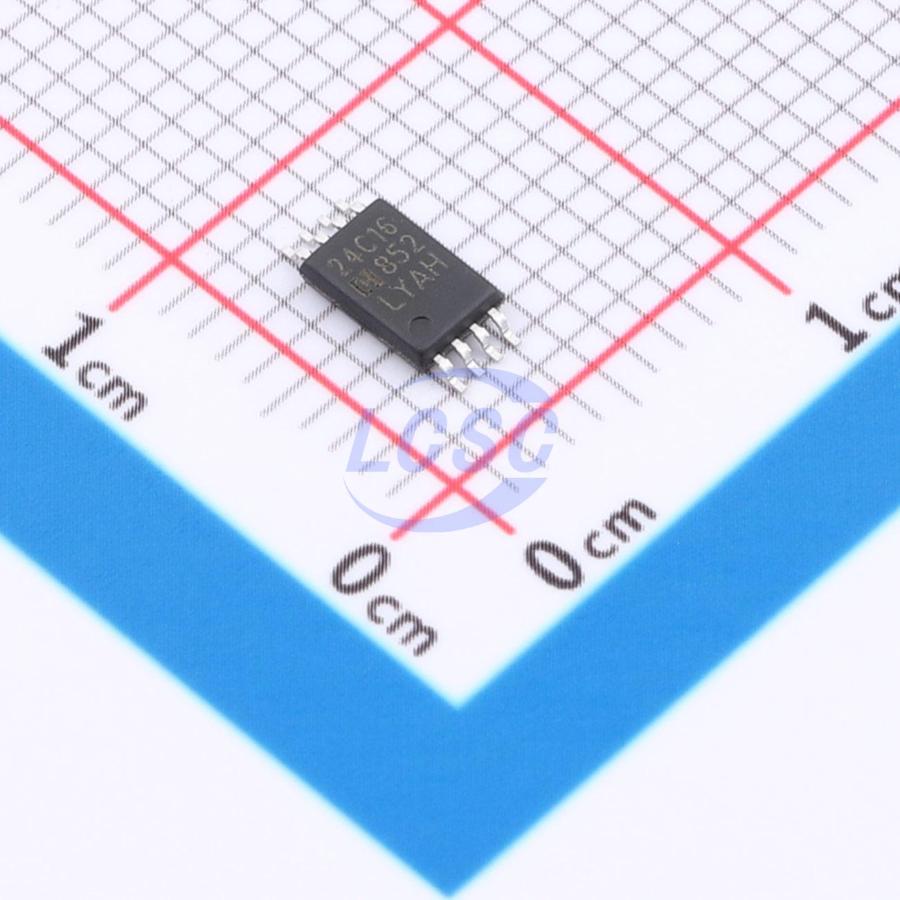

HG24C16MT-852/TR
₹103.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
HG24C08/HG24C16 are I²C-compatible serial EEPROM devices. They feature an 8 Kbits (1 Kbytes) / 16 Kbits (2 Kbytes) memory array with 16-byte pages.
Key features
- Single supply voltage and high-speed mode
- Minimum operating voltage down to 1.7V
- 400kHz/1MHz clock from 1.7V to 5.5V
- Low-power CMOS technology
- Read current 0.2mA (400kHz, typical)
- Write current 0.8mA (400kHz, typical)
- Schmitt trigger with filtered inputs for noise suppression
- Sequential and random read capability
- Page write mode with partial page write support
- Write protection for entire memory array
- Additional writable lockable page
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1 million write cycles
- Data retention: 100 years
- HBM ESD: 4kV
- Latch-up immunity: ±200mA (25°C)
- Packages: DIP-8, SOP-8, TSSOP-8, SOT-23-5, DFN-8, MSOP-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C16MT/TR-HG#C53200135HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,725 | ₹20.77 · 4,725 in stock | View |
 | AT24C16MT-852/TR#C54140473HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,925 | ₹20.77 · 4,925 in stock | View |
 | HG24C16MT/TR#C53200134HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 5,000 | ₹20.77 · 5,000 in stock | View |
