HGSEMIDatasheet (PDF)

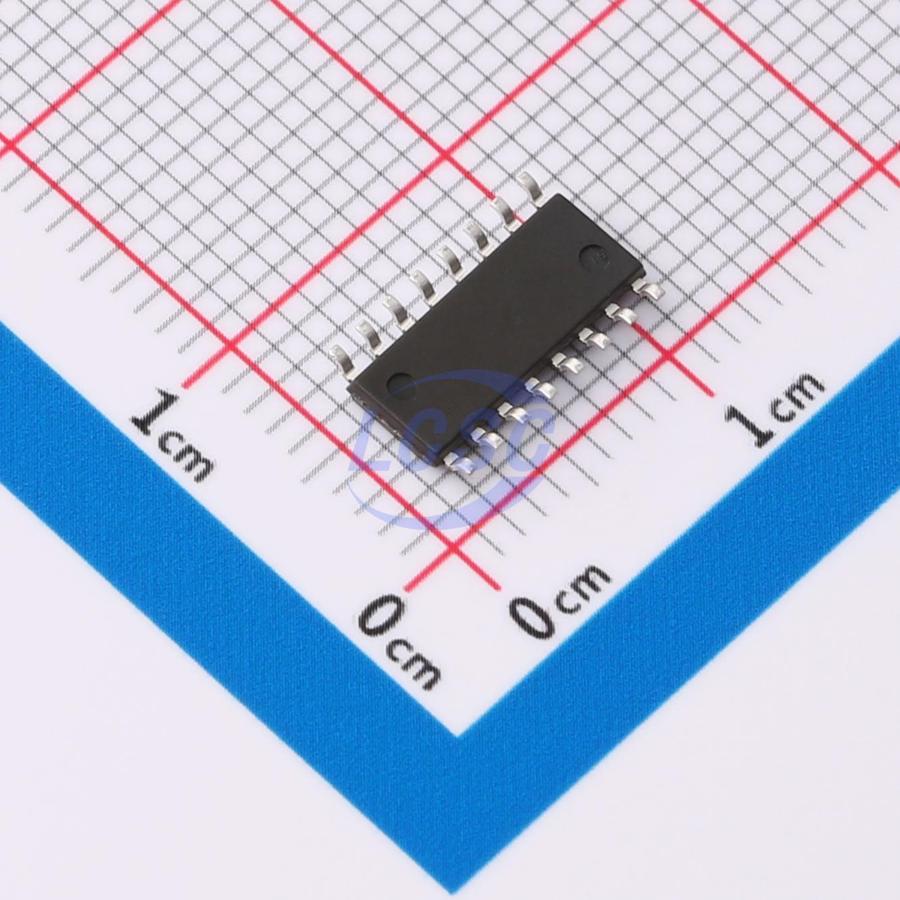

HG3232AECM/TR
Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
±15kV ESD protection, multi-channel RS-232 line drivers and receivers
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG3232AECM/TR
- Store part #
- C7432147
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C7432147
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.72 | ₹178.60 |
| 50+ | ₹31.21 | ₹1,560.50 |
| 150+ | ₹29.26 | ₹4,389.00 |
| 500+ | ₹26.90 | ₹13,450.00 |
| 2,500+ | ₹25.82 | ₹64,550.00 |
| 5,000+ | ₹25.18 | ₹1,25,900.00 |
5 × ₹35.72
₹178.60
excl. GST
₹210.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HG3232AECM/TR
₹178.60 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.348 g
Overview
The HG3232A interface IC integrates two drivers, two receivers, and a dual charge pump circuit. The serial port features ±15kV IEC61000-4-2 ESD protection. The HG3232A complies with TIA/EIA-232-F and provides an electrical interface between asynchronous communication controllers and serial port connectors. An on-chip charge pump with four small external capacitors supports single-supply operation from 3V to 5.5V. The HG3232A supports data signaling rates up to 250kbit/s, with a maximum driver output slew rate of 30V/µs. The output ports feature short-to-ground protection.
Applications
- Industrial PC
- Wired Networking
- Data Center and Enterprise Computing
- Battery-Powered Systems
- Laptops
- Handheld Devices
Key features
- Powered by 3V to 5.5V VCC supply
- Data rate up to 250kbit/s
- Two drivers and two receivers
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Supports external capacitors as small as 0.1µF
- Serial pins with enhanced ESD protection: HBM ±15kV; IEC 61000-4-2: contact discharge ±10kV; air discharge ±15kV
