HGSEMIDatasheet (PDF)

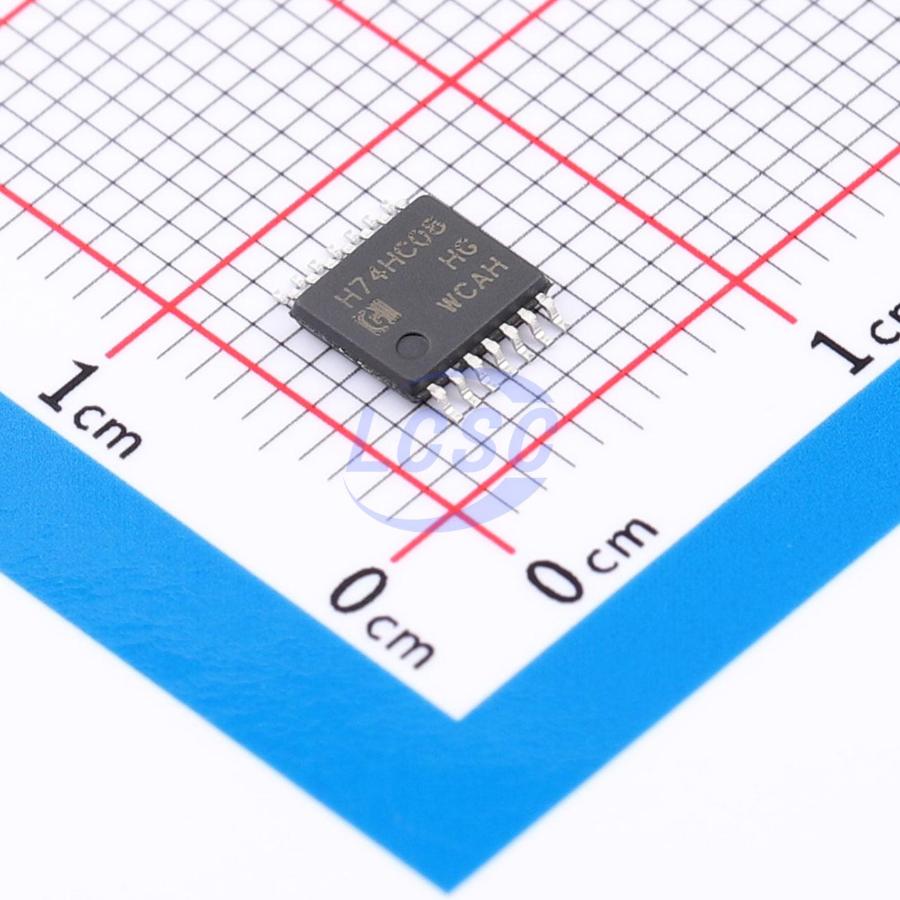

HG74HC08MT/TR
TTL-compatible CMOS 2V~6V 15ns@6V,50pF 2uA TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG74HC08MT/TR
- Store part #
- C53374710
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C53374710
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.30 | ₹61.50 |
| 50+ | ₹9.79 | ₹489.50 |
| 150+ | ₹8.53 | ₹1,279.50 |
| 500+ | ₹7.58 | ₹3,790.00 |
| 2,500+ | ₹6.83 | ₹17,075.00 |
| 5,000+ | ₹6.46 | ₹32,300.00 |
5 × ₹12.30
₹61.50
excl. GST
₹72.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HG74HC08MT/TR
₹61.50 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 15ns@6V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.279 g
Overview
HG74HC08 is a high-speed CMOS circuit, pin-compatible with low-power Schottky TTL (LSTTL) series, compliant with JEDEC standard no.7A, implementing quad 2-input AND gate functions.
Key features
- Compatible with JEDEC standard no.8-1A
- ESD protection
- HBM EIA/JESD22-A114-A exceeds 2000V, MM EIA/JESD22-A115-A exceeds 200V
- Wide operating temperature range: -40°C ~ +85°C
- Package: DIP-14/SOP-14/TSSOP-14/QFN-16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC08DMT/TR#C19193442HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 525 | ₹13.16 · 525 in stock | View |
