HGSEMIDatasheet (PDF)

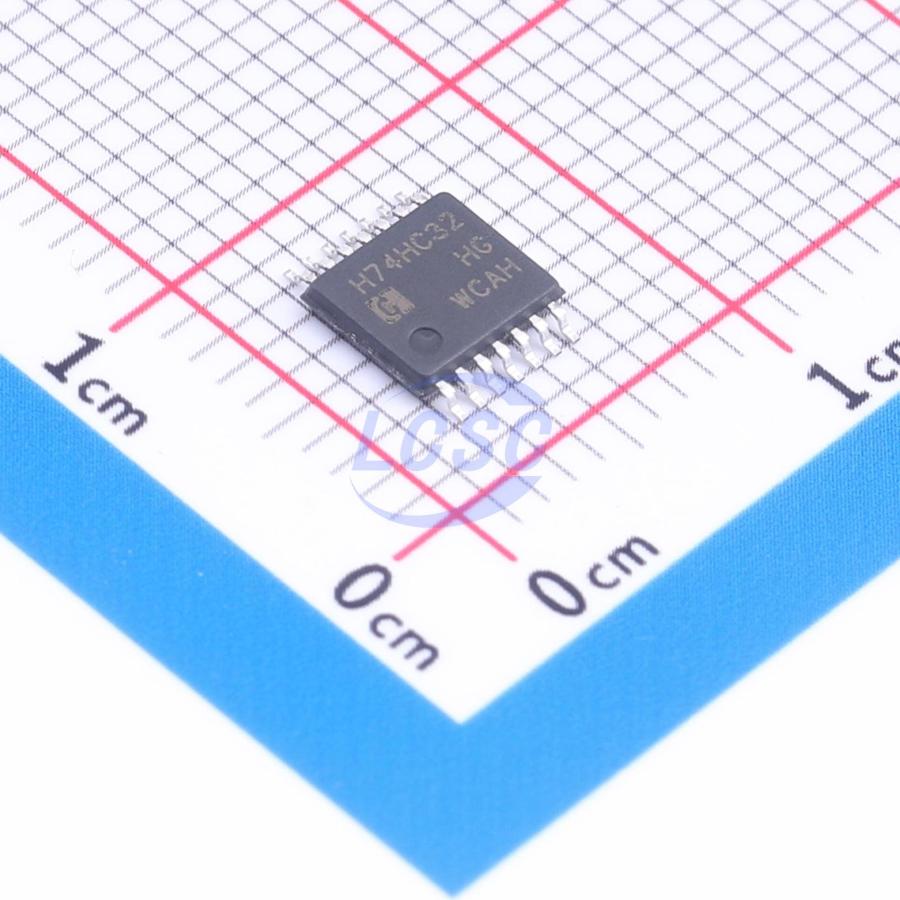

HG74HC32MT/TR
2uA 2V~6V 15ns@6V,50pF TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG74HC32MT/TR
- Store part #
- C53374709
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,015 in stock
#C53374709
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.24 | ₹76.20 |
| 50+ | ₹12.13 | ₹606.50 |
| 150+ | ₹10.57 | ₹1,585.50 |
| 500+ | ₹9.41 | ₹4,705.00 |
| 2,500+ | ₹8.47 | ₹21,175.00 |
| 5,000+ | ₹8.00 | ₹40,000.00 |
5 × ₹15.24
₹76.20
excl. GST
₹89.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HG74HC32MT/TR
₹76.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC
- Input Logic Level - Low
- 800mV;2.1V;2.8V
- Input Logic Level - High
- 1.2V;2.4V;3.2V
- Output Logic Level - High
- 2V;4.5V;6V;4.32V;5.81V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 2;4
- Output Logic Level - Low
- 0V;150mV;160mV
- Propagation Delay
- 15ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.333 g
Overview
HG74HC32 is a high-speed silicon gate CMOS circuit, pin-compatible with Low-power Schottky TTL (LSTTL) family, implementing quad 2-input OR gate functions. This circuit complies with JEDEC standard no.7A.
Key features
- Wide supply voltage range: 2.0V - 6.0V
- Symmetrical output impedance
- Low noise
- Low power consumption
- Stable propagation delay
- ESD protection: Human Body Model (EIA/JESD22-A114-A) exceeds 2000V
- ESD protection: Machine Model (EIA/JESD22-A115-A) exceeds 200V
- Operating temperature range: -40~85℃
- Package: DIP-14/SOP-14/TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC32MT/TR#C7432187HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,320 | ₹16.79 · 2,320 in stock | View |
