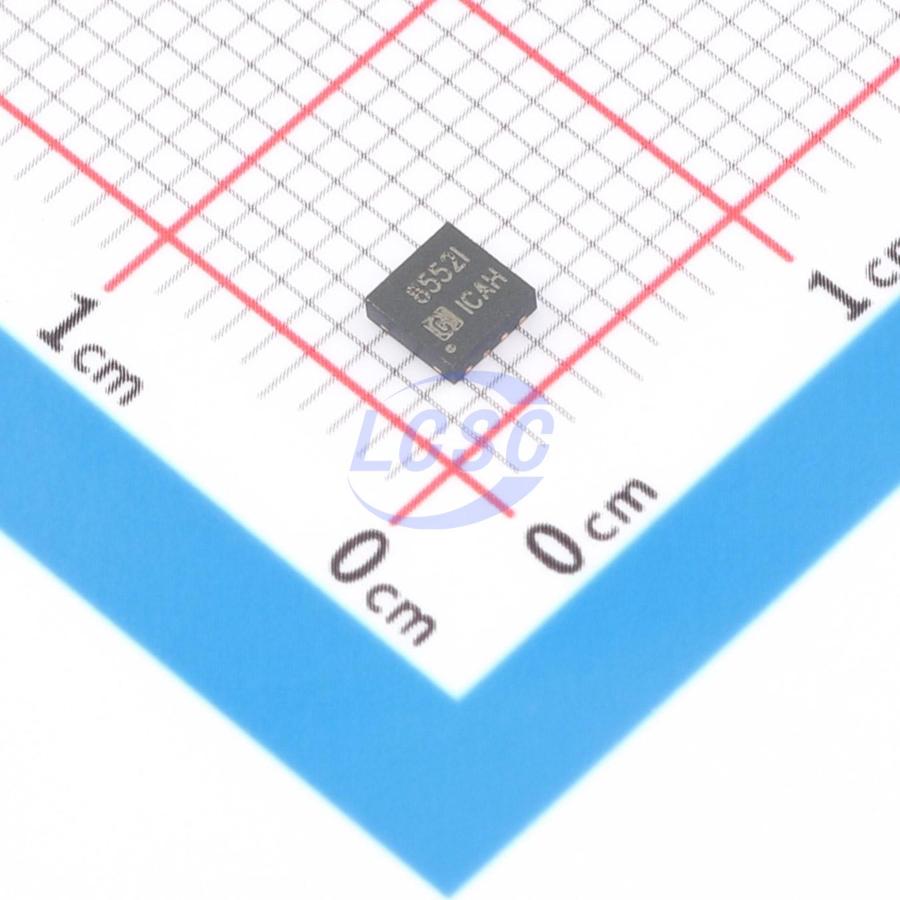

HG8552IDQ/TR

30mA 30uV 0.84V/us 20pA 110dB 1.5MHz 320uA Rail-to-Rail Input, Rail-to-Rail Output DFN-8-EP(3x3) Instrumentation, Op Amps, Buffer Amps

DFN-8-EP(3x3)RoHSActive

1.5MHz Zero-Drift CMOS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: HGSEMI
Manufacturer part #: HG8552IDQ/TR
Store part #: C42456074
Package / case: DFN-8-EP(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,899 in stock

#C42456074

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹51.81	₹51.81
10+	₹45.15	₹451.50
30+	₹42.35	₹1,270.50
100+	₹38.91	₹3,891.00
500+	₹37.41	₹18,705.00
1,000+	₹36.33	₹36,330.00

Quantity (min 1)

1 × ₹51.81

₹51.81

excl. GST

₹61.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

HG8552IDQ/TR

₹51.81 for 1 + GST

Specifications

Output Current: 30mA
Vos - Input Offset Voltage: 30uV
Slew Rate: 0.84V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 20pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 50nV/℃
Gain Bandwidth Product: 1.5MHz
Quiescent Current: 320uA
Input Voltage Noise Density: 49nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.216 g

Overview

The HG855X amplifiers are single/dual-supply, micropower, zero-drift CMOS operational amplifiers offering 1.5MHz bandwidth, rail-to-rail input and output, and single-supply operation from 2.1V to 5.5V. Using chopper stabilization technology, the HG855X delivers ultralow offset voltage (30µV maximum) and near-zero temperature drift. The low quiescent supply current of 320µA per amplifier and ultralow input bias current of 20pA make these devices ideal for low-offset, low-power, and high-impedance applications. The HG855X provides excellent CMRR without the crossover distortion associated with conventional complementary input stages. This design achieves superior performance when driving ADCs without degrading differential linearity. The HG8551 is available in SOT23-5, DFN-8, and SOP8 packages. The HG8552 is available in MSOP8, DFN-8, and SOP8 packages. The extended temperature range of -40°C to +125°C across all supply voltages provides additional design flexibility.

Applications

Sensor Applications
Temperature Measurement
Electronic Scales
Handheld Test Equipment
Battery-Powered Instruments

Key features

Single-supply operation, voltage range +2.1V ~ +5.5V
Rail-to-rail input/output
Gain bandwidth product: 1.5MHz (typical, @25°C)
Low input bias current: 20pA (typical, @25°C)
Low offset voltage: 30uV (maximum, @25°C)
Quiescent current: 320µA per amplifier (typical)
Operating temperature: -40°C ~ +125°C
Zero drift: 0.05µV/°C (maximum)
Integrated RF anti-EMI filter
Small package: HG8551 available in SOT23-5, DFN-8, and SOP-8; HG8552 available in MSOP-8, DFN-8, and SOP-8
