HGSEMI

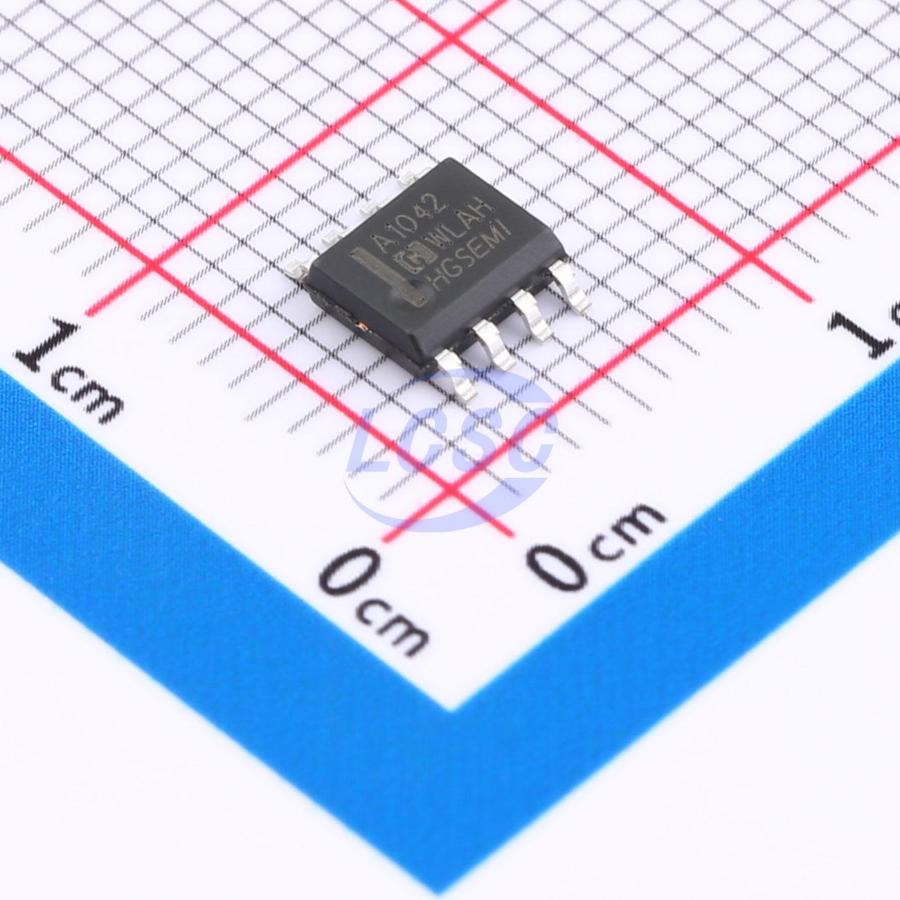

HGA1042M/TR

4.5V~5.5V CAN Transceiver 5Mbps SOP-8 Drivers, Receivers, Transceivers

SOP-8RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: HGA1042M/TR
Store part #: C22461589
Package / case: SOP-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,494 in stock

#C22461589

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹43.25	₹43.25
10+	₹37.81	₹378.10
30+	₹35.43	₹1,062.90
100+	₹32.60	₹3,260.00
500+	₹31.30	₹15,650.00
1,000+	₹30.43	₹30,430.00

Quantity (min 1)

1 × ₹43.25

₹43.25

excl. GST

₹51.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HGA1042M/TR

₹43.25 for 1 + GST

Specifications

Voltage - Supply: 4.5V~5.5V
Type: CAN Transceiver
Data Rate: 5Mbps
Features: Low-power mode;Wake-up function;TXD dominant timeout;Undervoltage Protection;Thermal shutdown protection;Short-Circuit Protection;ESD protection
Supply Current: 70mA
Quiescent Supply Current: 10uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.27 g

Overview

HGA1042 is an interface circuit between a CAN protocol controller and the physical bus, providing differential transmit and receive capabilities for the bus CAN controller at speeds up to 5 Mbaud. The device features excellent EMC performance, ideal passive behavior in the unpowered state, and low-power management with remote wake-up functionality. Pin-compatible with TJA1042, the HGA1042-3 supports an I/O voltage range compatible with 3.3V to 5V MCUs. This product is suitable for automotive and industrial control applications.

Applications

Automotive electronics
Industrial control

Key features

ISO11898 compliant
Meets automotive Grade 1 requirements
High-speed communication up to 5Mbaud
Low electromagnetic emissions (EME)
Differential receiver with wide common-mode range, low EME, and high EMI immunity
Standby mode with remote wake-up via bus
SPLIT voltage output for stable recessive bus level and improved EME performance
Standby bus dominant timeout
TXD dominant timeout
3.3V to 5V MCU I/O voltage range support (HGA1042-3)
Undervoltage protection on VCC and VIO supplies
Thermal protection
±8kV ESD protection on bus pins
Bus DC fault tolerance (±70V)
