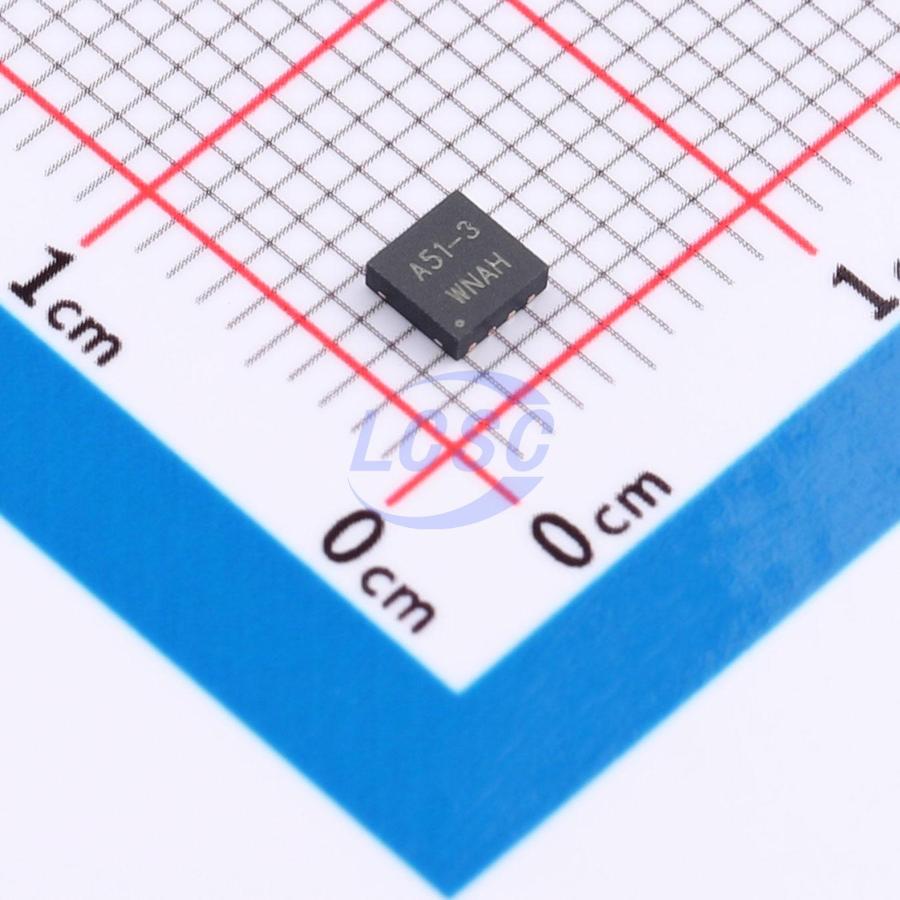

HGA1051-3DQ3/TR

The HGA1051 high-speed CAN transceiver provides an interface between a CAN protocol controller and the physical two-wire CAN bus. Designed for high-speed CAN applications in the automotive industry, it offers differential transmit and receive capability for CAN protocol controllers. The HGA1051 features enhanced EMC and ESD performance, along with the following characteristics: ideal passive behavior on the CAN bus when the supply is switched off; variants with a V10 pin for direct interfacing with microcontrollers operating at supply voltages from 3.3V to 5V. The HGA1051 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 through SAE J2284-5. This implementation supports reliable communication at data rates up to 5Mbps during the CAN FD fast phase.

Applications

• Automotive & Transportation
• Heavy Machinery ISOBUS Applications

Key features

• Compliant with ISO 11898-2:2016 and ISO 11898-5:2007 physical layer standards
• All devices support Classic CAN and 5Mbps CAN FD
• I/O voltage range supports 3.3V and 5V microcontrollers
• Ideal passive behavior when unpowered
• ESD protection up to ±15kV
• Bus fault protection: ±70V
• Undervoltage protection
• Driver dominant timeout
• Thermal shutdown protection
• Receiver common-mode input voltage: ±30V
• Available in SOP-8 and DFN-8 3×3mm packages
