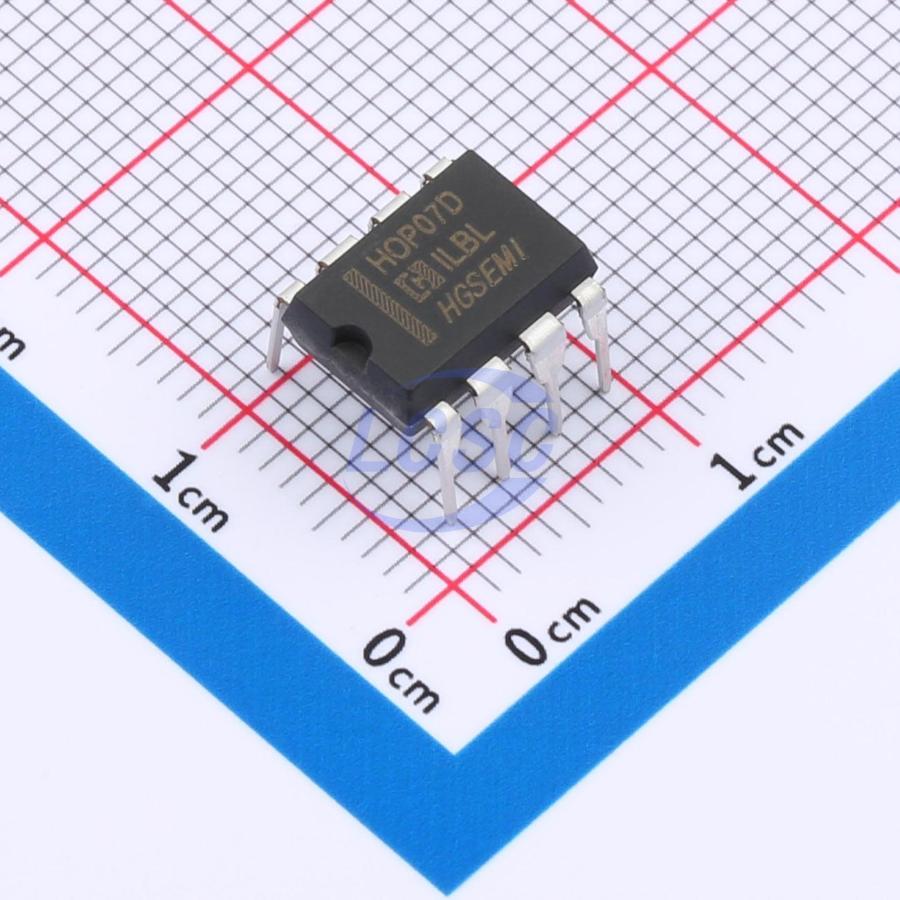

HGSEMI

HGOP07DN

Standard (General Purpose) Amplifier 1 Circuit DIP-8

DIP-8RoHSActive

Low Offset Single Operational Amplifier

Manufacturer: HGSEMI
Manufacturer part #: HGOP07DN
Store part #: C22446760
Package / case: DIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,365 in stock

#C22446760

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹28.27	₹141.35
50+	₹21.92	₹1,096.00
150+	₹19.21	₹2,881.50
500+	₹15.82	₹7,910.00
2,000+	₹14.31	₹28,620.00
4,000+	₹13.40	₹53,600.00

Quantity (min 5, multiples of 5)

5 × ₹28.27

₹141.35

excl. GST

₹166.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

HGOP07DN

₹141.35 for 5 + GST

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 150uV
Input Offset Current(Ios): 8nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 28nA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Quiescent Current: 3.8mA
Gain Bandwidth Product: 500kHz
Dual Supply: -18V~-3V;3V~18V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.822 g

Overview

HGOP07 is a high-precision op-amp with a maximum offset voltage of 150μV and a gain of 200V/mV. It is therefore particularly well suited for instrumentation applications. The HGOP07 features a wide input voltage range (±13V) and a CMRR of over 100dB, while maintaining excellent linearity and gain accuracy in high closed-loop gain circuits.
