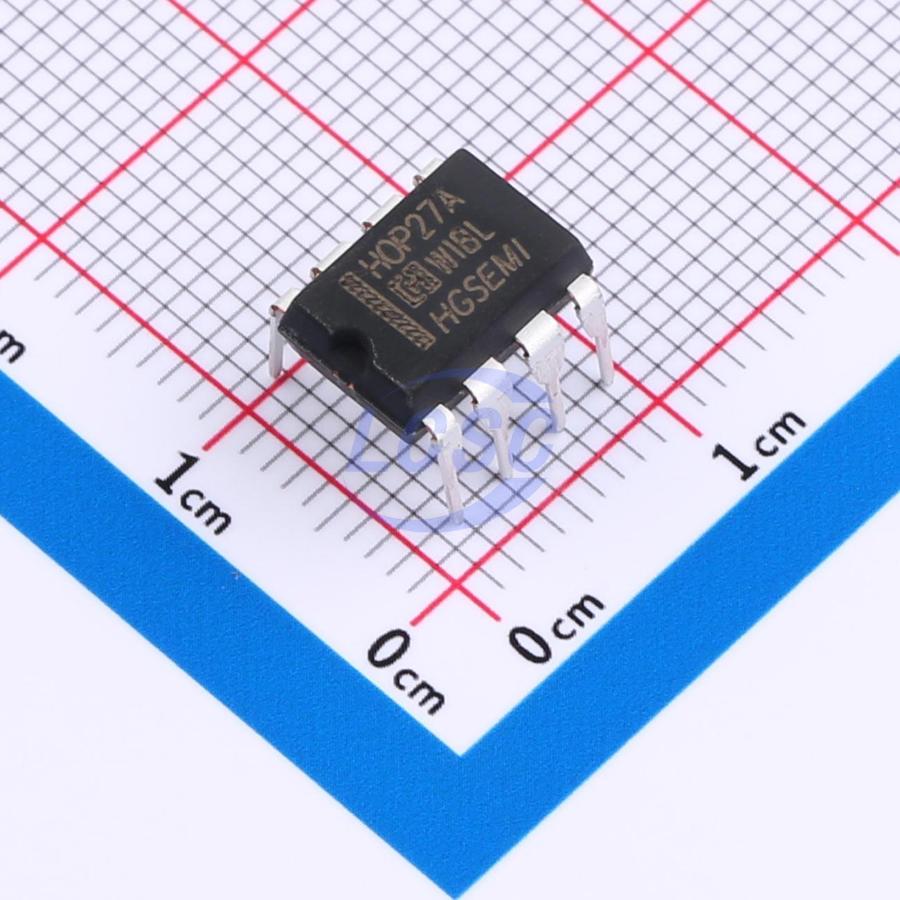

HGSEMI

HGOP27AN

3.8mA 8MHz 1 150uV 28nA 100dB DIP-8 Instrumentation, Op Amps, Buffer Amps

DIP-8RoHSActive

Low-noise, high-speed, and precise operational amplifier

Manufacturer: HGSEMI
Manufacturer part #: HGOP27AN
Store part #: C47411536
Package / case: DIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,904 in stock

#C47411536

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹92.93	₹92.93
10+	₹82.41	₹824.10
50+	₹77.26	₹3,863.00
100+	₹72.12	₹7,212.00
500+	₹68.89	₹34,445.00
1,000+	₹67.39	₹67,390.00

Quantity (min 1)

1 × ₹92.93

₹92.93

excl. GST

₹109.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

HGOP27AN

₹92.93 for 1 + GST

Specifications

Quiescent Current: 3.8mA
Gain Bandwidth Product: 8MHz
Number of Channels: 1
Vos - Input Offset Voltage: 150uV
Input Offset Current(Ios): 8nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 28nA
Common Mode Rejection Ratio(CMRR): 100dB
Dual Supply: -18V~-3V;3V~18V
Input Offset Voltage Drift(Vos TC): 1.8uV/℃

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.825 g

Overview

HGOP27 is a high-precision op-amp with a maximum offset voltage of 150 μV and a gain of 200 V/mV. As such, HGOP27 is particularly well-suited for instrumentation and similar applications. With a wide input voltage range of ±13V and a CMRR exceeding 100 dB, the HGOP27 maintains excellent linearity and gain accuracy even in high closed-loop gain circuits.
