HGSEMIDatasheet (PDF)

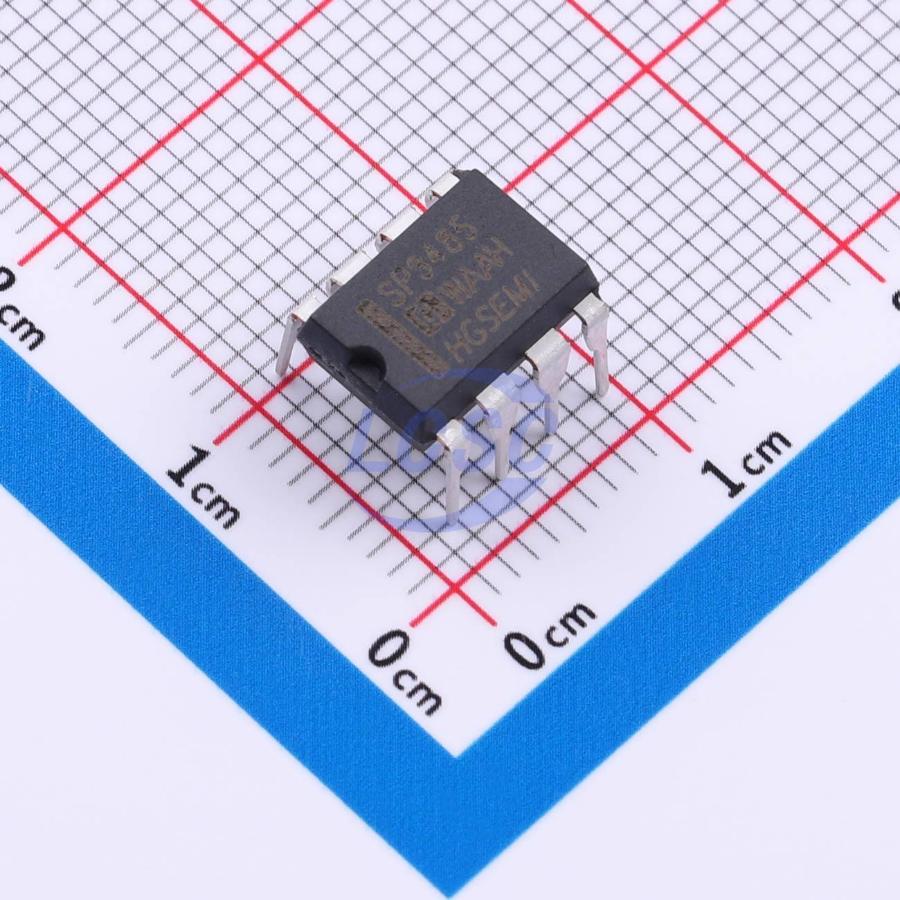

HGSP3485EIN
Transceiver 10Mbps 256 DIP-8 Drivers, Receivers, Transceivers
DIP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGSP3485EIN
- Store part #
- C52120844
- Package / case
- DIP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C52120844
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.37 | ₹146.85 |
| 50+ | ₹23.19 | ₹1,159.50 |
| 150+ | ₹20.53 | ₹3,079.50 |
| 500+ | ₹17.24 | ₹8,620.00 |
| 2,000+ | ₹15.76 | ₹31,520.00 |
| 4,000+ | ₹14.87 | ₹59,480.00 |
5 × ₹29.37
₹146.85
excl. GST
₹173.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
HGSP3485EIN
₹146.85 for 5 + GST
Specifications
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+105℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 630uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.897 g
Overview
HGSP3485 is a high-speed transceiver for RS-485 communication, incorporating one driver and one receiver. The device features a fail-safe circuit that guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that if all transmitters on the terminated bus are disabled (high impedance), the receiver output will be logic high. The HGSP3485 driver has an unlimited slew rate, enabling data transmission speeds up to 10Mbps. The device features a 1/8 unit load receiver input impedance, allowing up to 256 transceivers to be connected on the bus.
Applications
- RS-485 communication
- Level shifter
- Security devices
- Industrial control equipment
- Energy meters
Key features
- Fail-safe circuitry
- Low power consumption
- Up to 256 transceivers on bus
- Maximum data rate: 10Mbps (Vcc=5V)
- ESD: ≥ ±15kV
- Available in DIP-8, SOP-8, MSOP-8, and DFN-8 packages
