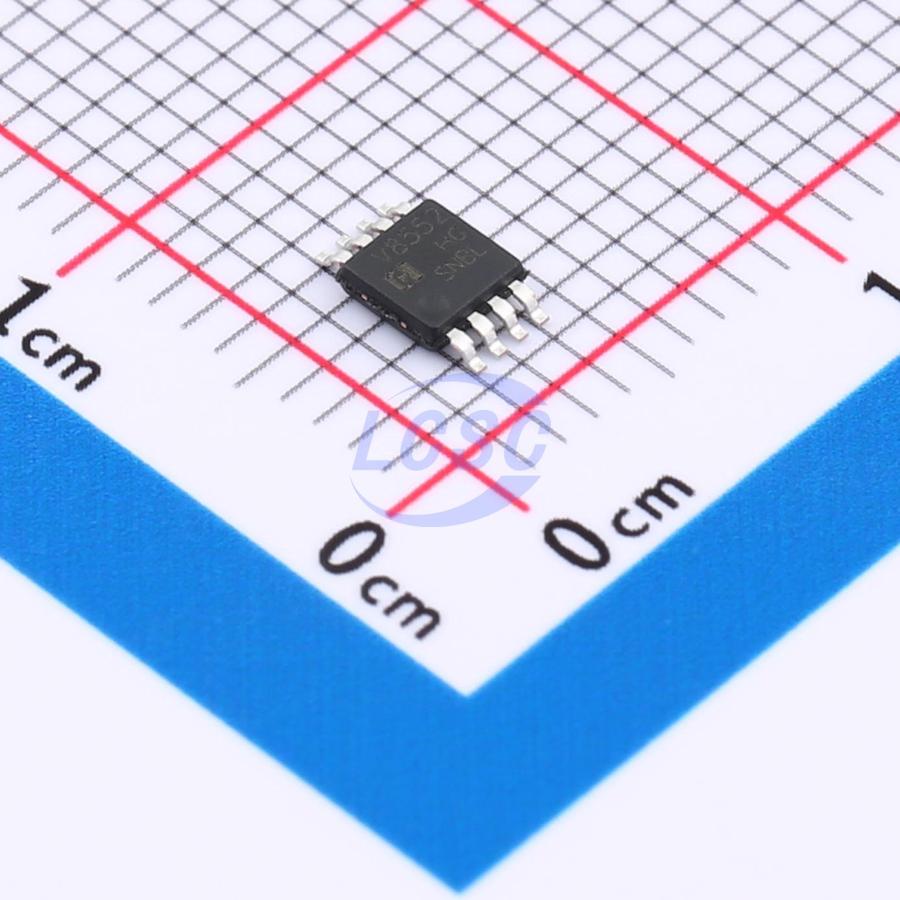

HGV8552MM/TR

65mA 1uV 0.95V/us 110dB 20pA 180uA 1.8MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

1.8MHz Zero-Drift CMOS Rail IO Opamp

Manufacturer: HGSEMI
Manufacturer part #: HGV8552MM/TR
Store part #: C19193463
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,690 in stock

#C19193463

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
1+	₹44.56	₹44.56
10+	₹38.25	₹382.50
30+	₹35.64	₹1,069.20
100+	₹32.39	₹3,239.00
1,000+	₹31.51	₹31,510.00

Quantity (min 1)

1 × ₹44.56

₹44.56

excl. GST

₹52.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HGV8552MM/TR

₹44.56 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 65mA
Vos - Input Offset Voltage: 1uV
Slew Rate: 0.95V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 20pA
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 180uA
Gain Bandwidth Product: 1.8MHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 38nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.187 g
