HGSEMIDatasheet (PDF)

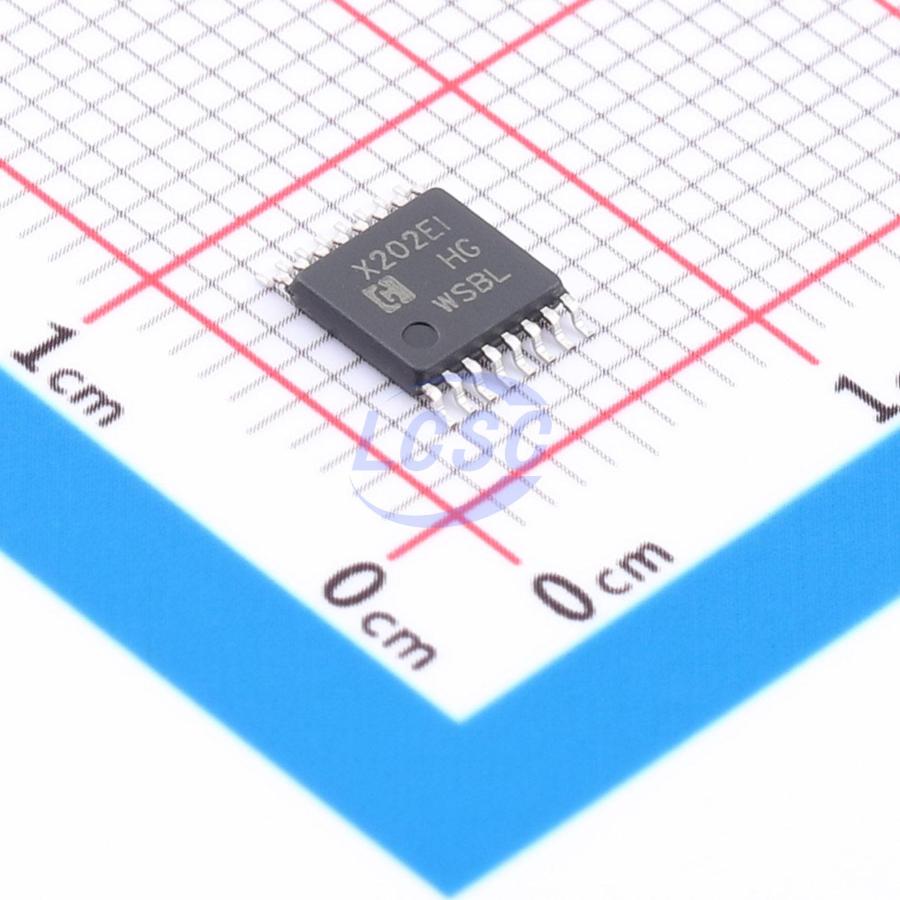

HGX202EIMT/TR
Transceiver 5V 120Kbps TSSOP-16 Drivers, Receivers, Transceivers
TSSOP-16RoHSActive
5-V dual RS-232 line driver/receiver with ±15-kV ESD protection
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGX202EIMT/TR
- Store part #
- C46061296
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,475 in stock
#C46061296
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.77 | ₹158.85 |
| 50+ | ₹27.74 | ₹1,387.00 |
| 150+ | ₹26.02 | ₹3,903.00 |
| 500+ | ₹23.87 | ₹11,935.00 |
| 2,500+ | ₹22.91 | ₹57,275.00 |
| 5,000+ | ₹22.33 | ₹1,11,650.00 |
5 × ₹31.77
₹158.85
excl. GST
₹187.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HGX202EIMT/TR
₹158.85 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 5V
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 15mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.33 g
Overview
This device contains two line drivers, two line receivers, and a dual charge pump circuit, providing ±15-kV ESD protection between pins, including serial port connection pins and ground pins. The device meets TIA/EIA-232-F standard requirements and provides an electrical interface between asynchronous communication controllers and serial port connectors. The charge pump and four small external capacitors support device operation from a single 5-V supply. The device supports data signaling rates up to 120 kbit/s, with a maximum driver output slew rate of 30 V/μs.
Applications
- Battery-powered systems
- Personal digital assistants
- Notebooks and laptop computers
- Palmtop computers
- Handheld devices
Key features
- RS-232 bus pins with ±15kV ESD protection (Human Body Model)
- Meets or exceeds TIA/EIA-232-F and ITU v.28 standards
- 5-V VCC supply
- Data rate up to 120 kbit/s
- External capacitors... 4 × 0.1 μF
- Latch-up immunity exceeds 100mA per JESD 78, Class II
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP232EIMT/TR#C5310857HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 1,215 | ₹31.71 · 1,215 in stock | View |
 | SP232ECMT/TR#C5310858HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 2,480 | ₹40.56 · 2,480 in stock | View |
 | MAX232ECMT/TR#C5310856HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 1,062 | ₹62.63 · 1,062 in stock | View |
 | MAX232EIMT/TR#C5310855HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 1,535 | ₹45.76 · 1,535 in stock | View |
 | HGX232EIMT/TR#C5310859HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 2,405 | ₹43.37 · 2,405 in stock | View |
