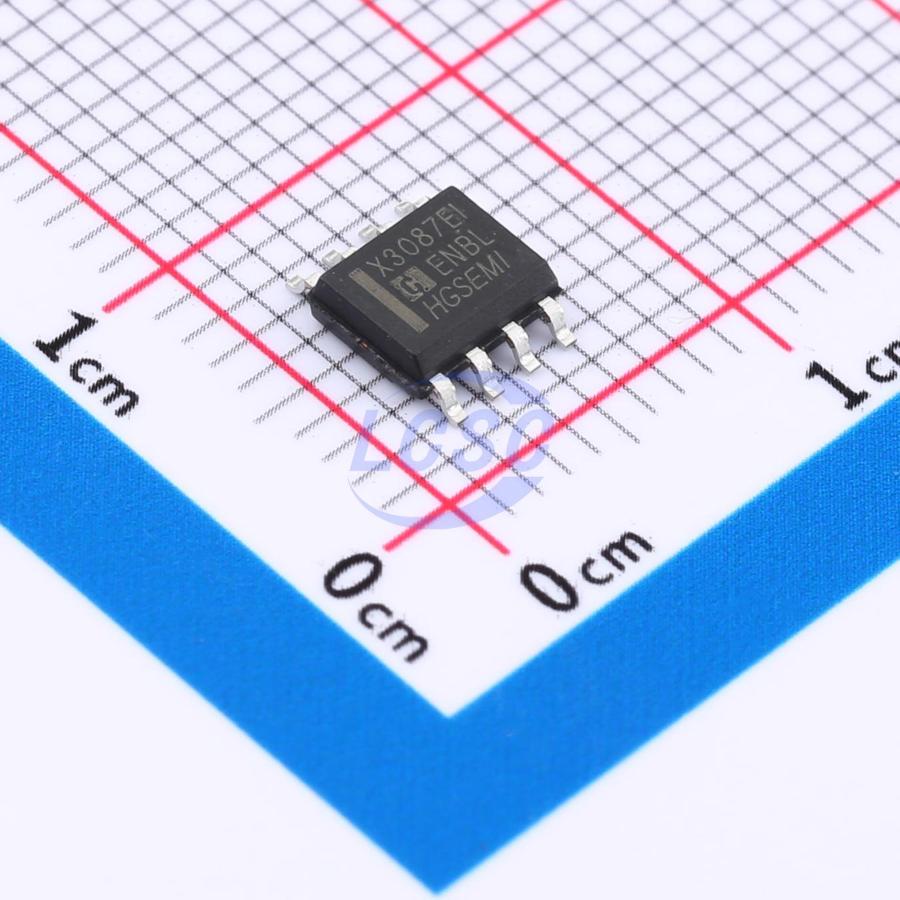

HGX3087EIM/TR RS-485/RS-422 Transceiver

Manufacturer: HGSEMI
Manufacturer part #: HGX3087EIM/TR
Store part #: C2902470
Package / case: SOP-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,997 in stock

#C2902470

Stock & price checked 33 h ago

Quantity	Unit price	Pack price
1+	₹69.68	₹69.68
10+	₹61.97	₹619.70
30+	₹58.11	₹1,743.30
100+	₹54.24	₹5,424.00
500+	₹51.03	₹25,515.00
1,000+	₹49.74	₹49,740.00

Quantity (min 1)

1 × ₹69.68

₹69.68

excl. GST

₹82.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HGX3087EIM/TR

₹69.68 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 4.5V~5.5V
Type: Transceiver
Data Rate: 16Mbps
Number of Nodes: 256
Operating Temperature: -40℃~+85℃
ESD Protect: ±16kV
Communication Mode: Full-Duplex
Number of Drivers: 1
Features: Hot-swap protection;Overcurrent Protection;Thermal shutdown protection
Number of Receivers: 1
Quiescent Supply Current: 530uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.21 g

Overview

HGX3080E - HGX3088E are +5.0V-powered RS-485/RS-422 transceivers with ±16kV ESD protection. They feature a failsafe circuit that drives the receiver output to a logic high when the receiver inputs are open or shorted, or when all transmitters connected to a terminated bus are disabled. The entire family supports hot-plug capability, eliminating bus fault transients during power-up or hot insertion. The HGX3080E - HGX3088E drivers deliver an exceptionally large output voltage swing (exceeding 2.1V into a 54Ω load), ensuring greater noise margin. The HGX3080E - HGX3085E feature slew-rate-limited drivers that reduce EMI and reflections caused by improperly terminated cables, enabling error-free data transmission at up to 500kbps. The HGX3086E/HGX3087E/HGX3088E drivers have no slew-rate limitation, supporting data rates up to 16Mbps. The HGX3082E/HGX3085E/HGX3088E are designed for half-duplex communication; the HGX3080E/HGX3081E/HGX3083E/HGX3084E/HGX3086E/HGX3087E are designed for full-duplex communication. All devices feature 1/8 unit load receiver input impedance, allowing up to 256 transceivers on the bus. The HGX3081E/HGX3082E/HGX3084E/HGX3085E/HGX3087E/HGX3088E are available in DIP-8, SOP-8, and MSOP-8 packages; the HGX3080E/HGX3083E/HGX3086E are available in DIP-14, SOP-14, and TSSOP-14 packages. These devices are offered in commercial and industrial temperature ranges.

Applications

RS-422/RS-485 communication
Digital electric/water meters, industrial control, industrial embedded computers and peripherals, security surveillance systems
Routers and switches
Instrumentation, level translation
EMI-sensitive transceiver applications

Key features

True fail-safe receiver, low-power shutdown mode (except HGX3081E/HGX3084E/HGX3087E)
DE and RE (active low) with hot-swap input structure
+5.0V supply voltage, supports up to 256 transceivers on the bus, slew-rate limiting for error-free data transmission (except HGX3086E/HGX3087E/HGX3088E)
Enhanced ESD protection on I/O pins (±16kV IEC 61000-4-2 model)
Direct replacement for MAX3080–MAX3088E, MAX13080–88E series and SN65HVD3085, SN75HVD3085 series
