HL116
2V~5V SOT-23-6L Motor Drivers, Controllers
SOT-23-6LRoHSActive
- Manufacturer
- HL
- Manufacturer part #
- HL116
- Store part #
- C50331904
- Package / case
- SOT-23-6L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C50331904
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.76 | ₹95.20 |
| 200+ | ₹3.78 | ₹756.00 |
| 600+ | ₹3.29 | ₹1,974.00 |
| 3,000+ | ₹2.94 | ₹8,820.00 |
| 9,000+ | ₹2.65 | ₹23,850.00 |
| 21,000+ | ₹2.50 | ₹52,500.00 |
20 × ₹4.76
₹95.20
excl. GST
₹112.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HL116
₹95.20 for 20 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Active braking function
- Voltage - Supply
- 2V~5V
- Technology
- Yes
- Supply Current (Iq)
- 35uA
- Output Current
- 500mA
- Peak Current
- 800mA
- RDS(on)
- 800mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.037 g
Overview

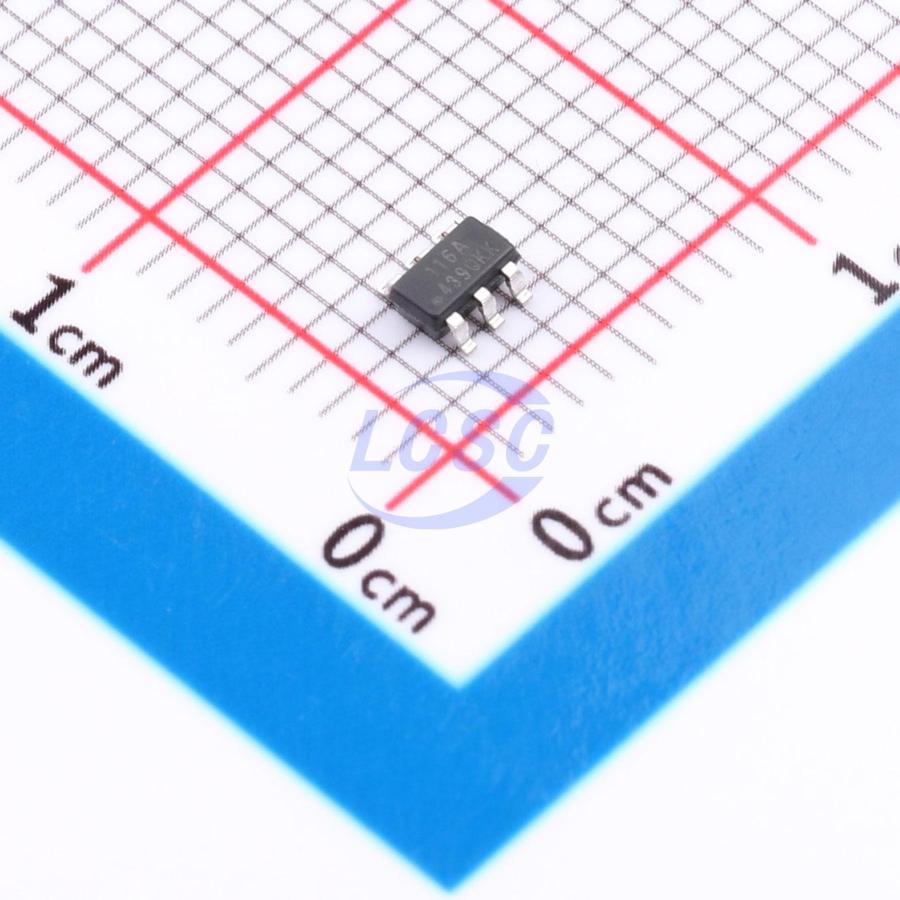

HL116 is a single-channel H-bridge DC motor driver IC featuring PWM input and low on-resistance design, housed in a SOT23-6 package. It delivers a continuous output current of 0.5A with a peak current of 0.8A, with a recommended operating voltage range of 2~5V. The device is suitable for electronic door locks, electric toothbrushes, toys, and other low-voltage or battery-powered applications.
Applications
- Electronic locks
- Electric toothbrushes
- Toy motor drives
Key features
- Single-channel integrated power MOS full-bridge driver
- Operating voltage range: 2–5V
- Supports forward, reverse, stop, and brake functions
- Low on-resistance: sum of high-side and low-side (HS+LS) is 0.8Ω
- Built-in thermal shutdown protection with hysteresis
- Maximum continuous output current up to 0.5A, peak current 0.8A
- No external bulk filter capacitor required; small SMD capacitor sufficient
- SOT23-6L package
