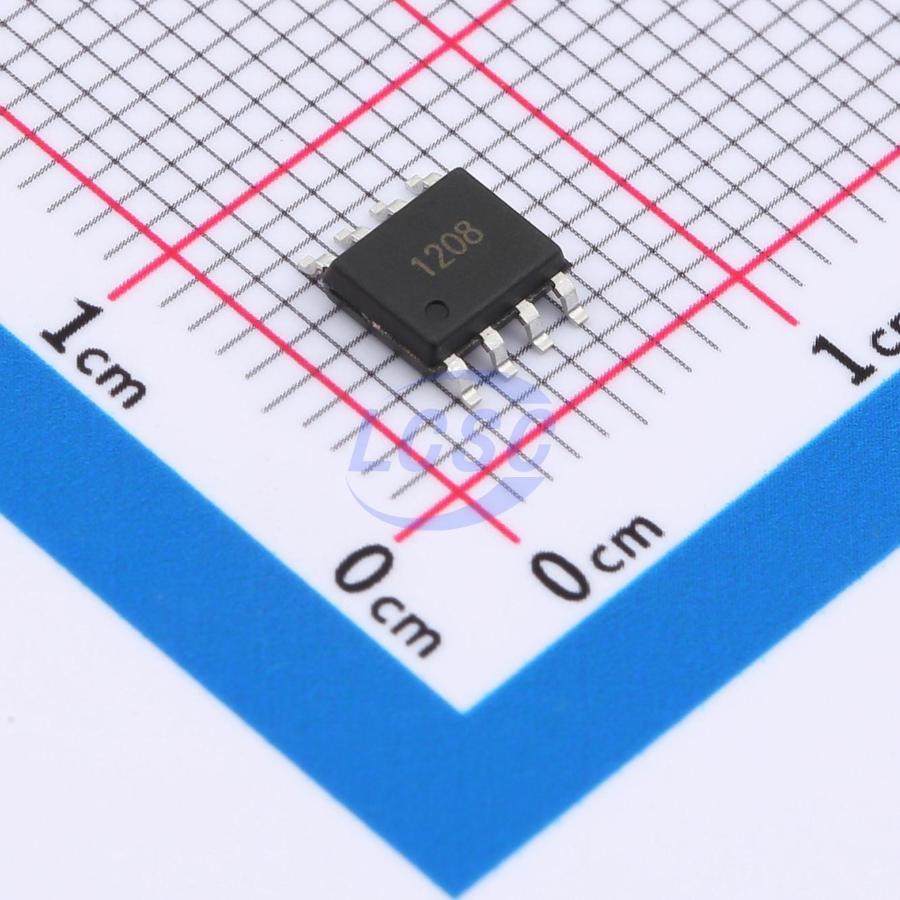

HL118
1.8V~8.5V SOP-8 Motor Drivers, Controllers RoHS
SOP-8ROHS CompliantActive
Single Channel DC Motor Driver
- Manufacturer
- HL
- Manufacturer part #
- HL118
- Store part #
- C42372074
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,650 in stock
#C42372074
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.39 | ₹63.90 |
| 100+ | ₹5.15 | ₹515.00 |
| 300+ | ₹4.54 | ₹1,362.00 |
| 1,000+ | ₹4.06 | ₹4,060.00 |
| 4,000+ | ₹3.23 | ₹12,920.00 |
| 8,000+ | ₹3.04 | ₹24,320.00 |
10 × ₹6.39
₹63.90
excl. GST
₹75.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HL118
₹63.90 for 10 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Active braking function
- Voltage - Supply
- 1.8V~8.5V
- Operating Temperature
- -20℃~+60℃
- Supply Current (Iq)
- 100nA
- Peak Current
- 3A
- RDS(on)
- 500mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.196 g
Overview
HL118 is a single- channel DC motor driver designed by COMS technology. It integrates H bridge circuit inside. Through different input logic of two signal input terminals, It can realize four functions of motor including positive rotation, reverse rotation, brake and standby. Mainly for toys, electric toothbrush, intelligent lock and other consumer motor applications.
Applications
- Electronic lock
- Electric toy
- Electric toothbrush
Key features
- Wide operation voltage: VDD = 1.8 ~ 8.5V
- Continuous current: 1.8A, peak current: 3A
- Low standby current: 0.1uA (Typical) @ VDD = 5V
- Over- temperature protection(OTSD)
- Low on resistance ~0.50Ω
- ESD 8KV (HBM)
