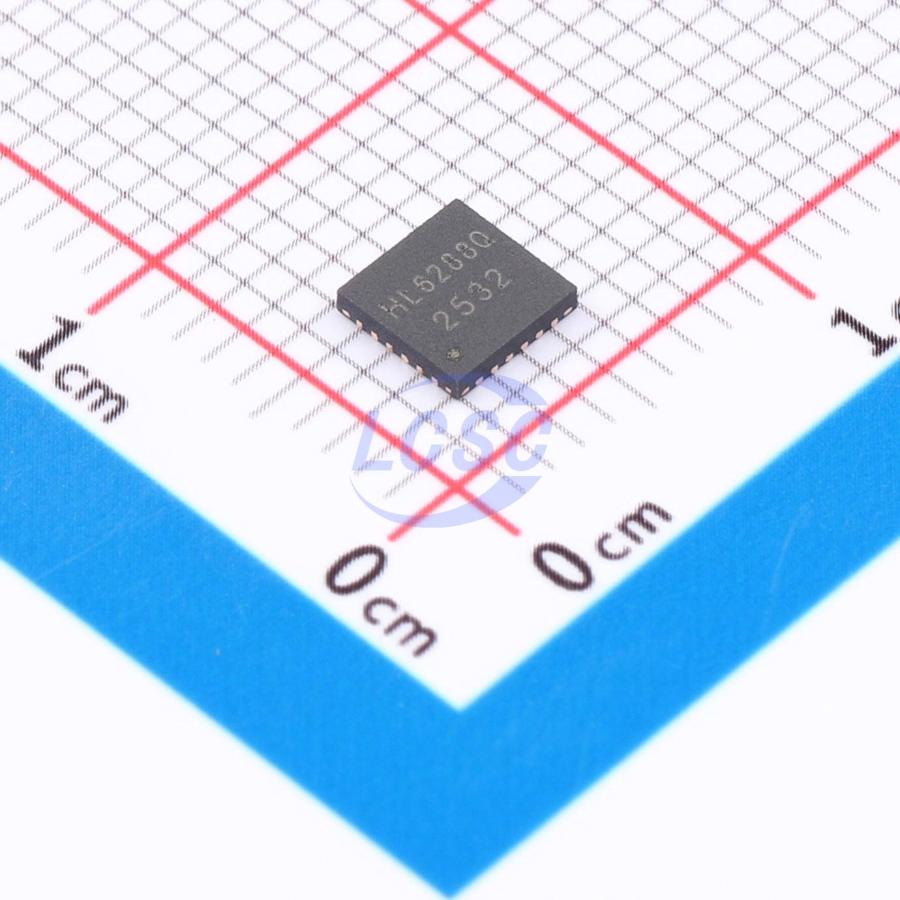

HL6288Q
5V~20V 1.8A 1.5A QFN-24(4x4) Gate Drivers
- Manufacturer
- HL
- Manufacturer part #
- HL6288Q
- Store part #
- C50331902
- Package / case
- QFN-24(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,490 in stock
#C50331902
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.67 | ₹238.35 |
| 50+ | ₹37.81 | ₹1,890.50 |
| 150+ | ₹33.59 | ₹5,038.50 |
| 500+ | ₹28.33 | ₹14,165.00 |
| 2,500+ | ₹25.39 | ₹63,475.00 |
| 6,000+ | ₹23.97 | ₹1,43,820.00 |
5 × ₹47.67
₹238.35
excl. GST
₹281.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
HL6288Q
₹238.35 for 5 + GST
Specifications
- Low Level Delay Time
- 300ns
- High Level Delay Time
- 170ns
- Quiescent Current
- 150uA
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase;Half-Bridge
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
HL6288 is a three-phase 250V high-side and low-side gate driver integrating three independent half-bridges with built-in high-voltage, high-speed power MOSFET drivers. Logic inputs are compatible with standard CMOS or LSTTL outputs, supporting 3.3V/5V/15V logic levels. Recommended VCC operating voltage is 5V to 20V. It includes three low-side ground-referenced channels and three high-side floating channels, with built-in input signal filtering, shoot-through protection, and dead-time control, offering excellent delay matching across channels.
Applications
- Low-voltage variable frequency water pump
- Low-voltage variable frequency fan/low-voltage variable frequency motor driver
- Self-balancing scooter/electric scooter
Key features
- Floating channel design supports up to +250V
- Driver IC supply voltage range: 5V to 20V
- Compatible with 3.3V, 5V, and 15V logic input levels
- Topology: 6-in-1
- VS negative bias down to -8.5V
- Robust negative voltage withstand capability
- Robust common-mode transient noise immunity
- Matched propagation delay across all channels
- Under-voltage lockout (UVLO) on all channels
- Output drive current: 1.5A/1.8A
- Three independent half-bridges with built-in shoot-through protection
- Built-in 200ns dead time
- Built-in input filter
- Positive logic input with non-inverting input-to-output
