HL8837

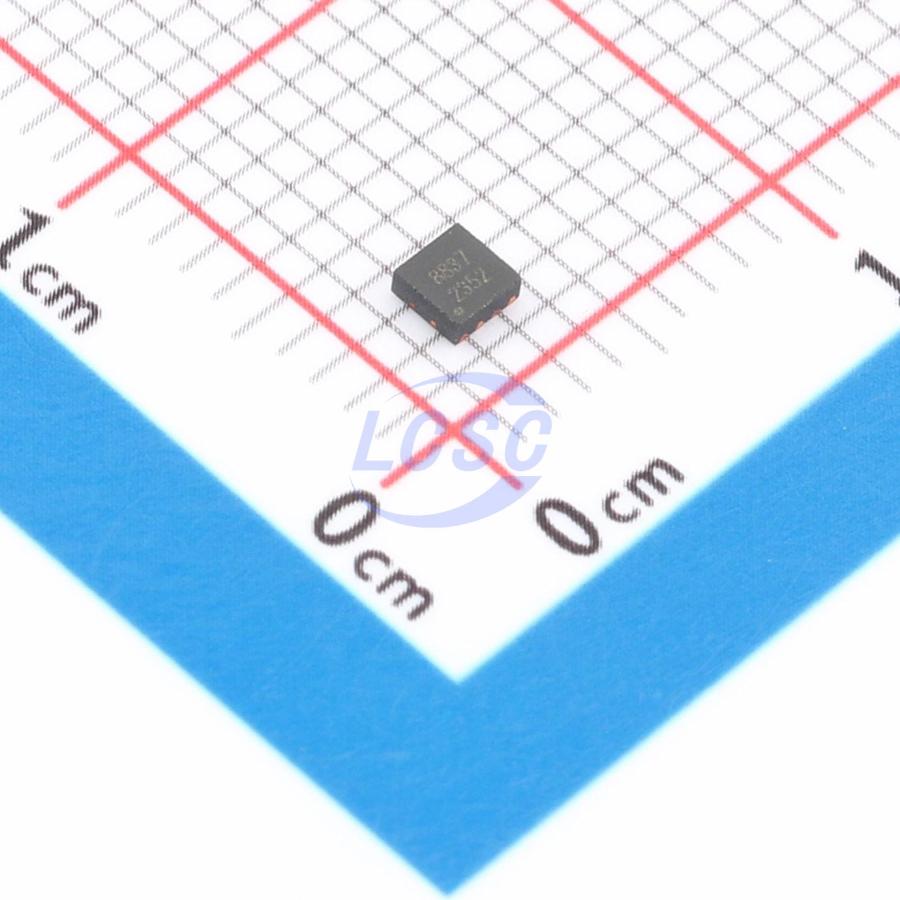

The HL8837 provides an integrated motor driver solution for cameras, DSLR lenses, toys, smart door locks, robots, and other low-voltage or battery-powered motion control applications. The device can drive one DC motor or other loads such as solenoids. The output driver block consists of N-channel power MOSFETs configured as an H-bridge to drive the motor windings. An internal charge pump generates the required gate drive voltage. The HL8837 can deliver up to 1.8A of output current. The motor supply voltage operating range is 0 to 11V, and the device supply voltage range is 1.8V to 5.5V. Internal shutdown functions provide overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature protection. The HL8837 features a PWM (IN/IN) input interface. The HL8837 is fully lead-free, housed in an 8-pin, 2mm×2mm DFN package with 100% lead-free leadframe plating and an exposed thermal pad on the back for improved thermal dissipation.

Applications

• Camera and DSLR lens autofocus
• Office automation equipment
• Toys
• Robotics
• Smart door locks
• All other motion control applications

Key features

• Discrete H-bridge motor driver
• Low MOSFET on-resistance: 280 mΩ (high-side + low-side)
• Overcurrent protection
• Thermal shutdown
• VCC undervoltage lockout
• Automatic fault recovery
• Drives DC motors or other inductive loads
• Motor supply voltage: 0~11V; logic supply voltage: 1.8~5.5V
• Maximum drive current: 1.8A
• Low-power sleep mode controlled by nSLEEP pin; maximum sleep current: 1uA
• Short-circuit protection
• Thermally enhanced SMT compact package with small footprint: DFN8-2x2mm
