HXY MOSFETDatasheet (PDF)

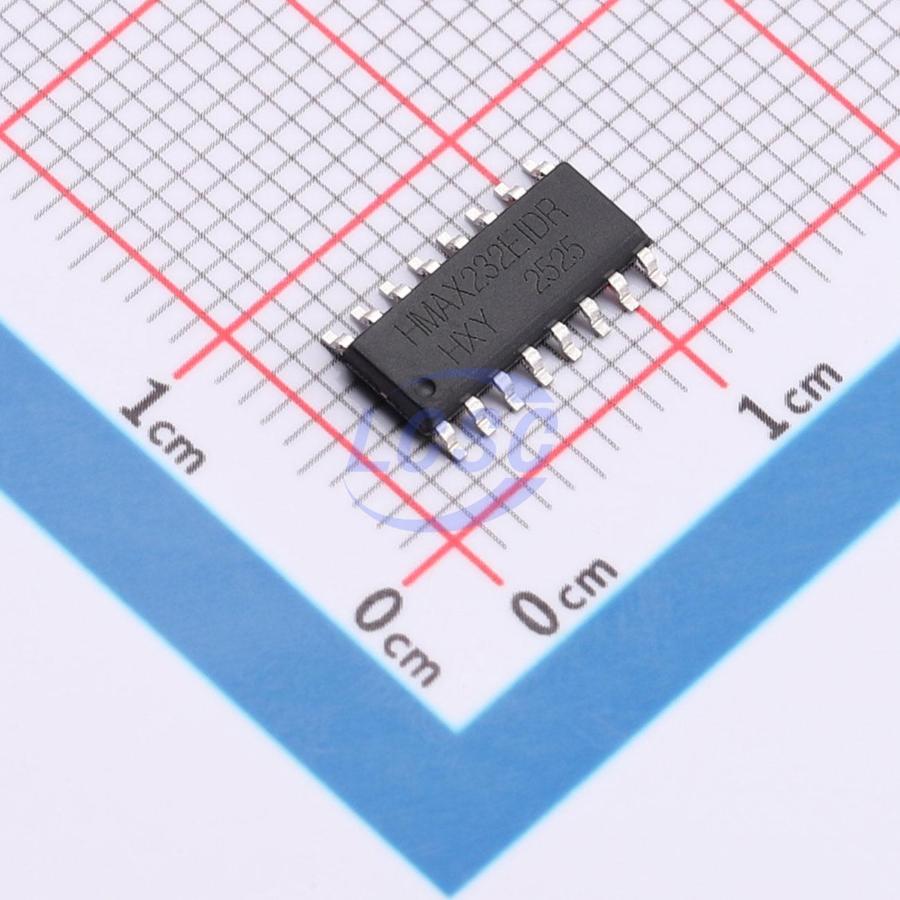

HMAX232EIDR
4.5V~5.5V Transceiver 140Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
Drivers/Receivers
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HMAX232EIDR
- Store part #
- C22396402
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,462 in stock
#C22396402
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.23 | ₹61.23 |
| 10+ | ₹48.20 | ₹482.00 |
| 30+ | ₹42.56 | ₹1,276.80 |
| 100+ | ₹35.39 | ₹3,539.00 |
| 500+ | ₹32.35 | ₹16,175.00 |
| 1,000+ | ₹30.40 | ₹30,400.00 |
1 × ₹61.23
₹61.23
excl. GST
₹72.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HMAX232EIDR
₹61.23 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 140Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
The integrated circuit HMAX232EIDR is designed for high-performance information processing systems and widely used control equipment. Its input voltage levels are compatible with standard CMOS levels.
Applications
- Portable computers
- Battery-powered RS-232 systems
- Interface conversion
- Low-power modems
- Terminal equipment
Key features
- Output voltage levels compatible with C-MOS, N-MOS, and TTL IC input levels.
- Supply voltage range from 2.0 to 6.0×.
- Low input current: 1.0 μA; 0.1 μA at T = 25~℃.
- Output current 24 mA.
- Latch-up current no less than 450~mA at T = 25℃.
- Withstand electrostatic potential no less than 2000V.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP232EEN-HXY#C22386549HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 995 | ₹44.98 · 995 in stock | View |
 | HMAX232ECDR#C22392678HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 97 | ₹71.28 · 97 in stock | View |
 | HMAX232DR#C22392679HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 1,305 | ₹46.56 · 1,305 in stock | View |
 | MAX202-HXY#C22386551HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 58 | ₹54.72 · 58 in stock | View |
 | ADM202-HXY#C22386552HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 34 | ₹73.03 · 34 in stock | View |
