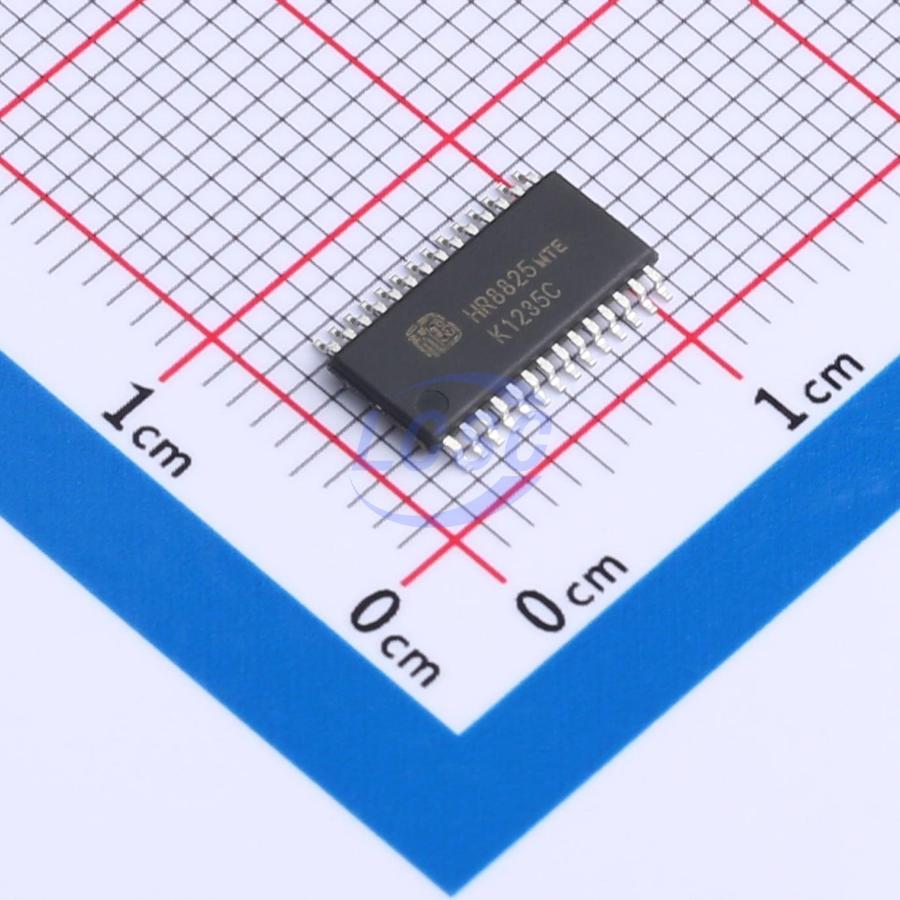

HR8825
HTSSOP-28-EP Motor Drivers, Controllers RoHS
STEP/DIR Microstepping Motor Driver IC
- Manufacturer
- Jiaxing Heroic Elec Tech
- Manufacturer part #
- HR8825
- Store part #
- C2977761
- Package / case
- HTSSOP-28-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,110 in stock
#C2977761
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.00 | ₹164.00 |
| 10+ | ₹137.46 | ₹1,374.60 |
| 30+ | ₹123.11 | ₹3,693.30 |
| 100+ | ₹106.79 | ₹10,679.00 |
| 500+ | ₹99.40 | ₹49,700.00 |
| 1,000+ | ₹96.14 | ₹96,140.00 |
1 × ₹164.00
₹164.00
excl. GST
₹193.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HR8825
₹164.00 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Overcurrent Protection;Over temperature protection;Under-voltage lockout;Dead-time / shoot-through protection
- Technology
- Yes
- Interface
- STEP/DIR
- Operating Temperature
- -20℃~+85℃
- Output Current
- 2.5A
- Step Resolution
- 1;2;4;8;16;32
- RDS(on)
- 400mΩ
- Motor Drive Voltage(Vm)
- 8V~38V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
HR8825 is a stepper motor driver with an integrated translator, designed for use in printers, scanners, and other automated equipment. It can drive bipolar stepper motors in full, half, 1/4, 1/8, 1/16, and 1/32 step modes. The step mode is selected via the logic input pins MODEx. The output drive capability reaches 32V ± 2.5A. The translator is the key to the ease of use of the HR8825. A single pulse input to the STEP pin advances the motor one step, eliminating the need for a phase sequence table, high-frequency control lines, and complex programming interfaces, making it well-suited for applications without a complex microprocessor or where the microprocessor is heavily loaded. An internal synchronous rectification control circuit improves power dissipation during PWM operation. Internal protection features include: over-temperature protection, undervoltage lockout, and overcurrent protection. No special power-up sequencing is required. The HR8825 is offered in an ETSSOP28 package with an exposed pad for improved thermal dissipation. It is a lead-free product that complies with environmental standards.
Key features
- Low on-resistance R<sub>DS(ON)</sub>, 400mΩ (HS+LS)
- Built-in microstepping translator
- Mixed decay mode support
- 8V~32V supply voltage, 2.5A output capability
- Internal undervoltage lockout
- Overcurrent protection
- Overtemperature shutdown
- Built-in 3.3V reference voltage output
- Six step modes, up to 1/32 microstepping
