HXY MOSFETDatasheet (PDF)

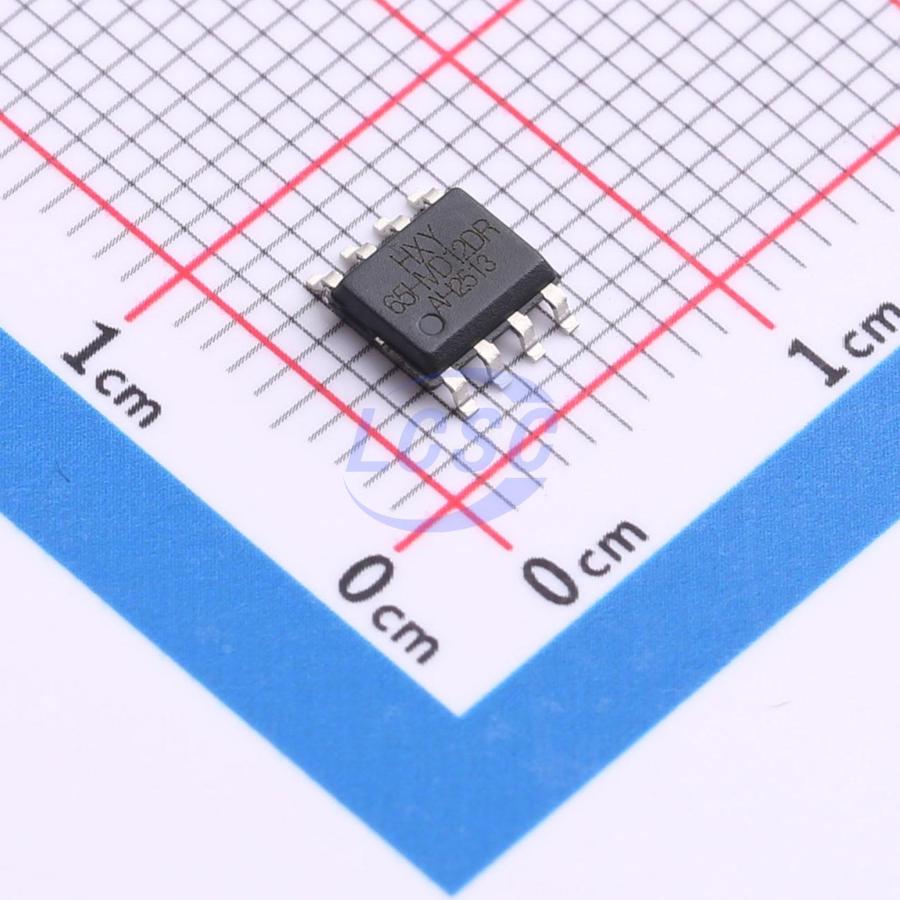

HSN65HVD12DR
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8RoHSActive
RS-485/RS-422 Transceivers
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSN65HVD12DR
- Store part #
- C22392680
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,396 in stock
#C22392680
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.34 | ₹40.34 |
| 10+ | ₹35.35 | ₹353.50 |
| 30+ | ₹33.18 | ₹995.40 |
| 100+ | ₹30.36 | ₹3,036.00 |
| 500+ | ₹29.28 | ₹14,640.00 |
| 1,000+ | ₹28.63 | ₹28,630.00 |
1 × ₹40.34
₹40.34
excl. GST
₹47.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HSN65HVD12DR
₹40.34 for 1 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Number of Nodes
- 256
- Operating Temperature
- 0℃~+85℃
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 900uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
HSN65HVD12DR is a low-power transceiver for RS-485 and RS-422 communications, integrating a driver and receiver in a half-duplex configuration. The driver features an unconstrained slew rate, supporting data rates up to 2.5Mbps. The device operates from a 5V single supply and provides Driver Enable (DE) and Receiver Enable (RE) pins. The driver incorporates short-circuit current limiting and can be placed in a high-impedance state via a thermal shutdown circuit to prevent excessive power dissipation. The receiver inputs feature a fail-safe design that ensures a stable logic-high output when the inputs are open-circuited.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level translator
- Transceiver for EMI-sensitive applications
- Industrial control LAN
Key features
- Three-state outputs
- Half-duplex design
- Bus supports up to 256 transceivers
- SOP-8 package
