HXY MOSFETDatasheet (PDF)
HSN74LVC1G04DBVR
StandardCMOS 1.65V~5.5V 10ns@5V,15pF 10uA 1 SOT-23-5L Gates and Inverters
SOT-23-5LRoHSActive

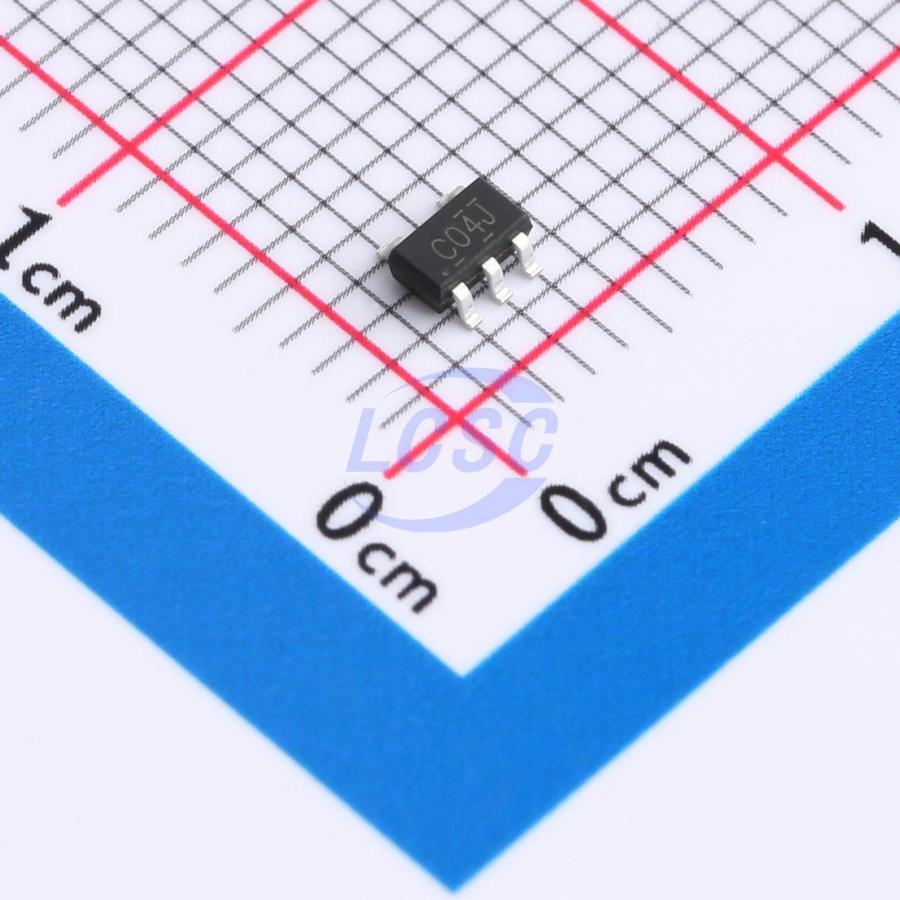

HSN74LVC1G04DBV R NOT gate integrated circuit: Low power consumption, high drive capability, and wide voltage range
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSN74LVC1G04DBVR
- Store part #
- C22396398
- Package / case
- SOT-23-5L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C22396398
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.47 | ₹74.70 |
| 100+ | ₹5.91 | ₹591.00 |
| 300+ | ₹5.13 | ₹1,539.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.07 | ₹24,420.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.47
₹74.70
excl. GST
₹88.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSN74LVC1G04DBVR
₹74.70 for 10 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 10mV;110mV;200mV;350mV
- Propagation Delay
- 10ns@5V,15pF
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.7V
- Input Logic Level - Low
- 700mV
- Output Logic Level - High
- 1.64V;1.47V;2.15V;2.73V;4V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The HSN74LVC1G04DBVR is a single inverter gate IC that implements the logic function Y = A̅. Designed using advanced CMOS process technology, it features low power consumption and high output drive capability, with a supply voltage VCC operating range of 1.65V to 5.5V. Available in multiple compact package options, it is widely applicable in high-end precision instruments, miniaturized low-power handheld devices, and artificial intelligence applications.
Key features
- Low input current: 0.1uA typical
- Low quiescent current: 0.1uA typical
- High output drive capability: >32mA at VCC=4.5V
- Wide operating voltage range: 1.65V to 5.5V
- Package: SOT-23-5L/SO-70-5L
