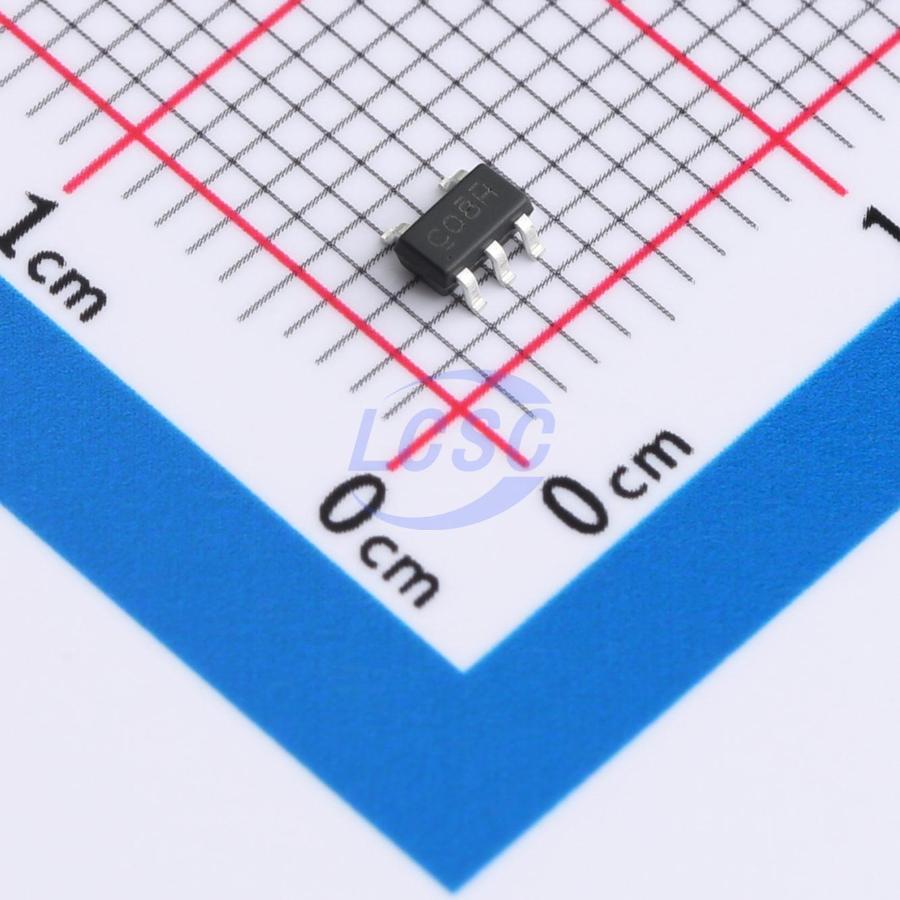

HXY MOSFET

HSN74LVC1G08DBVR

AND Gate IC 1 Channel SOT-23-5L

SOT-23-5LRoHSActive

2-input AND gate integrated circuit

Manufacturer: HXY MOSFET
Manufacturer part #: HSN74LVC1G08DBVR
Store part #: C22396399
Package / case: SOT-23-5L
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,920 in stock

#C22396399

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.12	₹71.20
100+	₹5.61	₹561.00
300+	₹4.86	₹1,458.00
3,000+	₹4.30	₹12,900.00
6,000+	₹3.85	₹23,100.00
9,000+	₹3.63	₹32,670.00

Quantity (min 10, multiples of 10)

10 × ₹7.12

₹71.20

excl. GST

₹84.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HSN74LVC1G08DBVR

₹71.20 for 10 + GST

Specifications

Logic Family: 74LVC
Output Logic Level - High: 1.64V;1.47V;2.15V;2.73V;4V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 32mA
Number of Channels: 1;2
Propagation Delay: 10ns@5V,15pF
Output Logic Level - Low: 10mV;110mV;200mV;350mV
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

The HSN74LVC1G08DBVR is a 2-input AND gate IC that implements the logic functions Y = Ā + B̄ and Y = A × B. Designed with advanced CMOS process technology, it features low power consumption and high output drive capability, operating over a supply voltage VCC range of 1.65V to 5.5V. Available in multiple compact packages, this device is widely applicable in high-end precision instruments, miniaturized low-power handheld devices, and artificial intelligence applications.
