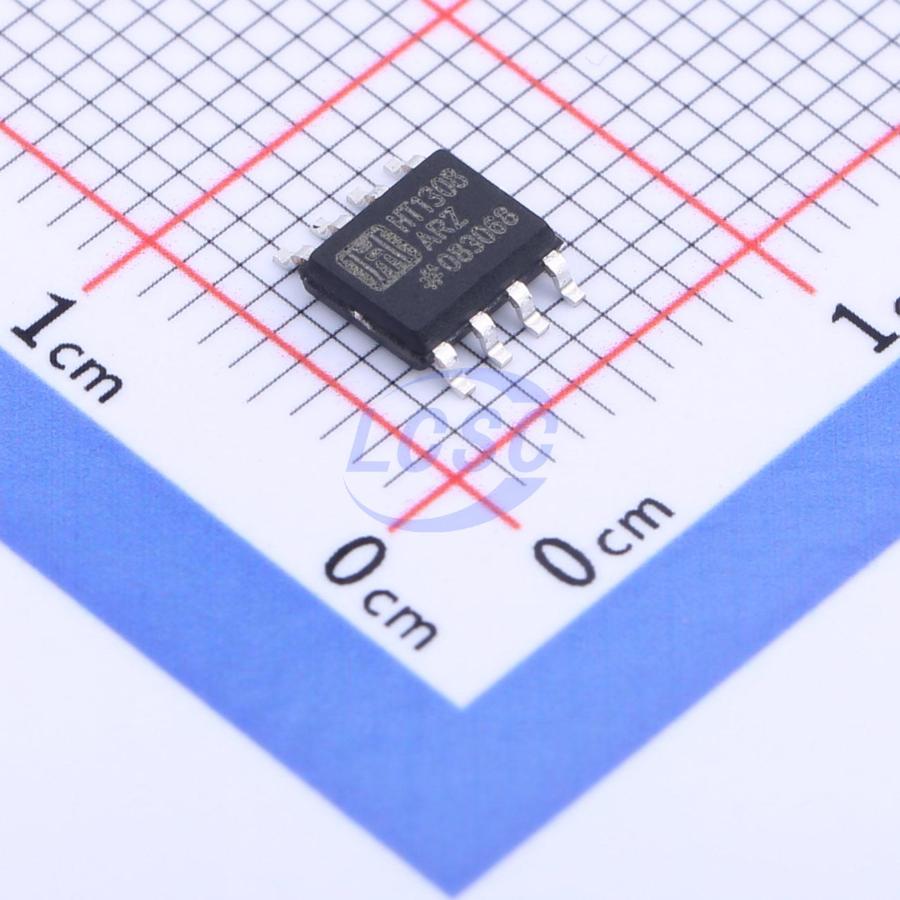

HT1308ARZ
2-Channel Class AB SOP-8 Audio Amplifiers
Headphone Driver IC
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT1308ARZ
- Store part #
- C2895052
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,074 in stock
#C2895052
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹45.84 | ₹45.84 |
| 10+ | ₹40.85 | ₹408.50 |
| 30+ | ₹38.67 | ₹1,160.10 |
| 100+ | ₹36.06 | ₹3,606.00 |
| 500+ | ₹30.85 | ₹15,425.00 |
| 1,000+ | ₹29.99 | ₹29,990.00 |
1 × ₹45.84
₹45.84
excl. GST
₹54.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT1308ARZ
₹45.84 for 1 + GST
Specifications
- Total Harmonic Distortion + Noise (THD+N)
- 0.001%
- Signal-to-Noise Ratio
- 110dB
- Speaker Channels
- 2-Channel
- Class
- Class AB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
HT1308A is a Class AB stereo headphone driver chip utilizing CMOS Technology specially designed for portable digital audio applications. It is housed in an 8- pin DIP or SOP package and is functionally compatible with TDA1308. Pin assignments and application circuit are optimized for lower cost effectiveness and easy PCB Layout.
Applications
- Portable digital audio
- Hi-fi audio system
- Walkman
- CD-ROM
Key features
- CMOS technology
- Low power consumption
- Wide temperature range
- Excellent power supply ripple rejection
- High signal-to-noise ratio, S/N = 110dB
- Low harmonic distortion, THD = 0.001%
- Large output voltage swing
