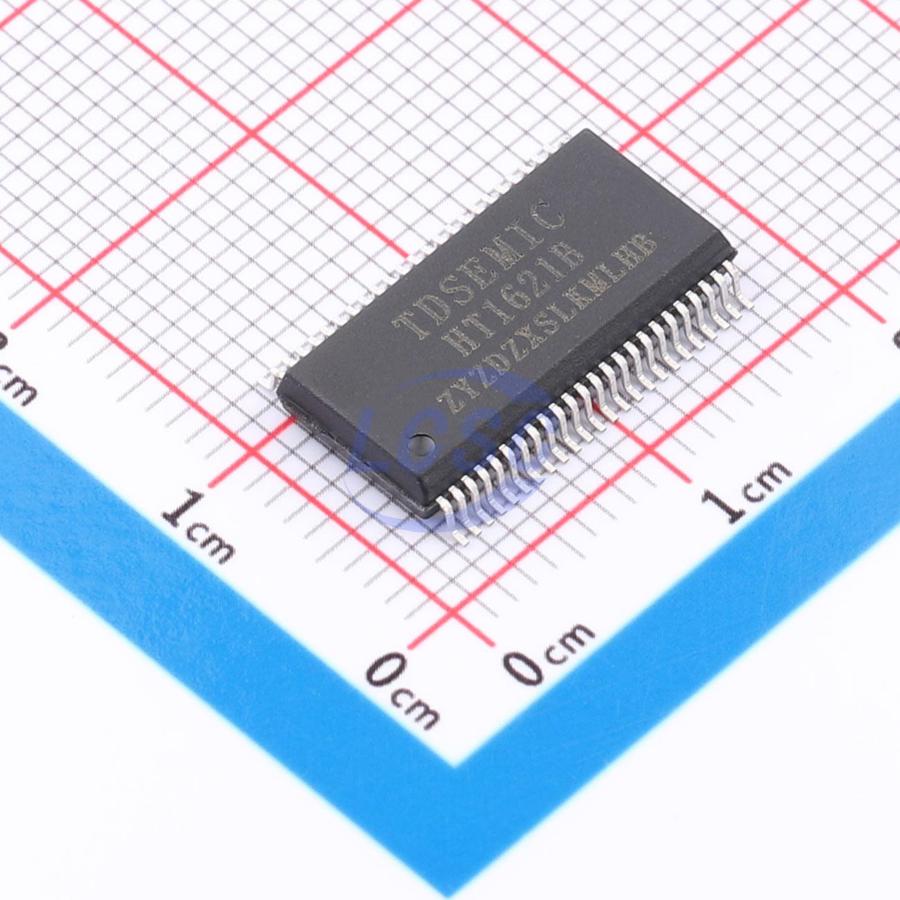

HT1621B-TD

The HT1621B-TD is a peripheral device used for expanding the I/O ports of an MCU. With a display matrix of 32×4, it is a 128-dot matrix memory-mapped multi-function LCD driver circuit. The software features of the HT1621B-TD make it well-suited for LCD display applications, including LCD modules and display subsystems. The interface between the host controller and the HT1621B-TD requires only 3 or 4 ports. The Power Down command reduces power consumption.

Key features

• Operating voltage: 2.4V~5.2V
• Built-in 256kHz RC oscillator
• External 32.768kHz crystal or 256kHz clock input
• 1/2 or 1/3 bias; 1/2, 1/3, or 1/4 duty cycle
• Internal Time base frequency source
• Two selectable buzzer frequencies (2kHz/4kHz)
• Power down command for reduced power consumption
• Internal Time base and WDT watchdog circuit
• Time base/WDT overflow output
• 8 available Time base/WDT clock sources
• 32×4 LCD driver
• 32×4-bit display RAM
• 3-wire serial interface
• Internal LCD drive frequency
• Software configurable
• Data mode and command mode instructions
• Auto-increment R/W address
• Three data access modes
• VLCD pin for LCD voltage adjustment; VLCD voltage must be less than or equal to VDD voltage
