HOLTEK
HT1621B2.4V~5.2V 32 Segment 3-Wire Serial Interface 60uA SSOP-48-300mil Display Drivers
From
₹77.54
1,09,395 in stock
TDSEMICDatasheet (PDF)
HT1621BTR-TD
2.4V~5.2V 32 Segment 3-Wire Serial Interface 60uA SSOP-48-300mil Display Drivers RoHS
SSOP-48-300milROHS CompliantActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT1621BTR-TD
- Store part #
- C42463949
- Package / case
- SSOP-48-300mil
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,615 in stock
#C42463949
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.86 | ₹174.30 |
| 50+ | ₹27.49 | ₹1,374.50 |
| 150+ | ₹24.33 | ₹3,649.50 |
| 1,000+ | ₹20.37 | ₹20,370.00 |
| 2,000+ | ₹18.63 | ₹37,260.00 |
| 5,000+ | ₹17.57 | ₹87,850.00 |
5 × ₹34.86
₹174.30
excl. GST
₹205.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel

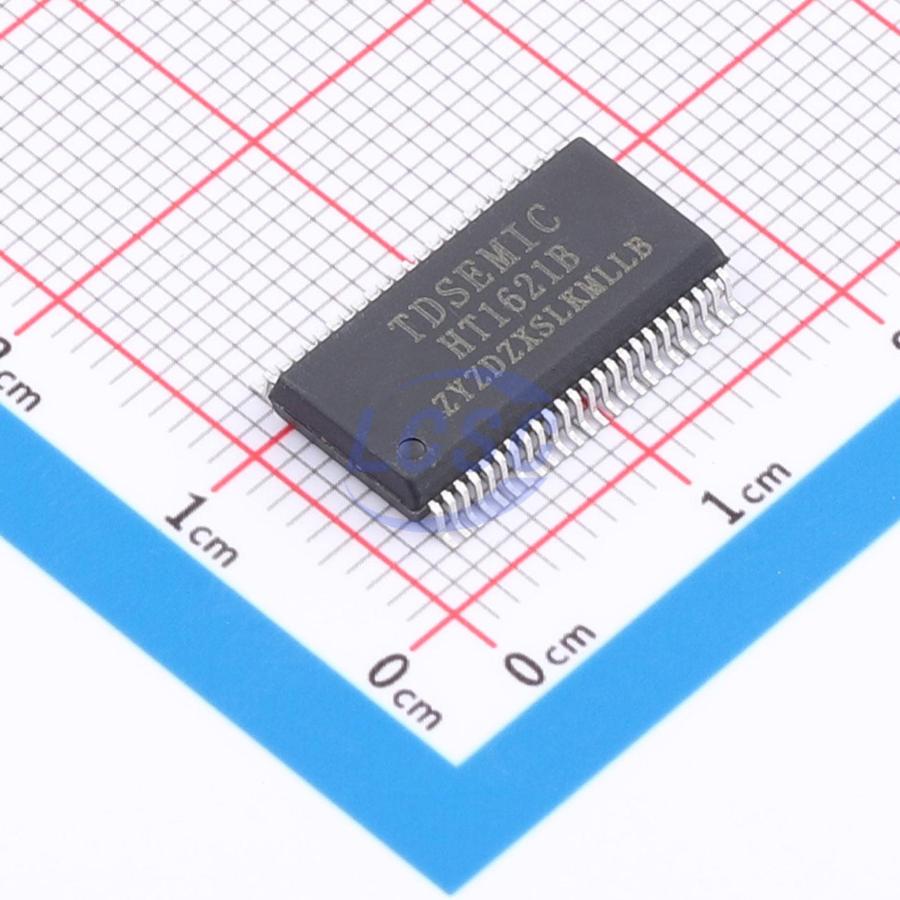

HT1621BTR-TD
₹174.30 for 5 + GST
Specifications
- Voltage - Supply
- 2.4V~5.2V
- Frequency
- 256kHz
- Operating Temperature
- -25℃~+75℃
- Display Configurations(bit)
- 32x4 bit
- Display Configurations(Segment)
- 32 Segment
- Interface
- 3-Wire Serial Interface
- Features
- Built-in oscillator
- Quiescent Current (Iq)
- 0.1uA
- Current - Supply
- 60uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.977 g
Overview
HT1621BTR-TD is a peripheral device used to expand the I/O ports of MCU. The display matrix is 32x4, and it is a 128-dot matrix memory-mapped multi-function LCD driver circuit. The software features of HT1621BTR-TD make it suitable for LCD display applications, including LCD modules and display subsystems. The interface between the main controller and HT1621BTR-TD only requires 3 or 4 ports. The Power down command can reduce power consumption.
Key features
- Operating voltage: 2.4V~5.2V
- Built-in 256kHz RC oscillator circuit
- External 32.768kHz crystal oscillator or 256kHz clock input
- 1/2 or 1/3 bias, 1/2, 1/3 or 1/4 duty cycle
- Internal Time base frequency source
- Two buzzer frequencies available (2kHz/4kHz)
- Power down command to reduce power consumption
- Internal Time base and WDT watchdog circuit
- Time base/WDT overflow output
- 8 Time base/WDT clock sources
- 32x4 LCD driver
- 32x4-bit display RAM
- 3-terminal serial interface
- Internal LCD drive frequency
- Software setting
- Data mode and command mode instructions
- R/W address auto-increment
- Three data access modes
- Adjust the LCD voltage with the VLCD terminal, and the VLCD voltage must be less than or equal to the VDD voltage
