HTCSEMIDatasheet (PDF)

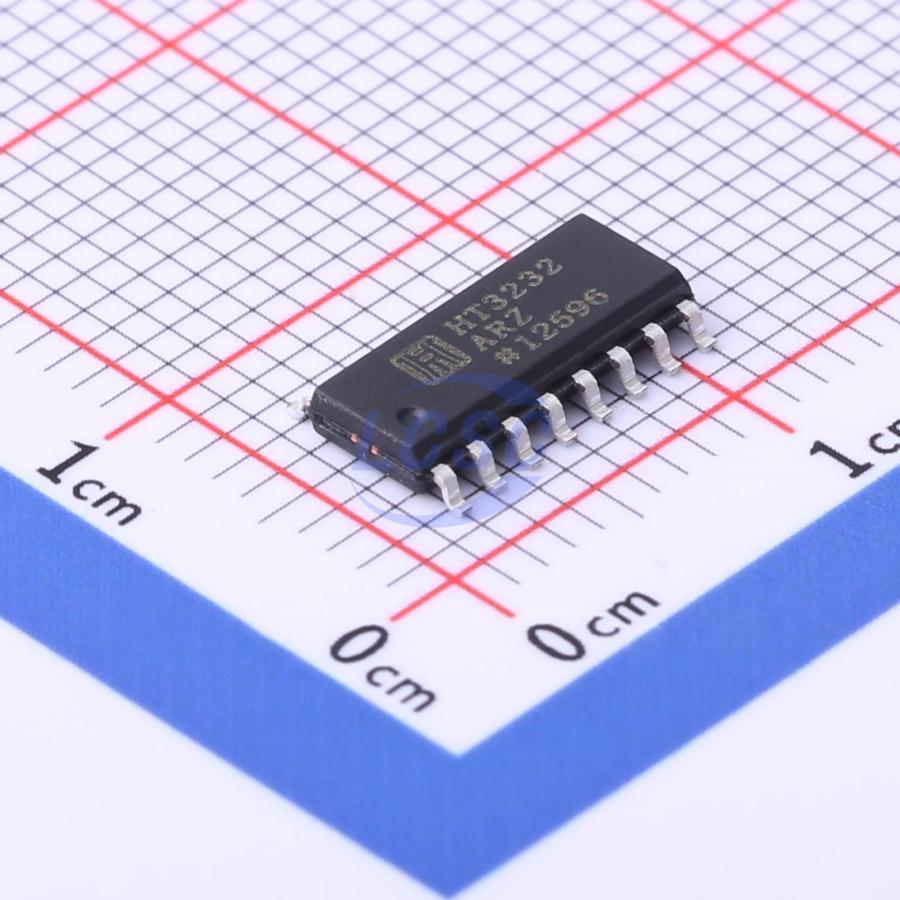

HT3232ARZ
Transceiver 3.3V~5.5V 120Kbps SOIC-16 Drivers, Receivers, Transceivers
SOIC-16RoHSActive
HT3232A RS-232 Transceiver
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT3232ARZ
- Store part #
- C2834438
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,369 in stock
#C2834438
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.18 | ₹60.18 |
| 10+ | ₹47.15 | ₹471.50 |
| 30+ | ₹41.50 | ₹1,245.00 |
| 100+ | ₹34.33 | ₹3,433.00 |
| 500+ | ₹31.29 | ₹15,645.00 |
| 1,000+ | ₹29.33 | ₹29,330.00 |
1 × ₹60.18
₹60.18
excl. GST
₹71.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT3232ARZ
₹60.18 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3.3V~5.5V
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 2.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.258 g
Overview
The HT3232 is a 3.3V powered EIA/TIA- 232 and V.28/V.24 communication interface with low power requirements, high data- rate capabilities. HT3232 has a proprietary low dropout transmitter output stage providing true RS- 232 performance from 3.3V to 5.5V supplies. The device requires only four small 0.1μF standard external capacitors for operations from 3.3V supply. The HT3232 has two receivers and two drivers. The device is guaranteed to run at data rates of 120Kbps while maintaining RS- 232 output levels. Typical applications are Notebook, Subnotebook and Palmtop Computers, Battery Powered Equipment, Hand- Held Equipment, Peripherals and Printers.
Applications
- Notebook
- Subnotebook and Palmtop Computers
- Battery Powered Equipment
- Hand- Held Equipment
- Peripherals and Printers
Key features
- 300μA SUPPLY CURRENT
- 120Kbps MAX GUARANTEED DATA RATE
- 3V/µs MINIMUM GUARANTEED SLEW RATE
- ENHANCED ESD SPECIFICATIONS: ±15kV IEC61000-4-2 Air Discharge, ±8kV IEC61000-4-2 Contact Discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT3232EBRZ#C5274833HTCSEMI · SOP-16 | HTCSEMI | SOP-16 | 968 | ₹63.07 · 968 in stock | View |
 | HT3232EERZ#C5274697HTCSEMI · SOP-16 | HTCSEMI | SOP-16 | 543 | ₹75.12 · 543 in stock | View |
 | HT3232EARZ#C5274698HTCSEMI · SOP-16 | HTCSEMI | SOP-16 | 1,781 | ₹52.38 · 1,781 in stock | View |
 | HT653232EARZ#C5857708HTCSEMI · SOP-16 | HTCSEMI | SOP-16 | 200 | ₹133.89 · 200 in stock | View |
 | HT13636ARZ#C5366658HTCSEMI · SOP-16 | HTCSEMI | SOP-16 | 198 | ₹74.93 · 198 in stock | View |
