Jiaxing Heroic Elec Tech

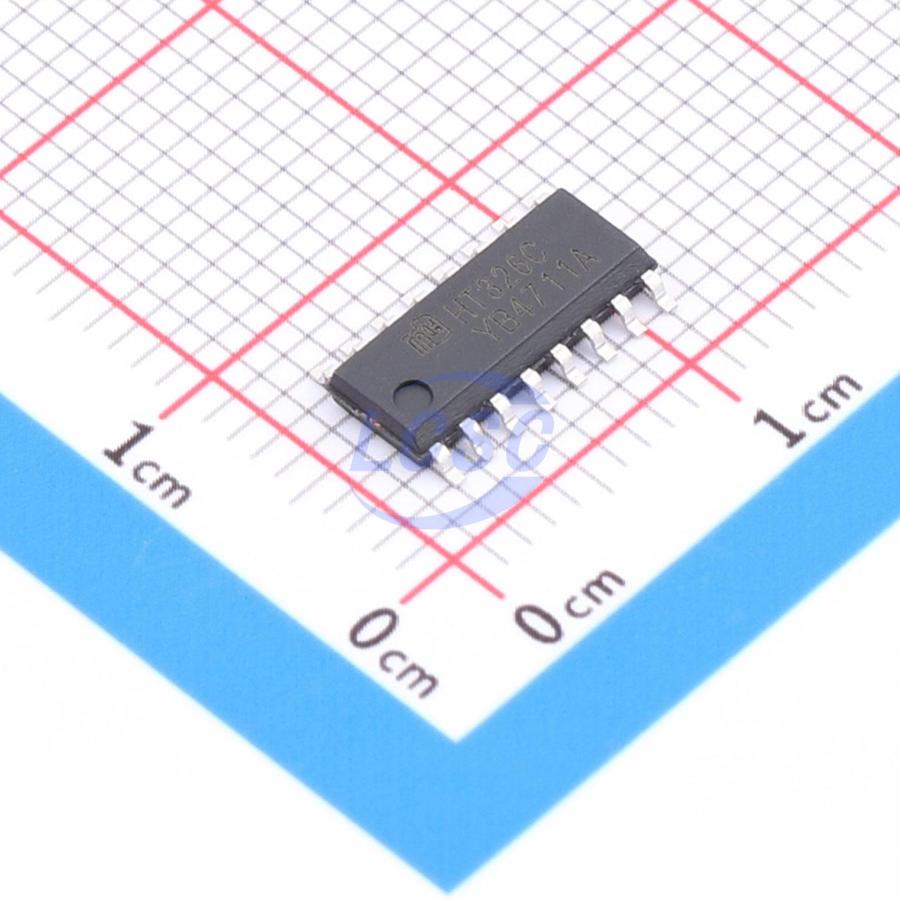

HT326CSPER

4.5V~22V 2-Channel Class D ESOP16 Audio Amplifiers

ESOP16RoHSActive

Manufacturer: Jiaxing Heroic Elec Tech
Manufacturer part #: HT326CSPER
Store part #: C52108876
Package / case: ESOP16
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,319 in stock

#C52108876

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹74.34	₹74.34
10+	₹60.21	₹602.10
30+	₹53.04	₹1,591.20
100+	₹46.08	₹4,608.00
500+	₹41.78	₹20,890.00
1,000+	₹39.73	₹39,730.00

Quantity (min 1)

1 × ₹74.34

₹74.34

excl. GST

₹87.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HT326CSPER

₹74.34 for 1 + GST

Specifications

Voltage - Supply: 4.5V~22V
Total Harmonic Distortion + Noise (THD+N): 1%
Features: Filterless architecture;Overvoltage protection;Enable/shutdown function
Operating Temperature: -40℃~+85℃
Number of Inputs: 2 Pairs Differential Inputs
Speaker Channels: 2-Channel
Output Power: 20Wx2@4Ω;33Wx2@8Ω
Efficiency: 90%
Class: Class D

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.275 g

Overview

HT326 is a stereo high-efficiency Class D audio amplifier capable of driving speakers up to 50W/4Ω in mono PBTL mode. In stereo BTL mode, it delivers 2×33W/8Ω power output. Its advanced spread-spectrum EMI suppression technology allows EMC requirements to be met using only low-cost ferrite bead filters, reducing overall system cost. The HT326 features comprehensive fault protection, including overvoltage, undervoltage, overtemperature, DC detection, and overcurrent protection, with fault status reporting to the processor to prevent device damage.

Applications

Soundbars
Wireless speakers
Consumer audio applications
TV/monitors
Portable speakers

Key features

2×20W (VDD=14.5V, RL=4Ω, THD+N=1%)
2×33W (VDD=22V, RL=8Ω, THD+N=10%)
50W (VDD=22V, RL=4Ω, THD+N=1%)
Output Power (BTL Mode)
Output Power (PBTL Mode)
Single-supply wide voltage range: 4.5V~22V
Efficiency > 90%
Differential/single-ended analog input, BTL or PBTL output
Gain: 32dB
Spread-spectrum switching frequency for filterless (inductor-free) operation
Integrated self-protection circuitry including OVP, UVLO, OTP, DC detection, and OCP with fault reporting
ESOP16 package (LF and HF versions)
Single-supply system, 4.5V~22V wide voltage input range
Over 90% efficiency, no heatsink required
Spread-spectrum, filterless (inductor-free) operation
Analog differential/single-ended input, selectable stereo/mono output mode
Protection features: OVP/OCP/OTP/UVLO, DC detection and short-circuit protection
Lead-free, halogen-free package, ESOP16
