HTCSEMIDatasheet (PDF)

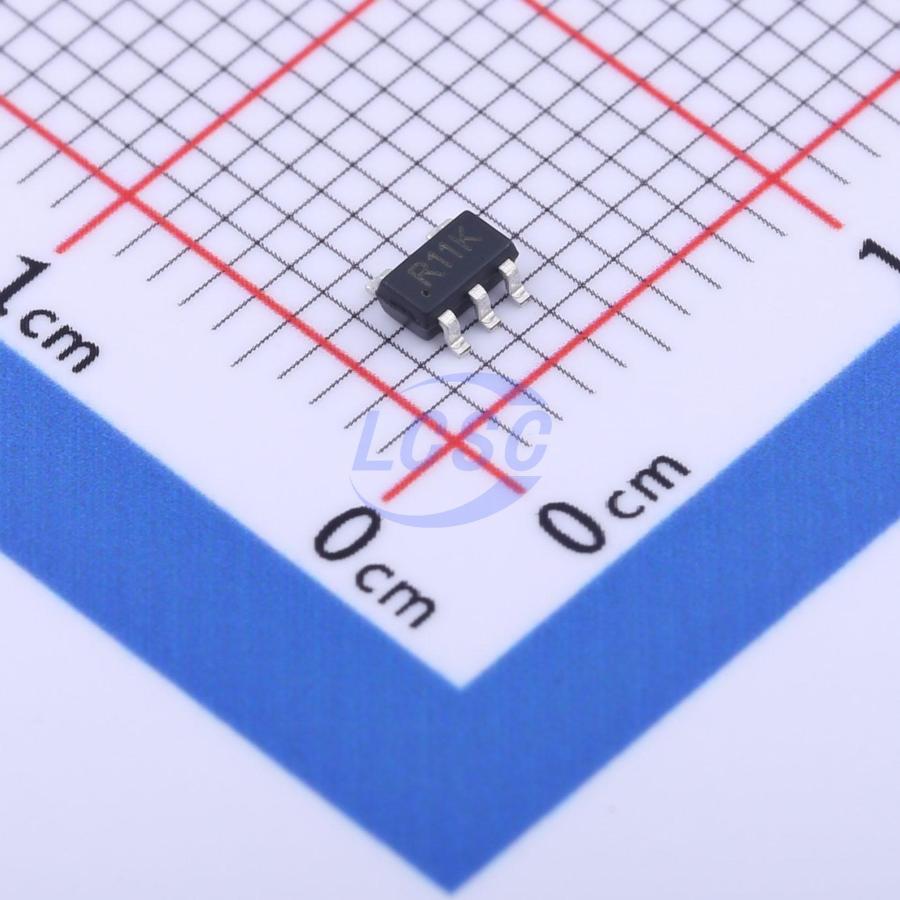

HT331VRTZ
Rail-to-rail output 150uV SOT-23-5 Linear Comparators
SOT-23-5RoHSActive
High speed rail to rail output comparator
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT331VRTZ
- Store part #
- C2834469
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,975 in stock
#C2834469
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.88 | ₹119.40 |
| 50+ | ₹18.96 | ₹948.00 |
| 150+ | ₹16.86 | ₹2,529.00 |
| 500+ | ₹14.22 | ₹7,110.00 |
| 3,000+ | ₹11.93 | ₹35,790.00 |
| 6,000+ | ₹11.23 | ₹67,380.00 |
5 × ₹23.88
₹119.40
excl. GST
₹140.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT331VRTZ
₹119.40 for 5 + GST
Specifications
- Features
- Built-in hysteresis
- Input Hysteresis Voltage (Vhys)
- 5mV
- Rail to Rail
- Rail-to-rail output
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 150uV
- Quiescent Current
- 200uA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 140ns
- Input Offset Voltage Drift(Vos TC)
- 4.7uV/℃
- Operating Temperature
- -40℃~+85℃
- Response Time (tr)
- 35ns
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.071 g
Overview
HT331V/393V is a high speed, low power dissipation comparator. It applies 140ns Propagation Delay at 100mV Overdrive voltage. HT331V/393V is DC coupled normally, and It includes internal hysteresis(5mV) to ensure clean output switch, the HYS voltage has a ultra-low temperature drift 5uV/℃. HT331V/393V consists of a high speed Class AB structure, which supports rail to rail output.
Applications
- High speed Line Receivers
- Threshold Detector /Discriminators
- Sampling Circuits
- IR Receivers
Key features
- 140ns propagation delay (@ 100mV Overdrive)
- Rail to Rail output, CMOS/TTL Compatible
- Internal Hysteresis to ensure clean switching
- DC coupled Input
- Offset voltage: +/-5mV Max.
- Low HYS voltage Temperature Drift: 5uV/°C
- 2.7~5.5V power supply Voltage
- Low quiescent current: 200uA
- Chip available in SOT23-5 Package
